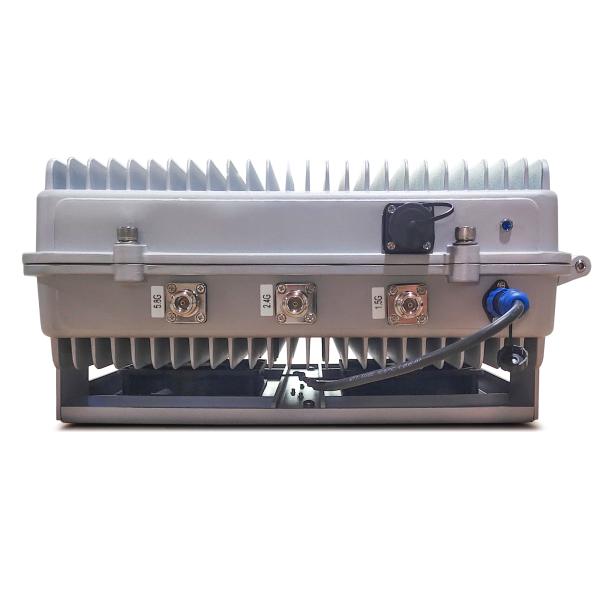

1500m 3 Bands High Power Anti Drone UAV Jammer with Omni Directional Antennas

Background
With the increasing popularity of drones, similar incidents are occurring frequently. More than 200 flights have been diverted, cancelled and delayed, affecting tens of thousands of passengers. Before that, Chengdu, Kunming Changshui and other airports have occurred drones to interfere with civil aviation flights.
We independently develops and produces UAV jammers, which can be interfered with all satellite positioning signals, including: GPS/ Beidou/Glonass/Galileo; At the same time, the ISM 2.4G and ISM 5.8G frequency bands commonly used by drones can be interfered with, forcing the UAV remote control, image transmission positioning, signal interruption, to achieve the function of forced landing/return/hover, the interference distance is far, and the open land is greater than 1500 meters.

Function and Advantages
1, independent research and development, production, reasonable price, sufficient power.
2. Cut off all signal contact between the drone and the controller. The drone remote control is out.
3. The ground controller of the drone cannot receive aerial videos and pictures.
4, the drone can not locate, forcing the drone to land, hover or return.
3. Technical parameters
1, Product name: waterproof, explosion-proof UAV control equipment
2. Product model: EST-750C3
3, power supply: external 220V AC
4. Operation mode: Navigation, remote control and picture transmission can be opened at will.
5, heat dissipation: air cooling
6, interception methods: forced return, forced landing, hovering, map transmission interference
7, intercept channel: three channels
8. Navigation system control: BD1, GPS-L1, Galileo-E1, E2, GLONASS-L1
9, support frequency band: satellite navigation GPS-1.5G: 1550~1650MHz; ISM-2.4G: 2400MHz~2500MHz; ISM-5.8G: 5725 to 5850MHz.
10, RF power: GPS-1.5G: ≥100W; ISM-2.4G: ≥100W; ISM-5.8G: ≥30W
11, antenna: omnidirectional antenna, GPS-1.5G: 9dBi; ISM-2.4G: 9dBi; ISM-5.8G: 9dBi

12. Antenna length: 1.2m
13. Coverage:
a) Azimuth coverage: 0° ~ 360°;
b) Pitch coverage: -20° ~ 60°;
c) Height coverage: 0 ~ 500m;
d) Control distance: visible environment ≥1000 meters.
14, working environment temperature: -20℃ ~ +60℃;
15, rain prevention: under the environmental conditions of rainfall not more than 0.7 mm/min, it should be able to be used normally;
16, Weight: host about 20Kg
17, the device can be optional remote control, the interface is a network port
The hardware equipment, equipment nameplate, operating software and product packaging provided by Party B shall be neutral

Customization:
Customized Anti Drone UAV Jammer Service
Our customized Anti Drone UAV Jammer service offers you a wide range of features and functions to block UAVs communication, including GPS, WIFI, GSM, remote control and etc. With a jamming range of up to 1500m, our drone interference blocker device is designed with 3pcs omni directional antenna and small compact size, ideal for stopping unwanted signal interference.

Packing and Shipping:
Anti Drone UAV Signal Jammer is shipped in a cardboard box or wooden case for maximum protection. The product is securely packed and labeled to ensure fast and accurate delivery.
