Cell Phone Signal Remote Control Jammer EST-502C8 12W 8 Omni Directional Antennas
Cell Phone Signal Remote Control Jammer EST-502C8 12W 8 Omni Directional Antennas
Cell Phone Signal Remote Control Jammer EST-502C8 12W 8 Omni Directional Antennas
Cell Phone Signal Remote Control Jammer EST-502C8 12W 8 Omni Directional Antennas
Cell Phone Signal Remote Control Jammer EST-502C8 12W 8 Omni Directional Antennas
Cell Phone Signal Remote Control Jammer EST-502C8 12W 8 Omni Directional Antennas
Cell Phone Signal Remote Control Jammer EST-502C8 12W 8 Omni Directional Antennas
Cell Phone Signal Remote Control Jammer EST-502C8 12W 8 Omni Directional Antennas
Cell Phone Signal Remote Control Jammer EST-502C8 12W 8 Omni Directional Antennas
Cell Phone Signal Remote Control Jammer EST-502C8 12W 8 Omni Directional Antennas
Specifications
Brand Name :
EST
Model Number :
EST-502C8
Certification :
CE, RoHS
Place of Origin :
Guangdong, China
MOQ :
1 piece
Payment Terms :
Paypal, Western Union, T/T
Delivery Time :
5-10 working days after received the full payment
Packaging Details :
1 pcs gift box for one device, neutral packing
Supply Ability :
10000 sets per month
Jamming Range :
1-25M
Antenna :
8 omni-directional antennas
Working Bandwidth(MHz) :
8 bands including GSM,DCS,3G,CDMA,WIFI,4G,GPS
Working Power :
Input: AC 220V / Output: DC 5V 15A
Single Output Power :
+33dBm / 2W+/-200mW
Power Consume :
16W
Weight :
3.2KG
Dimension :
340(L)×170(W)×55(H)mm, not include antenna
Function :
GSM,DCS,3G,CDMA,WIFI,4G,GPS Jammer
Warranty :
12 months
Description

12W Black 8 Omni-directional Antenna Adjustable Remote Control Blocker Compact Indoor Cell Phone Signal Jammer EST-502C8

1. Product Specification


1st Channel: GSM 900: 925-960MHz
2nd Channel: DCS 1800: 1805-1880MHz
3rd Channel: 3G: 2110-2170MHz
4th Channel: CDMA 800: 870-885MHz
5th Channel: Bluetooth&Wi-Fi: 2400-2500MHz
6th Channel: 4G LTE 700: 725-770MHz
7th Channel: 4G LTE 2600: 2620-2690MHz
8th Channel: GPS 1500-1600MHZ

Product Name: 12W Black 8 Omni-directional Antenna Adjustable Remote Control Blocker Compact Indoor Cell Phone Signal Jammer EST-502C8
Model No.: EST-502C8
Color: Black
MOQ: 1 piece
Antenna:

8 omni-directional antennas

Transmitting Antenna Gain: >=3dbi

VSWR of the Antenna: <=2 over the entire frequency band
Jamming Range:

Adjustable Radius 1-25M【the Cellular signal must ≤-85dBm in the location】

The jamming radius still depends on the strength signal in given area
Available System:

Include analog (AMPS,TACS,NMT) and digital (GPRS,GSM,3G,DCS,CDMA,PDC,TDMA,PHS, PCS, IDEN,W-CDMA,UMTS, Wifi / Blue Tooth/wireless video,4G)
Single Output Power:

+33dBm / 2W+/-200mW
Total Output Power:

16W
Working Power:

Input: AC 220V / Output: DC 5V 15A
Dimension:

340(L)×170(W)×55(H)mm not include antenna
Weight: 3.2kg
OEM: Available
Logo Printing: Available if the order quantity is large enough.
Packing: 1 pcs gift box for one device, neutral packing
Working Temperature:

-40℃ ~ +55℃
Relative Humility: ≤90%(RH)
Air Pressure: 86~106kPa
Safety Regulation: AC Adapter UL (E190582) / CSA (LR112971 Level 3)

2. Application

1). School, exam room, bank, conference room, auditoriums, law court, library, cinema, theater, and hospital etc.

2). At places where using mobile phones is prohibited such as government, military, finance, security, police and command center etc.

Cell Phone Signal Remote Control Jammer EST-502C8 12W 8 Omni Directional Antennas

3. Packing List

1). Multi functional signal jammer(main unit) 1 piece

2). Antenna 1set (8 pieces)

3). Power adaptor(AC plug) 1 piece

4). User’s manual(depend on customer choice) 1 piece

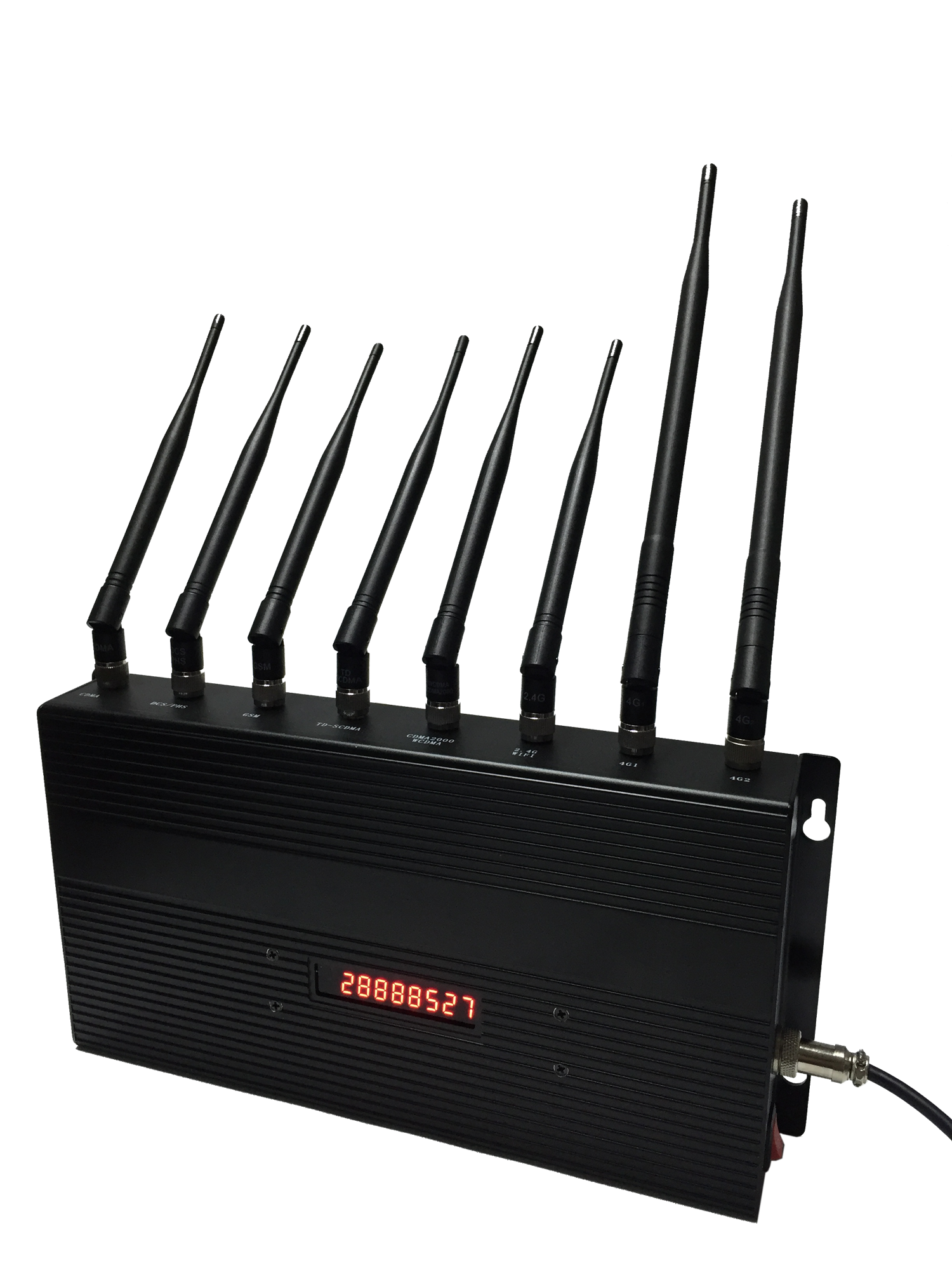

4. Product Photos

Cell Phone Signal Remote Control Jammer EST-502C8 12W 8 Omni Directional Antennas

Cell Phone Signal Remote Control Jammer EST-502C8 12W 8 Omni Directional Antennas

Cell Phone Signal Remote Control Jammer EST-502C8 12W 8 Omni Directional Antennas

Cell Phone Signal Remote Control Jammer EST-502C8 12W 8 Omni Directional Antennas

Cell Phone Signal Remote Control Jammer EST-502C8 12W 8 Omni Directional Antennas
