Full Frequency Cell Phone Signal Jammer Built In Antennas For 2G 3G 4G 5G
Full Frequency Cell Phone Signal Jammer Built In Antennas For 2G 3G 4G 5G
Full Frequency Cell Phone Signal Jammer Built In Antennas For 2G 3G 4G 5G
Full Frequency Cell Phone Signal Jammer Built In Antennas For 2G 3G 4G 5G
Full Frequency Cell Phone Signal Jammer Built In Antennas For 2G 3G 4G 5G
Full Frequency Cell Phone Signal Jammer Built In Antennas For 2G 3G 4G 5G
Specifications
Brand Name :
EST
Model Number :
EST-502K10
Certification :
CE, RoHS
Place of Origin :
Guangdong, China
MOQ :
1 piece
Payment Terms :
Western Union, T/T, Paypal
Supply Ability :
10000 pcs per month
Delivery Time :
5-10 working days after received the full payment
Packaging Details :
1 pcs gift box for one device, neutral packing
Maximum output power :
≥33dBm (2W)
Power supplier :
220VAC--5VDC/20A
Weight (main unit) :
4.3KG
Power consumption :
≤85W
Relative humidity :
≤85%
Working temperature :
-30℃ to 60℃
Dimension :
400(L)*300(W)*130(H)mm
Gain :
≥7dBi
Description

EST-502K10 Cell Phone Signal Jammer for 2G 3G 4G 5G Built-in Antennas

1. Introduction

EST-502K10 full frequency signal jammer, adopted with advanced communication technology, is able to block mobile phone signal within 1-15 meters radius. Suitable for organization and personnel require for information protection and high confidentiality demand.

2. Technology

Frequency Range (customized available) 1.CDMA 870-880
2.DCS/PHS 1805-1920
3. GSM 930-960
4. TDSCDMA 2010-2025
5. CDMA2000, WCDMA 2110-2170
6. 4G1 2300-2400
7. WIFI 2400-2485
8. 4G2 2555-2655
9. 5G1 3400-3600
10. 5G2 4800-5000
Maximum output power ≥33dBm (2W)
Power supplier 220VAC--5VDC/20A
Power consumption ≤85W
Relative humidity ≤85%
Working temperature -30℃ to 60℃
Dimension 400(L)*300(W)*130(H)mm
Antennas Built-in directional antennas
Gain ≥7dBi
Weight (main unit) 4.3KG
Maintenance Chemical solvents is prohibited, but wet rag available, needs no special maintenance

3. Features

(1) Wide blocking range, is able to block most of mobile phone signal and WIFI signal.

(2) Excellent cooling system, aluminum heat assumption plate, built-in cooling fans.

(3) High gain built-in antennas, each band output power 2W.

4. Application situation

Conference room, theater, exam room, jail, temple, residential area, etc. Any places where mobile phone using is prohibited or unwanted, also for organization and personnel who require for information security.

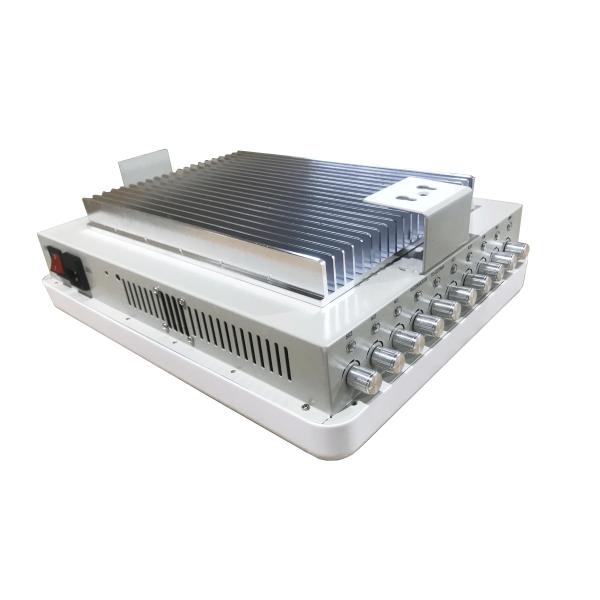

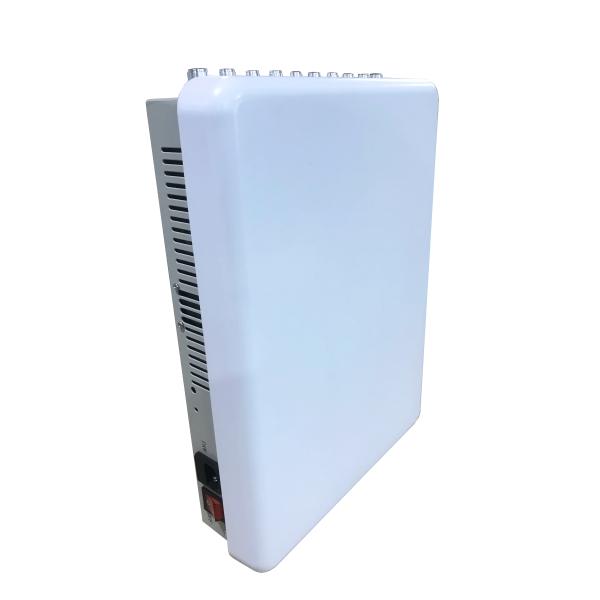

5. Product pictures

Full Frequency Cell Phone Signal Jammer Built In Antennas For 2G 3G 4G 5GFull Frequency Cell Phone Signal Jammer Built In Antennas For 2G 3G 4G 5G

Full Frequency Cell Phone Signal Jammer Built In Antennas For 2G 3G 4G 5G

6. Packing list

(1) EST-502K10 main unit 1pc

(2) AC adaptor 1pc

(3) User manual (optional) 1pc
