1KM Drone jammer UAV420Pro.pdf
2021 Latest Upgraded Version Best Selling 4 Channels Portable Drone Jammer UAV Interceptor

Portable light drone jammer UAV420Pro, Built-in high gain directional antenna, Built-in 4 sets of independently operated RF working unit, can be choose to on/off GPS to drive the drone or force the drone to land, can be transmit shielding interference signals to the surrounding 45 degree angle, Coverage (800-1000) m can be comprehensive and stable uninterrupted shielding of the 900MHz, GPS, 2.4G and 5.8G bands in the UAV frequency band, The data transmission of all target frequency bands within the range can be terminated within a few seconds after the device is started. The exterior of the product is a high-strength nylon casing, the casing does not deform within 150℃, sturdy and durable. The shielding effect is stable and reliable, Small size, Easy to store and transport.

Application scenario: meeting room, office, workshop, classroom, examination room, parking lot.

1. Technology

 Type: anti-drone device / portable drone jammer / handheld civilian drone interceptor Material: High-strength ABS Antenna: Built-in high gain directional antennas(Gain: 10dBi)  Frequency Band & Output Power(can be customized): CH1(2.4G WiFi): 2400-2500MHz--------------------------- 42dBm / 15W; CH2(5.8G WiFi) 5715-5860MHz---------------------------- 40dBm / 10W; CH3(GPS L1): 1550-1630MHz------------------------------- 40dBm / 10W; CH4(RC868/915, optional): 868-915MHz------------------ 42dBm / 15W;  Shielding Distance: ≥1000 m Built-in removable 29.5V/6000mAh lithium battery, can continuously work for 1-2 hours on a full charge Power Supply(Charger): AC / DC adapter(Input: AC100V-240V; Output: DC28V/6.2A) / DC29.5V/5A external  emergency power. Operation Method: switch on, then keep aiming at the drone, then the drone will land or return home (according  to the drone setting program).  Product Size: 435*200*75 mm Product Weight: 3.5kg(including battery) Environment temperature(-20 ～ +55)℃ Relative humidity: ≤85 %RH

 Product Name:

 2021 Latest Upgraded Version Best Selling 3/4-channel Portable Drone Jammer UAV Interceptor

 Model No.:

 Color:

 Matt Black

 Material:

 High-strength ABS

 Antenna:

 Built-in directional antenna

 Total Output Power:

 35W / 50W (optional 3/4 Channels)

 Shielding Distance:

 ≥1000 m

 Battery Type:

 Built-in removable 29.5V/6000mAh lithium battery, can continuously work for 1-2 hours  on a full charge(3 channels)

 Power Supply(Charger):

 AC charger(Input: AC100V-240V; Output: DC28V/6.2A), or DC29.5V/5A external  emergency power;

 Product Size:

 435*200*75 mm

 Package Size:

 580*420*230 mm

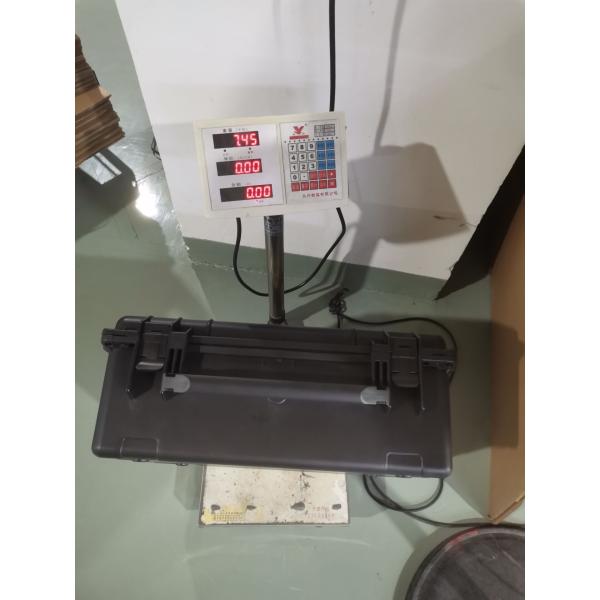

 Product Weight:

 3.5kg (including battery)

 Working Temperature:

 -40℃ ~ +55℃

 Relative Humility:

 ≤90%(RH)

 Air Pressure:

 86~106kPa

 Safety Regulation:

 AC Adapter UL (E190582) / CSA (LR112971 Level 3)

2. Features

1.GPS can be switched on and off to meet the drive and force the drone to land.

2.It can work continuously in a variety of complex environments, when the equipment fully charged, can working for more than 50 minutes.

3.Smart chip, shielding all kinds of wireless signals.

4.The display can choose to display the power and voltage, and the customer can switch according to their requirements.

5.High-gain antenna, the jamming range is farther, the shielding effect is better, and the built-in antenna is neat and tidy.

6.High-strength plastic material, good wear resistance, good ventilation and ventilation effect.

7.Built-in high-power fan, good heat dissipation and more stable working performance.

 3. Application Place  *Big event, major sports event, concert, large gathering, border patrol, airport, army, counter-terrorism unit, SWAT,  detention center, power plant, gas station, oil refinery, mining area, sensitive facility, private territory, president  selection, speech, etc.  *Other places where flying civilian drones(eg. DJI drones) is prohibited such as critical infrastructure, government,  military, finance, security, police and command center.

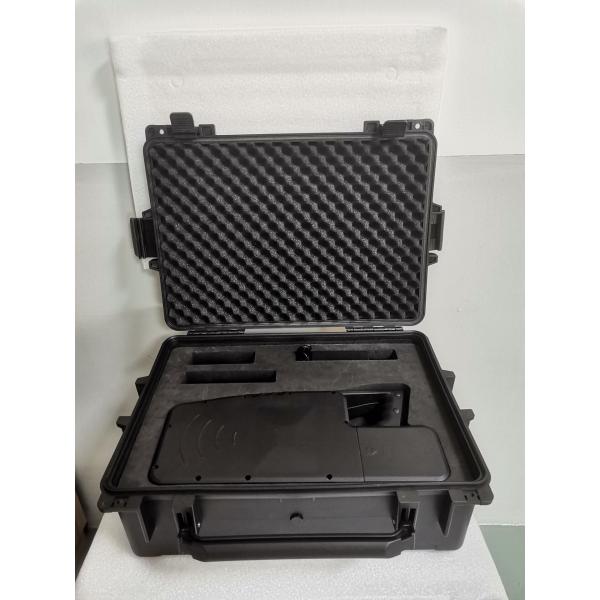

 4. Packing List  1). Portable drone jammer main unit-----------------------1 piece  2). Battery---------------------------------------------------------1 piece  3). Power cord----------------------------------------------------1 piece

 4). Power adapter------------------------------------------------1 piece  5). PP suitcase ---------------------------------------------------1 piece

 6). User manual --------------------------------------------------1 piece  7). Warranty card-------------------------------------------------1 piece

 5. Product Photos

For more details, please contact me via whatsapp +86 134 1856 8064 or email address amy@szeastlonge.com / alina1013@foxmail.com, welcome your inquiries, OEM is acceptable, thank you!
