Specifications
Place of Origin :
china
Brand Name :
EWIN and OEM
Certification :
CE ROHS
Model Number :
EW-TL-COB-40W-WW
MOQ :
10PCS
Price :
65-80/pices
Packaging Details :
card box with EPE Cotton protected; Box for each lamp:295*130*250mm; 6 pcs in one carton;size of car
Delivery Time :
5-8 days
Payment Terms :
T/T,Western Union,MoneyGram,Cash
Supply Ability :
1000PCS/Day
Light Source: :
LED
Item Type: :
Track Lights
LED Light Source: :
COB
Warranty(Years): :
3
Input Voltage(V): :
100-277
Lamp Power(W): :
46
Lamp Luminous Flux(lm): :
3400-4000
Lamp Luminous Efficiency(lm/w): :
120
CRI (Ra>): :
82
Color Temperature(CCT): :
2000-7000K
Working Temperature(℃): :
-45 - 45
Working Lifetime(Hour): :
50000
Lamp Body Material: :
Aluminum Alloy
Certification: :
C-tick, EMC, FCC, LVD, RoHS, SAA, SASO
Base Type: :
2-way, 3-way, 4-way
Application: :
Shop window
Power Brand: :
Lifud
Power Efficiency: :
87%
Color of housing: :
Black,white,silver
Description

Barber Shops Clothes Shops 20w 30w 40w 1-phase 3-phase Dimmable LED Track

Specifications

1)Driver brand: Lifud
2)High output: 3400-4000lm
3)Brand: Epistar
4)PCB: Ceramic
5)Waranty: 3 years

Specifications:

1.Output: 3400-4000lm.
2.CRI: 82.
3.Beam Angle: 30, 60.
4.Connection: 2-way, 3-way, 4-way.
5.Certificate: CE/RoHS/

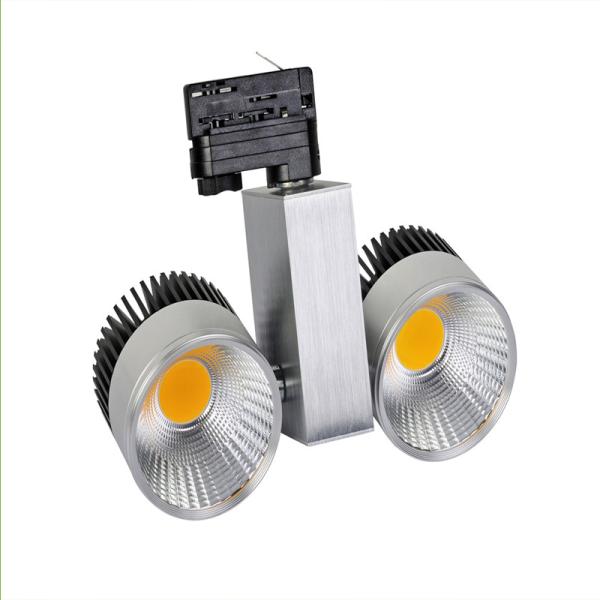

40W COB LED Track lighting

Products Features:
(1)LED Power: 2*20W.
(2)Lamp Consumption:46W.
(3)Output: 3400-4000lm.
(4)Input voltage:100-277v AC, 50-60hz
(5)Beam Angle:30°/60°
(6)CRI:> 82.
(7)Working Temperature:-40°C-45°C.
(8)Storage Temperature: -25°C-65°C.
(9)Color of housing: white, black, silver.
(10)Track connecotr: 2-way, 3-way, 4-way available.
(11)Life span: 50,000+hrs.
(12)Certificate: CE/RoHS/
(13)Warranty: 3 years.

COB Parameter(total 2 pcs):
(1)PCB: Ceramic.
(2)Chip Brand: Epistar 10*23.
(3)Power: 20W*2

(4)Chip Qty: 320 pcs*2.
(5)CRI> 82.
(6)Voltage:30-32vDC
(7)Current: 650-700mA.


Driver Parameter total 2 pcs):
(1)Brand: Lifud (LED Friend).
(2)Input:100-277v AC.
(3)Output: 27-42vDC, 700mA.
(4)Power effect: 0.9-0.97.
(5)Power Efficiency: 87%
(6)Certificate:CE/TUV/UL/CQC/SAA

Dimmable: Triac or Dali is available.
Meanwell PLD-25-700 is optional.

Product Datasheet:

Part No.

Color

CCT

Output

EW-TL-COB2*20W-WW

warm white

2800-3200k

3300-3500lm

EW-TL-COB-2*20W-NW

natural white

4000-4500k

3700-3800lm

EW-TL-COB-2*20W-CW

cool white

6000-6500k

3800-4000lm

Dimension:

Barber Shops Clothes Shops 20w 30w 40w 1-phase 3-phase Dimmable LED TrackBarber Shops Clothes Shops 20w 30w 40w 1-phase 3-phase Dimmable LED Track

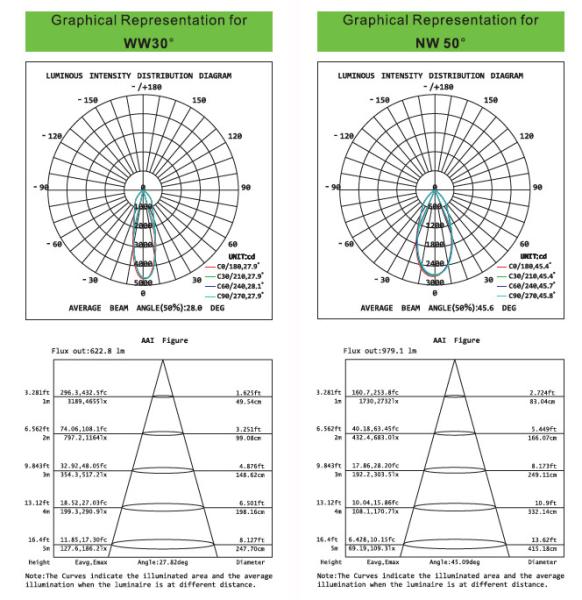

IES Test:(please contact us to get the IES file): Barber Shops Clothes Shops 20w 30w 40w 1-phase 3-phase Dimmable LED Track Barber Shops Clothes Shops 20w 30w 40w 1-phase 3-phase Dimmable LED Track


Packing:

Barber Shops Clothes Shops 20w 30w 40w 1-phase 3-phase Dimmable LED Track

More Pictures:

Barber Shops Clothes Shops 20w 30w 40w 1-phase 3-phase Dimmable LED TrackBarber Shops Clothes Shops 20w 30w 40w 1-phase 3-phase Dimmable LED TrackBarber Shops Clothes Shops 20w 30w 40w 1-phase 3-phase Dimmable LED TrackBarber Shops Clothes Shops 20w 30w 40w 1-phase 3-phase Dimmable LED Track
