Specifications
Brand Name :
EWIN
Model Number :
EW-RGB-EW-220V
Certification :
CE ROHS
Place of Origin :
china
MOQ :
50 Meter
Price :
5-40
Packaging Details :
Netrual
Delivery Time :
7-10day after receiving your payment
Payment Terms :
T/T,Western Union,Paypal
Supply Ability :
50,000 Piece/Pieces per Month
Color :
Blue
Material :
PVC
Coating :
Double
Shape :
D
Gas Type :
Ne
Input Voltage :
220v
Lamp Power: :
6.5
Lamp Luminous :
105
CRI (Ra>): :
80
IP Rating: :
IP65
LED Qty: :
60leds/Meter -120leds/Meter
Size: :
8*16mm / 14*26mm
PVC Color: :
white (other color are also supplied) Application: Shopping Malls/Exhibition Halls/Building/
Description

High quality AC220V smd5050 rgb 60leds/m diameter 25mmLed neon flex strip light ip68

LED Flexible Neon Light (Red Color)

Product Description

LED Flexible Neon Light Single Color Regular Type

Features:
*Consistent and stringent wavelength control standards +/_3nm
*Ultra-bright & Low Light attenuation LEDs
*Milky white diffuser
*White PVC base edge to increase luminosity
*100% unbreakable
*100% waterproof
*Low heat
*Low maintenance coat
*1/10 the energy consumption of glass neon
*Fully enclosed electronics: No exposed glass tubing as with neon
*Environmental protection
*Work temperature: -20 C ~ 60 C

The LED could be Red(R), Blue(B), Yellow(Y), Green(G), Orange(O), Cool White(CW), Warm White(WW), Pink(PK), Purple(PE), Amber(A)

LED Flexible Neon Light Introduction
LED Flexible Neon Light is a kind of light composed of solid-state Light Emitting Diodes(LEDs) in series and jacketed By an inner plastic extrusion core. An UV stable outer plastic jacket further protects the inner core. The plastic jacket Could be transparent, opalescent, semi-transparent or transparent color. And the LED could be Red, Orange, Blue, Yellow, Green, Amber, White, pink and purple etc. Based on our patented technology, we produce the LED Flexible Neon Light with A continuously color linear effect as well as Glass Neon or even much better effect when using RGB MULTI-COLOR LED Flexible Neon Light.
Though Glass Neon has long been the mainstream of the outdoors linear lighting, it is also known for its technical Weaknesses, including complicated installation, fragile glass nature, potential shockhazard, high maintenance cost and high Power consumption. With over many years advanced LED technological research and rich experience in most production, We have developed LED Flexible Neon Light to replace glass neon. Compared with glass neon, it is easier to cut and it is Flexible can be bent into whatever angles by hand. Installation can be within minutes and most important, it gives No hot spot on appearance.

Specifications:
Item No. EW-230V EW-120V EW-24V EW-12V
LED color R, A, O B, G, CW, WW, Y PK, PE R, A, O B, G, CW, WW, Y PK, PE R, A, O B, G, CW, WW, Y PK, PE R, A, O B, G, CW, WW, Y PK, PE
Length per roll in Meters 50 50 50 50 50 50 50 50 50 50 50 50
Size(mm) 16x28 16x28 16x28 16x28 16x28 16x28 16x28 16x28 16x28 16x28 16x28 16x28
LED spacing(mm) 12.5 12.5 12.5 12.5 12.5 12.5 12.5 12.5 12.5 12.5 12.5 12.5
LED quantity per meter 80 80 80 80 80 80 80 80 80 80 80 80
Cutting Unit length(mm) 1250 900 400 600 450 250 125 75 50 62.5 37.5 25
LED quantity per unit 100 72 32 48 36 20 10 6 4 5 3 2
Power consumption per unit 4.2W 3.9W 3.9W 2.2W 2W 2W 0.45W 0.4W 0.4W 0.22W 0.2W 0.2W
Total units 36 50 112 75 100 180 192 320 480 384 640 960
Max Loading Length(meter) 295 225 100 141 112 62 29 18 12 14 9 6
Product Description

Specification for Led Neon Strip Light 110v 220v:

Emitting Color:RED/GREEN/BLUE/YELLOW/WHITE

Product Size:8*16mm(For single color),14*26mm(For RGB)

LED QTY : 60leds /Meter,120leds /Meter for single color, strip ,60leds /Meter for RGB strip

Width of Board:6mm /10mm

Power:6.5W/Meter

Packing :50 meter/Roll

Led Chip: SMD2835/SMD5050

Voltage: DC12V/DC24V/AC110V/AC220V

Features

  • 50000 hours Long life-span
  • Solid LED neon flex, solid inside
  • Energy efficiency: Low-power, low heat
  • Flexible, easy to bend ,easy to install and maintain
  • Environment friendly, water-proof and anti-ultraviolet,100% unbreakable
  • Durable , Low maintenance costs
  • High quality PCB material, thicker than most products in the market.

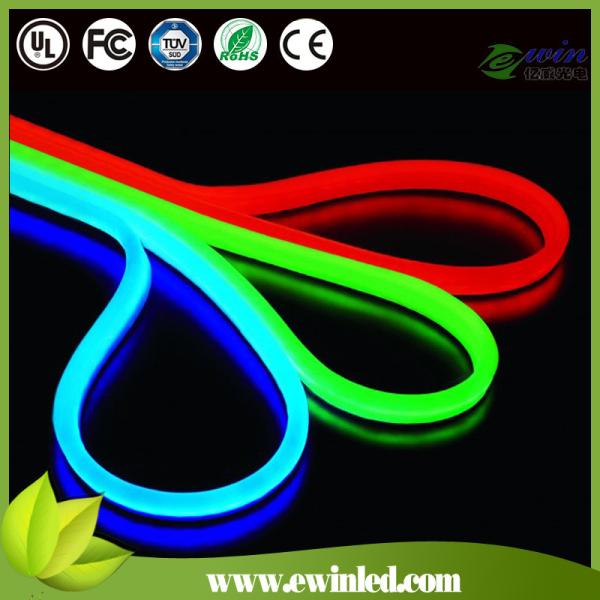

Images show

High quality AC220V smd5050 rgb 60leds/m diameter 25mm Led neon flex strip light ip68 (Red Color)

Application

  • Hotel,restaurant.
  • Schools, shopmall,supermarkets.
  • Architecture,building construction.
  • Colorful lightings where are in need for better color effects.
