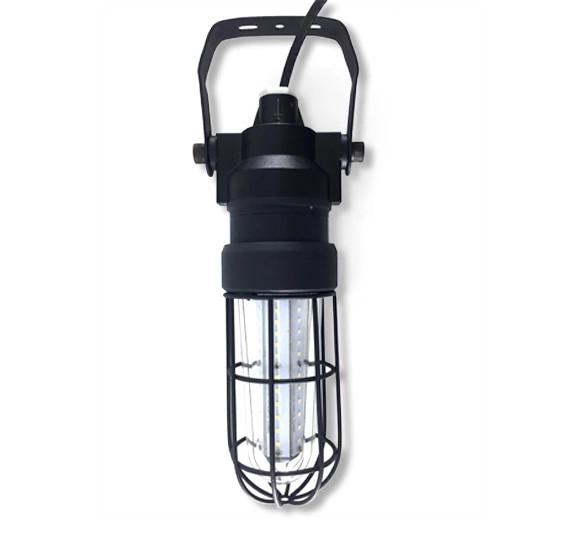

Portable LED Explosion Proof Work Light for Class I Div 1 & 2 Hazardous Areas
Portable LED Explosion Proof Work Light for Class I Div 1 & 2 Hazardous Areas
Portable LED Explosion Proof Work Light for Class I Div 1 & 2 Hazardous Areas
Portable LED Explosion Proof Work Light for Class I Div 1 & 2 Hazardous Areas
Portable LED Explosion Proof Work Light for Class I Div 1 & 2 Hazardous Areas
Portable LED Explosion Proof Work Light for Class I Div 1 & 2 Hazardous Areas
Portable LED Explosion Proof Work Light for Class I Div 1 & 2 Hazardous Areas
Portable LED Explosion Proof Work Light for Class I Div 1 & 2 Hazardous Areas
Portable LED Explosion Proof Work Light for Class I Div 1 & 2 Hazardous Areas
Portable LED Explosion Proof Work Light for Class I Div 1 & 2 Hazardous Areas
Specifications
Place of Origin :
china
Brand Name :
CESP
Certification :
CCC, CE, RoHS, SAA, UL
Model Number :
CES-SC
MOQ :
10PCS
Price :
$134-$140
Packaging Details :
one packed in a carton,10X10X55.4 cm
Delivery Time :
7-10workdays after receiving your payment
Payment Terms :
T/T, Western Union, MoneyGram
Supply Ability :
50, 00PCS/Month
Product Name: :
Explosion Proof Lighting Fixture
Lamp Luminous Efficiency(lm/w): :
IP66
Lifetime: :
50000 Hours
Color Temperature(CCT): :
-40 - 50
Color: :
Black, Yellow
Net Weight: :
2.5kg
Power: :
30W
Housing Color: :
-40 - 50
Housing :
Heavy duty copper free aluminum alloy housing, ABS+PC handl
Input Voltage: :
AC120-277V(50/60Hz) or DC12-24V
Light Source: :
LED
Certification: :
CCC, CE, GS, RoHS, SAA, UL
Beam angle: :
180 360 Degree
Working temperature: :
-30 - 45
Base Material: :
Ex d IIB T6 Gb/Ex tb IIIC T85°C Db
Housing material: :
Class I Div 1 Hazarous Areas
IK Rate: :
IK10
Driver: :
Meanwell HLG
Description

C1D1 Hazlo Explosion Proof LED Search Light with Rechargeable function for Outdoor Indoor

These CESP CES-SC hazardous area LED work lights is UL approved Class 1 Division1 Groups A,B,C and D - UL844 listed and ideal for close quarter work and inspection activities in moisture, dirt, corrosion and vibration hazardous locations requiring explosion proof protection.

Portable LED Explosion Proof Work Light for Class I Div 1 & 2 Hazardous Areas

Certification standards

  • UL844 – Class I Division 1&2 Group A.B.C.D
  • IEC/ATEX Standard
  • Ex d IIB T6 Gb/Ex tb IIIC T85°C Db
  • Zone 1, Zone 21, Zone 2, Zone 22

Description

  • Best-in-class system efficacy - Up to 3000lm,Instant on/off operation
  • Universal Voltage:AC120-277V(50/60Hz)/DC12-24V(Emergency Mode Run time:3hours available)
  • Wide ambient temp. range from - 40°C to + 50 °C ( -40°F ~ + 122°F)
  • Safe and reliable heat transfer - Offering a T-rating of T3C (CID2) / T4A (CIID1)
  • Rugged fabricated steel and cast aluminum construction.
  • Shock-and vibration-resistant - Durable LED with solderless board connection
  • Rugged fabricated steel and cast aluminum construction and Copper-free aluminum body ,corrosion resistant, tempered glass lens prevent shattering
  • All exposed fasteners with high quality stainless steel
  • Thermal shock and impact resistant tempered glass lens
  • Slim and compact design, Swivel hook for hanging and hands free operation
  • Explosion proof cord

Emergency Function

Portable LED Explosion Proof Work Light for Class I Div 1 & 2 Hazardous AreasPortable LED Explosion Proof Work Light for Class I Div 1 & 2 Hazardous Areas

Application

  • Oil refinery tank/Loading Docks / Platforms / Shipyards
  • Chemical Processing Facility
  • Petrochemical Processing Facility

Single Lamp Parameters

Items CES-SC
Rated Power 30W
Input Voltage AC120-277V(50/60Hz) or DC12-24V(Emergency Mode Run time:3 hours)
Input Frequency 50/60Hz
Power Factor ≥0.95
Surge Protection 1.5kv
Lumen 3000lm( 100lm/per watt)
Beam Angle 180°/360°
Correlated Color Temperature (CCT) 5000K
Color Rendering Index (CRI) >73
Ambient Operating Humidity 5%~95% RH
Ambient Operating Temperature -40°C ~+50°C/ - 40°F~+122°F
OptimalOperating Temperature 25°C (77°F)
T-Code

CID1: T6

CID2, CIID2: T4A
Housing Material Heavy duty copper free aluminum alloy housing, ABS+PC handle
Lens Material 10mm
Mounting Opitional Portable or hanging tandem installation
IP Rate IP66
IK Rate IK10
Dimension and N.W. 100*554mm, 2.5KG
Packing and G.W. 650*160*140mm, 3KG(one packed in a carton)

Installation

Portable LED Explosion Proof Work Light for Class I Div 1 & 2 Hazardous Areas

CESP Strive to High Quality Patent Product in Military & Industry Areas, is the Largest OEM/ODM Supplier for Explosion Proof Lighting Solution of China and the 1st Company in China to Be Certify for Hazardous Location LED Lighting Fixture By UL & CUL. Existing Products with Complete Certification, Including UL, CUL, DLC, ETL, CETL, CNEX, CE, ROHS, ATEX, SAA, C-TICK , Ect.

Abundant Financial and Exquisite Technology is to Providing Technical Services and Complete Security Solutions, Free R&D and Free Technical Services, Quickly Response that Just Only 15 Days to Design, 30 Days to Die Sinking, 1 Month Can be Done for Class I Div 2 Certification, 3 Month Can be Done for Class I Div 1 Certification.
