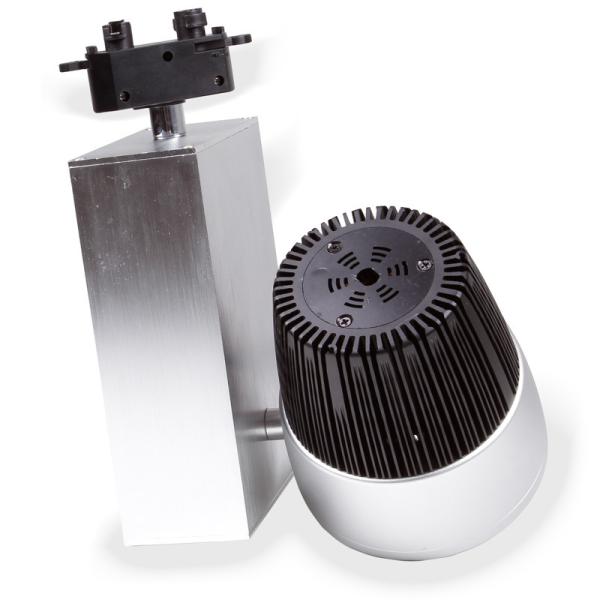

40w high power led track light
40w high power led track light
Specifications
Place of Origin :
china
Brand Name :
EWIN
Certification :
CE ROHS
Model Number :
EW-TL-COB-40W
Light Source: :
LED
LED Light Source: :
cob chips
Warranty(Years): :
3
Input Voltage(V): :
100-277
Lamp Power(W): :
46
Lamp Luminous Flux(lm): :
3400-4000
Lamp Luminous Efficiency(lm/w): :
120
CRI (Ra>): :
82
Color Temperature(CCT): :
Pure White
Working Temperature(℃): :
-40 - 45
Working Lifetime(Hour): :
50000
Lamp Body Material: :
Aluminum
color of housing: :
white black aluminum
power factor: :
0.90-0.98
power efficiency: :
0.85
track adaptor: :
2-way 3-way 4-way
SDCM: :
<4
Frequency range :
50-60Hz
beam angle: :
30 or 50 degree
Item Type: :
Track Lights
MOQ :
10pcs
Price :
12-82USD
Packaging Details :
Box for each:280*125*250mm. Carton for 6 pcs; 62*32*28cm.
Delivery Time :
usually 7-10 working days
Payment Terms :
T/T, Western Union
Supply Ability :
5000PCS/Month
Description

30W adjustable high powerr led track light

Description Brand options Voltage PF CRI Beam

Dimension

mm

Netweight
10W LED COB Track light

Cree/Bridelux/

Citizen/Gosun

 100-277vAC >0.9 >82 30°/50°

80×95(lamp)

132 ×85 ×
45(power box)

0.9kg
15W LED COB Track light

Cree/Bridelux/

Citizen/Gosun

 100-277vAC >0.9 >82 30°/50°

102×122(lamp)

132 ×85 ×
45(power box)

1.20kg
20W LED COB Track light

Cree/Bridelux/

Citizen/Gosun

 100-277vAC >0.9 >82 30°/50°

102×122(lamp)

132 ×85 ×
45(power box)

1.20kg
30W LED COB Track light

Cree/Bridelux/

Citizen/Gosun

 100-277vAC >0.9 >82 30°/50°

122×137(lamp)

178 ×125 ×
60(power box)

1.75kg
40W LED COB Track light

Cree/Bridelux/

Citizen/Gosun

 100-277vAC >0.9 >82 30°/50°

Φ122 ×130mm

1.70kg

Specifications

1)Driver brand: Lifud
2)High output: 3400-4000lm
3)Brand: Epistar
4)PCB: Ceramic
5)Waranty: 3 years

Specifications:

1.Output: 3400-4000lm.
2.CRI: 82.
3.Beam Angle: 30, 60.
4.Connection: 2-way, 3-way, 4-way.
5.Certificate: CE/RoHS/

40W COB LED Track lighting

Products Features:
(1)LED Power: 2*20W.
(2)Lamp Consumption:46W.
(3)Output: 3400-4000lm.
(4)Input voltage:100-277v AC, 50-60hz
(5)Beam Angle:30°/60°
(6)CRI:> 82.
(7)Working Temperature:-40°C-45°C.
(8)Storage Temperature: -25°C-65°C.
(9)Color of housing: white, black, silver.
(10)Track connecotr: 2-way, 3-way, 4-way available.
(11)Life span: 50,000+hrs.
(12)Certificate: CE/RoHS/
(13)Warranty: 3 years.

COB Parameter(total 2 pcs):
(1)PCB: Ceramic.
(2)Chip Brand: Epistar 10*23.
(3)Power: 20W*2

(4)Chip Qty: 320 pcs*2.
(5)CRI> 82.
(6)Voltage:30-32vDC
(7)Current: 650-700mA.


Driver Parameter total 2 pcs):
(1)Brand: Lifud (LED Friend).
(2)Input:100-277v AC.
(3)Output: 27-42vDC, 700mA.
(4)Power effect: 0.9-0.97.
(5)Power Efficiency: 87%
(6)Certificate:CE/TUV/UL/CQC/SAA

Dimmable: Triac or Dali is available.
Meanwell PLD-25-700 is optional.

Product Datasheet:

Part No.

Color

CCT

Output

EW-TL-COB2*20W-WW

warm white

2800-3200k

3300-3500lm

EW-TL-COB-2*20W-NW

natural white

4000-4500k

3700-3800lm

EW-TL-COB-2*20W-CW

cool white

6000-6500k

3800-4000lm

Dimensions(mm):

40w high power led track light

Test report: ( Note: The beam angle is only about 1/2 output of the all illuminated. )

40w high power led track light

More Pictures:

40w high power led track light40w high power led track light40w high power led track light40w high power led track lightPacking&shipping

EPE Cotton and hard board protect: 40w high power led track lightn

more products

40w high power led track light40w high power led track light

40w high power led track light40w high power led track light

40w high power led track light

40w high power led track light

Packaging

40w high power led track light40w high power led track light40w high power led track light40w high power led track light

Services and Promise

Our service:

1. Your inquiry related to our products or prices will be replied in 24hours.

2. Well-trained and experienced staffs to answer all your enquires influent English.

3. OEM & ODM are welcomed, OEM brand is available.

4. Distributor ship is offered for your unique desigh and some our current models.

5. Protection of your sales area, ideas of design and all your private information.

Our quality control:

* All products must go through five checks before manufacturing process.

* Raw material full check before production.

* Full check after every individual process finished.

* Full check after production half-done.

* 500 times on and off testing after production finished.

* Full check after production packed before shipping.

Homepage:www.ewinled.com
