Wholesale Hot Sale 20W Aluminum COB Led Track Lighting CE &lamp; ROHS
Wholesale Hot Sale 20W Aluminum COB Led Track Lighting CE &lamp; ROHS
Specifications
Place of Origin :
china
Brand Name :
EWIN
Certification :
CE ROHS
Model Number :
EW-SCL-COB-20W
Light Source: :
LED
LED Light Source: :
cob chips
Warranty(Years): :
3
Input Voltage(V): :
100-277
Lamp Power(W): :
22
Lamp Luminous Flux(lm): :
1700-2000
Lamp Luminous Efficiency(lm/w): :
120
CRI (Ra>): :
82
Color Temperature(CCT): :
Pure White
Working Temperature(℃): :
-40 - 45
Working Lifetime(Hour): :
50000
Lamp Body Material: :
Aluminum
color of housing: :
white black aluminum
power factor: :
0.90-0.98
power efficiency: :
0.85
track adaptor: :
2-way 3-way 4-way
SDCM: :
<4
Frequency range :
50-60Hz
beam angle: :
30 or 50 degree
Item Type: :
Track Lights
MOQ :
10pcs
Price :
20.5-76.3
Packaging Details :
Packaging Details: EPE Cotton protect; Box lamp:355*160*280mm; 6 pcs in one carton;:725*295*500mm; D
Delivery Time :
usually 7-10 working days
Payment Terms :
T/T, Western Union
Supply Ability :
5000PCS/Month
Description

Wholesale Hot Sale 20W Aluminum COB Led Track Lighting CE &lamp; ROHS

Description Brand options Voltage PF CRI Beam

Dimension

mm

Netweight
10W LED COB Track light

Cree/Bridelux/

Citizen/Gosun

 100-277vAC >0.9 >82 30°/50°

80×95(lamp)

132 ×85 ×
45(power box)

0.9kg
15W LED COB Track light

Cree/Bridelux/

Citizen/Gosun

 100-277vAC >0.9 >82 30°/50°

102×122(lamp)

132 ×85 ×
45(power box)

1.20kg
20W LED COB Track light

Cree/Bridelux/

Citizen/Gosun

 100-277vAC >0.9 >82 30°/50°

102×122(lamp)

132 ×85 ×
45(power box)

1.20kg
30W LED COB Track light

Cree/Bridelux/

Citizen/Gosun

 100-277vAC >0.9 >82 30°/50°

122×137(lamp)

178 ×125 ×
60(power box)

1.75kg
40W LED COB Track light

Cree/Bridelux/

Citizen/Gosun

 100-277vAC >0.9 >82 30°/50°

Φ122 ×130mm

1.70kg

1. Product features

LED power 20W
Lamp consumption 22W
Output 2200-2500lm
Beam angle 30° /50°
Input voltage 100-277vAC
Frequency Range 50-60HZ
CRI >82
Working Temperature -45°C-65°C
Storage Temperature -25°C-65°C
Color of Frame white/black/silver
Lifespan 50000hrs
Certificate CE/ROHS/ERP/SASO/GS

2. COB parameter

PCB Ceramic
Chip size 14*28mil
Output 2600-3000lm
Chip Qty 300pcs
CRI >82
Voltage 30-33vDC
Current 500mA(Max 1320mA)
Brand options

Gosun/Cree/bridgelux/Citizen

3. Driver parameter

Brand options Lifud/Meanwell/EAGLERIES/PHILIPS/TRIDONIC
Input 100-270vAC
Output 27-42vDC,350mA
Power Factor 0.9-0.99
Power Efficiency 86%
Certificate CE/TUV/UL/SAA/PSE/CB/CQC
Dimmable Triac /Dali/WI-FI available

4.Data Sheet

Part No. Color CCT Output
EW-SCL-COB-20W-WW Warm White 2900K-3200K 2200-2300lm
EW-SCL-COB-20W-NW Natural white 3900K-4200K 2300-2400lm
EW-SCL-COB-20W-CW Cool White 5900K-6200K 2400-2500lm

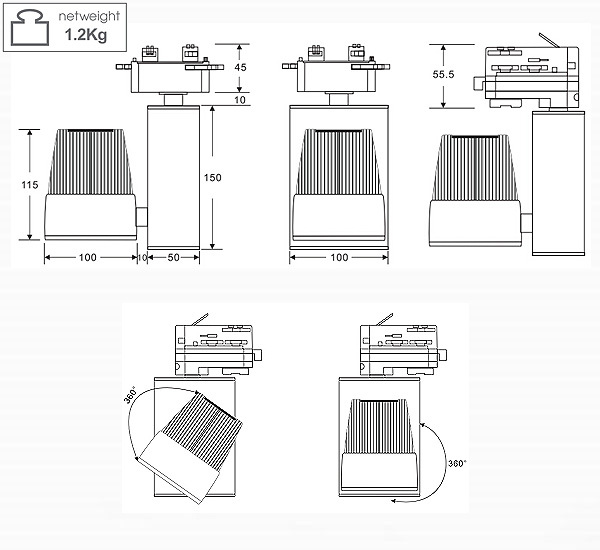

Dimension

Wholesale Hot Sale 20W Aluminum COB Led Track Lighting CE &lamp; ROHSWholesale Hot Sale 20W Aluminum COB Led Track Lighting CE &lamp; ROHS

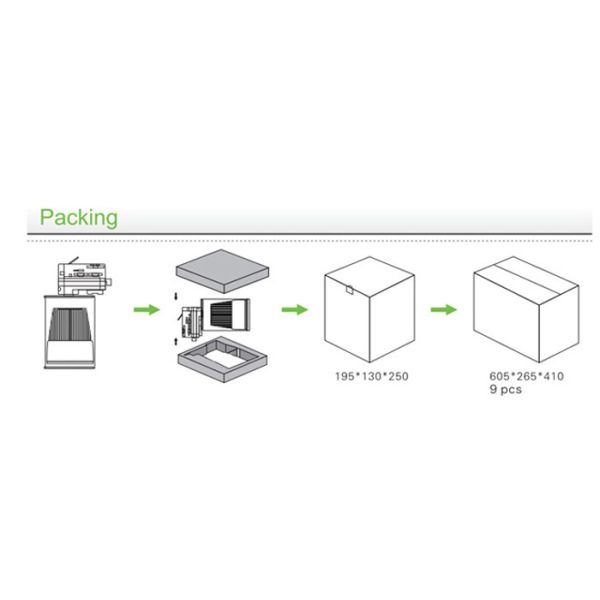

Packaging

Wholesale Hot Sale 20W Aluminum COB Led Track Lighting CE &lamp; ROHSWholesale Hot Sale 20W Aluminum COB Led Track Lighting CE &lamp; ROHSWholesale Hot Sale 20W Aluminum COB Led Track Lighting CE &lamp; ROHSWholesale Hot Sale 20W Aluminum COB Led Track Lighting CE &lamp; ROHS


Packing:

Wholesale Hot Sale 20W Aluminum COB Led Track Lighting CE &lamp; ROHS

More Pictures:

Wholesale Hot Sale 20W Aluminum COB Led Track Lighting CE &lamp; ROHSWholesale Hot Sale 20W Aluminum COB Led Track Lighting CE &lamp; ROHSWholesale Hot Sale 20W Aluminum COB Led Track Lighting CE &lamp; ROHSWholesale Hot Sale 20W Aluminum COB Led Track Lighting CE &lamp; ROHSWholesale Hot Sale 20W Aluminum COB Led Track Lighting CE &lamp; ROHSWholesale Hot Sale 20W Aluminum COB Led Track Lighting CE &lamp; ROHS

Wholesale Hot Sale 20W Aluminum COB Led Track Lighting CE &lamp; ROHS
