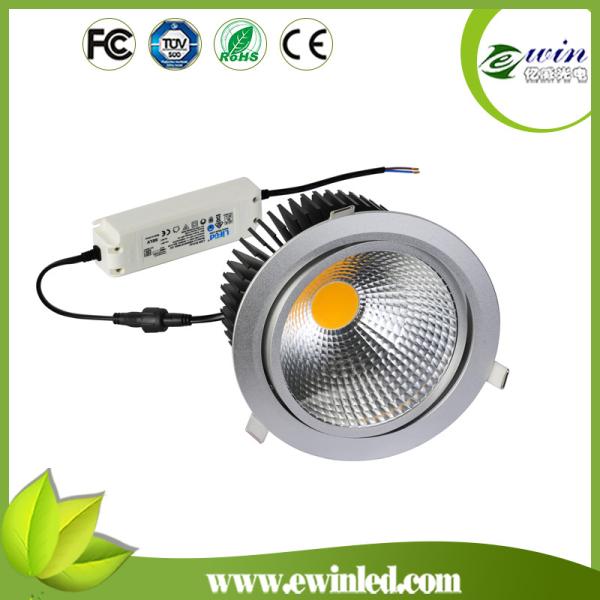

EWIN 40W COB LED Downlight (professional COB led lamps manufacturer)
EWIN 40W COB LED Downlight (professional COB led lamps manufacturer)
Specifications
Place of Origin :
china
Brand Name :
EWIN
Certification :
CE ROHS
Model Number :
EW-OCL-COB-40W-WW
Light Source: :
Epistar chip COB LED
Item Type: :
Downlights
LED Light Source: :
LED
Warranty(Years): :
3
Input Voltage(V): :
AC100-240V 50/60Hz
Lamp Power(W): :
40
Lamp Luminous Flux(lm): :
4100-4600lm.
Lamp Luminous Efficiency(lm/w): :
90
CRI (Ra>): :
82
Color Temperature(CCT): :
white, warm white, cold white,red,green,blue,yellow
Working Temperature(℃): :
-40 - 45
Working Lifetime(Hour): :
50000
watts: :
3W-50W are available
Lamp Body Material: :
Aluminum
IP Rating: :
IP50
Beam Angle: :
30°/60°
Color Temperature: :
2000k-7000k
Working Voltage: :
50-70VDC
Cuting hole: :
165-170mm
Dimension: :
D180xH115mm
Rotatable angle: :
180 degrees
MOQ :
10pcs
Price :
US $50 - 81/ Piece
Packaging Details :
12pcs in one carton(52x34x34CM)
Delivery Time :
usually 7-10 working days
Payment Terms :
T/T, Western Union
Supply Ability :
50,000 Piece/Pieces per Month
Minimum Order Quantity: :
1 Piece/Pieces
Input Voltage(V) :
AC100-240V 50/60Hz
Lamp Luminous Flux(lm) :
4000-4050lm.
Lamp Luminous Efficiency(lm/w) :
100
CRI (Ra>) :
82
Working Lifetime(Hour) :
50,000+hrs.
Install Style :
Downlights
Description

EWIN 40W COB LED Downlight (professional COB led lamps manufacturer)

Specifications

1.Output: 3500-3600lm
2.CRI: >82
3.Rotatable: 360 degree
4.Dimmable:Triac or Dali
5.Certificates: CE/RoHS/SAA/SASO

40W 360 rotatable COB LED downlight

Products Features:
(1)LED Power: 40W.
(2)Lamp Consumption:17W.
(3)Output: 3500-3600lm
(4)Input voltage:100-270v AC, 50-60hz
(5)Beam Angle:30°/60°
(6)CRI:> 80.
(7)Working Temperature:-40°C-45°C.
(8)Storage Temperature: -25°C-65°C.
(9)Color of housing: white, black, silver.
(10)Life span: 50,000+hrs.
(11)Certificate: CE/RoHS/SASO
(12)Warranty: 3 years.

COB Parameter:
(1)PCB: Ceramic.
(2)Chip Brand: Epistar 10*23.
(3)Output: 3500-3600lm
(4)Chip Qty: 250 pcs.
(5)CRI> 82.
(6)Voltage:30-36vDC
(7)Current: 500-600mA.


Driver Parameter:
(1)Brand: Lifud (LED Friend).
(2)Input:100-277v AC.
(3)Output: 27-42vDC, 500mA.
(4)Power effect: 0.9-0.97.
(5)Power Efficiency: 85%
(6)Certificate:CE/TUV/UL/CQC/SAA

Dimmable: Triac or Dali is available.
Meanwell PLD-16-350 is optional.

Product Datasheet:

Part No. Color CCT Output
EW-OCL-COB-40W-WW warm white 2900-3200k 3500-3600lm
EW-OCL-COB-40W-NW natural white 4000-4500k 3500-3600lm
EW-OCL-COB-40W-CW cool white 5900-6300k 3500-3600lm

40W COB LED Downlight (Model: D40165)

EWIN is professional in produce indoor COB LED Commercial Lighting, we have 180° rotatable round /Rectangular COB led downlight series include 6W,10W, 15W, 20W, 30W , 40W and 50W versions; 360°rotatable COB led downlight series include 20W, 30W and 40W versions. Besides, we also have 10-100W COB track lights, 10-30W COB led gimbal lights, COB led MR16, GU10, E27, par20, par30, par38, AR111 spotlights which are hot-selling.

Features:

High light efficiency, high brightness, high color rendering, low light decay, uniform color, no lightspot.

Application:

Products are widely used as indoor illumination lighting in specialty stores, shopping malls, art gallery, showroom, offices, factories, supermarkets, the exhibitions, etc.

Dimension:

EWIN 40W COB LED Downlight (professional COB led lamps manufacturer)

EWIN 40W COB LED Downlight (professional COB led lamps manufacturer)

IES Test:(please contact us to get the IES file)

EWIN 40W COB LED Downlight (professional COB led lamps manufacturer)

Lighting:

EWIN 40W COB LED Downlight (professional COB led lamps manufacturer)

EWIN Quality Control

1. 100% testing before aging .

2. Aging for no less than 24hours, and the switch is off-on aucomatically every 2minutes during aging procedure.

3. 100% testing by safe tester (with 3700V high voltage) before packing.

4. Except normal CE, RoHS, FCC certificates for the finished products, we can provide IES files and ERP reports.

BESUN Services and terms

Warranty: 3years , free replacement.

Lead time: 7-10 days.

Payment: TT, Western Union, Paypal, Money Gram.

Transportation: DHL, UPS, FedEx, Air, Sea, etc.

EWIM focus on COB LED Commercial Lighting since from 2010, and we make COB led lamps only, we belive high quality & high efficiency based on profession.
