new products 2016 5 years warranty IP44 Rating dimmable 30w led downlight
new products 2016 5 years warranty IP44 Rating dimmable 30w led downlight
Specifications
Place of Origin :
china
Brand Name :
EWIN
Certification :
CE ROHS
Model Number :
EW-DL-30W-COB
MOQ :
100pcs
Price :
US $ 8-30/ Piece
Packaging Details :
standard export package suitable for long-distance transportation
Delivery Time :
usually 7-10 working days
Payment Terms :
T/T, Western Union
Supply Ability :
50,000 Piece/Pieces per Month
Light Source: :
LED
Item Type: :
Downlights
LED Light Source: :
LED
Warranty(Years): :
3
Input Voltage(V): :
AC100-240V 50/60Hz
Lamp Power(W): :
30
Lamp Luminous Flux(lm): :
3300-3600
Lamp Luminous Efficiency(lm/w): :
95
CRI (Ra>): :
80
Color Temperature(CCT): :
white, warm white, cold white,red,green,blue,yellow
Working Temperature(℃): :
-20 - 50
Working Lifetime(Hour): :
50000
watts: :
3W-50W are available
Lamp Body Material: :
Aluminum
IP Rating: :
IP44
Description

new products 2016 5 years warranty IP44 Rating dimmable 30w led downlight

Specifications of 50w led downlight

Item Type: Downlights LED Light Source: COB LED Lamp Luminous Flux(lm):3600

1.Output: 3300-3600lm.
2.CRI: 82.
3.Beam Angle: 30, 60.
4.Chip brand: Epistar 10*23

5.Certificate: CE/RoHS/SAS0/SAA

6.Driver:Lifud(or MEANWELL)

CE,RoHS,FCC,ERP Asia, EU, US standard
GOSUN is professional in produce indoor COB LED Commercial Lighting which include 10-60W COB led track light, 6-40W COB led downlight, 3-15W COB led spotlight.

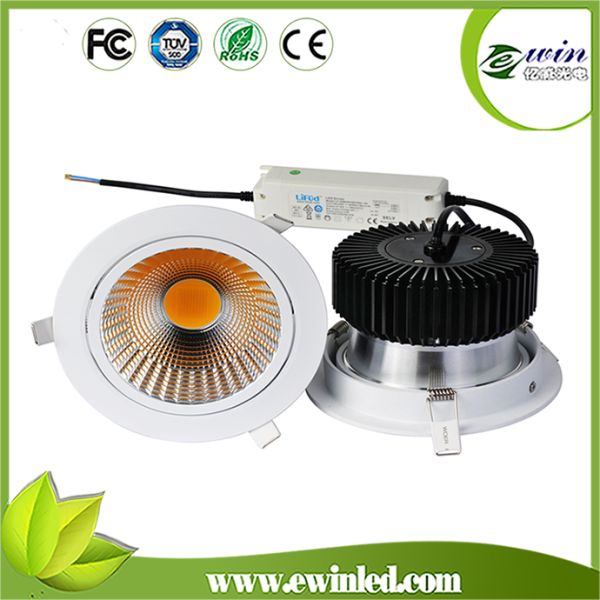

30W High power COB LED Downlights:

Features of downlight led:

High light efficiency, high brightness, high color rendering, low light decay, uniform color, no lightspot.

Parameters:

Material

Aluminum

Color temperature

Warm white: 2700K / 3500K

Natural white:4000-4500K

Cool white:5500-6500K

Power of LED

30W

LED Chip (quantity)

Epistar (500pcs)

System Consumption

33W

Input voltage

AC100-277V

Beam angle

30 / 60degrees

Power efficiency

>87%

Led Luminous Efficiency

120LM/W

LED luminous efficiency

3300-3600LM

Color Rendering Index

>82

Light design

COB LED + Reflective cup secondary light distribution

Lifetime

>50,000hrs

Color of housing

White, Black, Silver

Optical data

Test reports, IES files

Certificate of lamp

CE, RoHS, FCC, ERP, IES

Certificate of driver

CE, RoHS, UL, SAA, TUV, CQC, FCC

Product Datasheet:

Part No.

Color

CCT

Output

EW-SCL-COB-30W-WW

warm white

2700-3500k

3300-3400lm

EW-SCL-COB-30W-NW

natural white

3500-4500k

3400-3500lm

EW-SCL-COB-30W-CW

cool white

5500-6500k

3500-3600lm

new products 2016 5 years warranty IP44 Rating dimmable 30w led downlightnew products 2016 5 years warranty IP44 Rating dimmable 30w led downlight

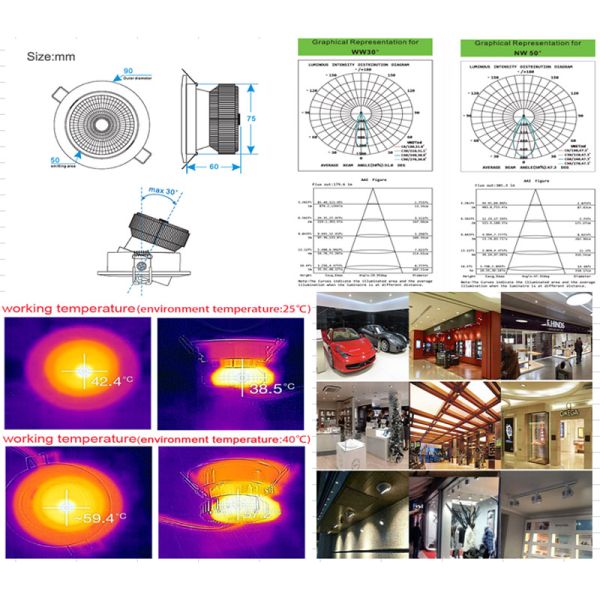

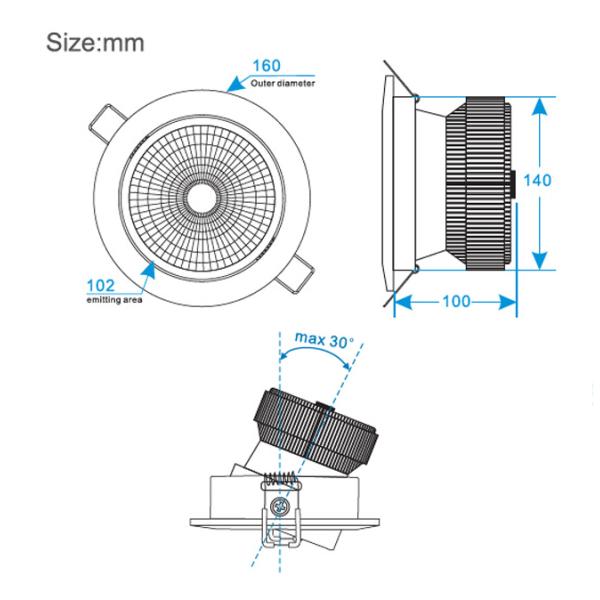

Dimension:

new products 2016 5 years warranty IP44 Rating dimmable 30w led downlight

new products 2016 5 years warranty IP44 Rating dimmable 30w led downlight

packing:

new products 2016 5 years warranty IP44 Rating dimmable 30w led downlight


Packing:
new products 2016 5 years warranty IP44 Rating dimmable 30w led downlight

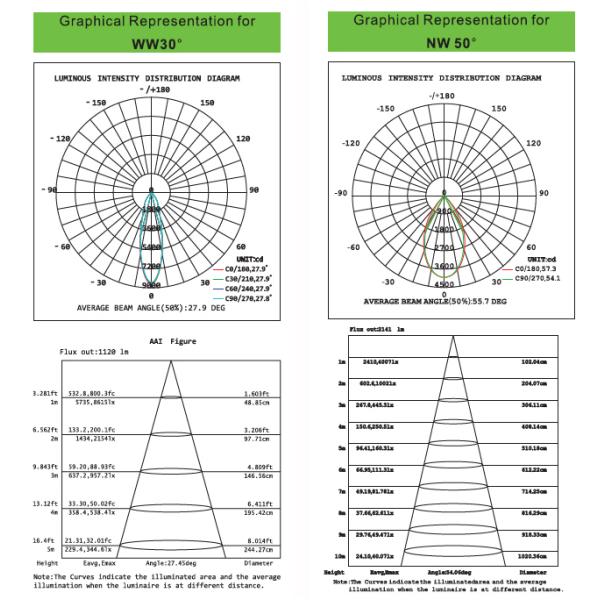

Test Report:

(Note:The beam angle is only about 1/2 output of the all illuminated)new products 2016 5 years warranty IP44 Rating dimmable 30w led downlight

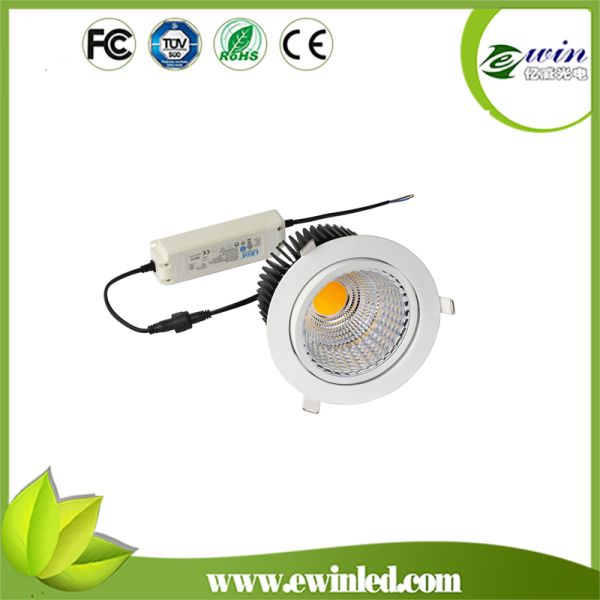

More Pictures:
new products 2016 5 years warranty IP44 Rating dimmable 30w led downlight

Application:

Products are widely used as indoor illumination lighting in specialty stores, shopping malls, art gallery, showroom, offices, factories, supermarkets, the exhibitions, etc.

new products 2016 5 years warranty IP44 Rating dimmable 30w led downlight
