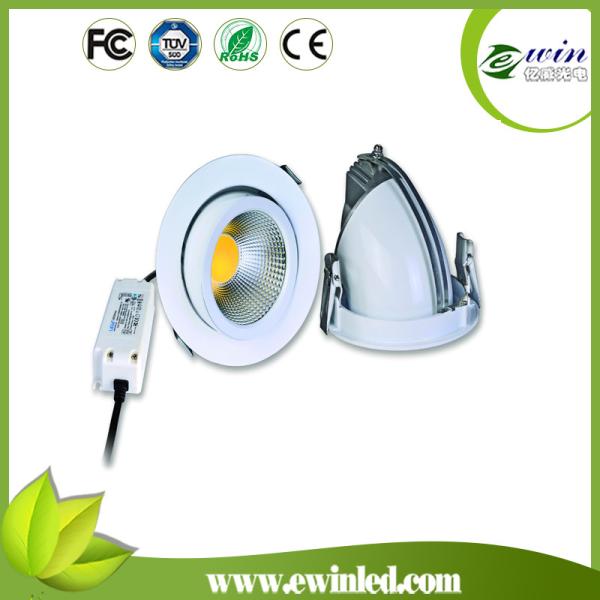

2016 new design CE/Rohs approved 10w 15w 20w 26w LED gimbal downlight with 3 years warrant

Specifications

Place of Origin :

china

Brand Name :

EWIN

Certification :

CE ROHS

Model Number :

EW-OCL-COB-26W-WW

Light Source: :

LED

Item Type: :

Downlights

LED Light Source: :

LED

Warranty(Years): :

Input Voltage(V): :

AC100-240V 50/60Hz

Lamp Power(W): :

Lamp Luminous Flux(lm): :

2400-2600

Lamp Luminous Efficiency(lm/w): :

100

CRI (Ra>): :

Color Temperature(CCT): :

white, warm white, cold white,red,green,blue,yellow

Working Temperature(℃): :

-40 - 45

Working Lifetime(Hour): :

50000

watts: :

3W-50W are available

Lamp Body Material: :

Aluminum

IP Rating: :

IP33

Beam Angle: :

30°/60°

Color Temperature: :

2000k-7000k

Working Voltage: :

50-70VDC

MOQ :

10pcs

Price :

US $ 46.8 - 55.6 / Piece

Packaging Details :

12pcs in one carton(52x34x34CM)

Delivery Time :

usually 7-10 working days

Payment Terms :

T/T, Western Union

Supply Ability :

50,000 Piece/Pieces per Month

Minimum Order Quantity: :

1 Piece/Pieces

Input Voltage(V) :

AC100-240V 50/60Hz

Lamp Luminous Flux(lm) :

2900-3200k

Lamp Luminous Efficiency(lm/w) :

100

CRI (Ra>) :

Working Lifetime(Hour) :

50,000+hrs.

Install Style :

Downlights

Description

2016 new design CE/Rohs approved 10w 15w 20w 26w LED gimbal downlight with 3 years warrant

Specifications

1.Output: 2400-2600lm
2.CRI: >82
3.Rotatable: 360 degree
4.Dimmable:Triac or Dali
5.Certificates: CE/RoHS/SAA/SASO

26W 360 rotatable COB LED downlight

Products Features:
(1)LED Power: 26W.
(2)Lamp Consumption:30W.
(3)Output: 2400-2600lm.

(4)Input voltage:100-270v AC, 50-60hz
(5)Beam Angle:30°/60°
(6)CRI:> 80.
(7)Working Temperature:-40°C-45°C.
(8)Storage Temperature: -25°C-65°C.
(9)Color of housing: white, black, silver.
(10)Life span: 50,000+hrs.
(11)Certificate: CE/RoHS/SASO
(12)Warranty: 3 years.

COB Parameter:
(1)PCB: Ceramic.
(2)Chip Brand: Epistar 10*23.
(3)Output: 2400-2600lm.
(4)Chip Qty: 420 pcs.
(5)CRI> 82.
(6)Voltage:30-36vDC
(7)Current: 500-600mA.

Driver Parameter:
(1)Brand: Lifud (LED Friend).
(2)Input:100-277v AC.
(3)Output: 27-42vDC, 500mA.
(4)Power effect: 0.9-0.97.
(5)Power Efficiency: 85%
(6)Certificate:CE/TUV/UL/CQC/SAA

Dimmable: Triac or Dali is available.
Meanwell PLD-16-350 is optional.

Product Datasheet:

Part No.	Color	CCT	Output
EW-OCL-COB-26W-WW	warm white	2400-2500k	1250-1300lm
EW-OCL-COB-26W-NW	natural white	4000-4500k	1300-1400lm
EW-OCL-COB-26W-CW	cool white	5900-6300k	1350-1500lm

Dimension:
