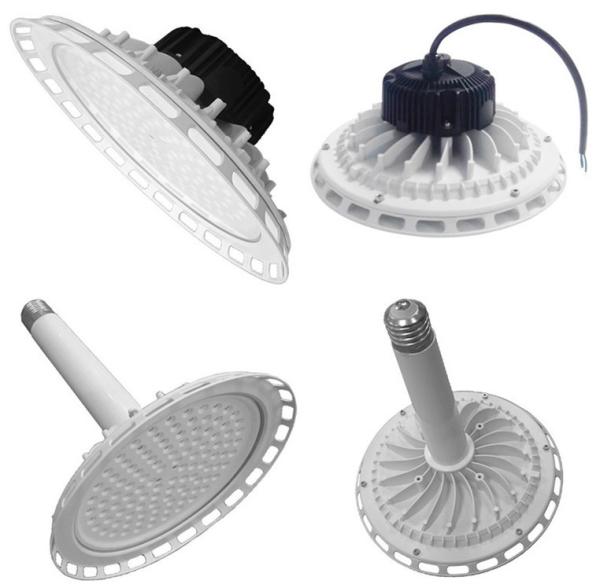

Die cast aluminum meanwell AC100V 110V 220V 230V IP65 water proof 150w led high bay light with loop
Die cast aluminum meanwell AC100V 110V 220V 230V IP65 water proof 150w led high bay light with loop
Specifications
Brand Name :
CES/ODM/OEM
Model Number :
CES-T150
Certification :
CCC, CE, CQC, EMC, FCC, LVD, RoHS
Place of Origin :
Guangdong, China (Mainland)
MOQ :
1PCS
Price :
$132/PCS
Payment Terms :
Western Union, T/T, MoneyGram
Supply Ability :
5000 Carton/Cartons per Month
Delivery Time :
5-10Workdays
Packaging Details :
CTN with foam for international shipping, 370mm*370mm*240mm
Light Source: :
LED
Item Type: :
High Bay Lights
LED Light Source: :
Epistar/Bridgelux
Warranty(Years): :
5
Input Voltage(V): :
AC100-277V
Lamp Power(W): :
150W
Lamp Luminous Flux(lm): :
180000
Lamp Luminous Efficiency(lm/w): :
120
CRI (Ra>): :
70
Color Temperature(CCT): :
Cool White
Working Temperature(℃): :
-40 - 50
Working Lifetime(Hour): :
50000
Lamp Body Material: :
Aluminum Alloy
IP Rating: :
IP65
Model Number: :
CES-T
Body: :
Die cast aluminum
Beam angle: :
30/40/60 degree
Description

Die cast aluminum meanwell driver IP65 water proof 220w led high bay light

LED High Bay Light

DIMENSIONS

LENGTH : 300mm

WIDTH : 300mm

HEIGHT : 120mm

WEIGHT: 3.1KG

LED LIGHT ENGINE

  • Ø High quality LM80 Certify Chip
  • Ø Efficacy : up to 150lm @ 350Ma (per watt)
  • Ø Rated Life of 50,000+ hrs
  • Ø Operation temp: -30 ºC to +30 ºC
  • Ø No toxic chemicals/Rohs compliant
  • Ø 70%-80% saving compare to HPS/MH

PRODUCT FEATURE

  • Ø 5 years warranty
  • Ø Ingress Protection rating : IP65

APPEARANCE

  • Ø Material: Die Cast Aluminum
  • Ø Light Color option: 5700/4000/2700K

Custom color

  • Ø LENS: Super Clear Tempered Glass

ELECTRICAL CHARACTERISTICS

  • Ø Wide AC input: 90-305 VAC
  • Ø Power Factor: ~0.98
  • Ø Total Harmonic Distortion: < 10%
  • Ø Surge protection: IEC/EN 61000-4-5
  • Ø EMC test standard

INSTALLATION

  • Ø Easy installation – plug and play
  • Ø High Bay Hook

QUALIFICATION

  • Ø CE: Recognition with CNAS
  • Ø ISO 14001: Recognition with IAF & CNAS
  • Ø ISO 9001: Recognition with IAF & CNAS

Note ITEM NO. DESCRIPTION

TOTAL

POWER

Reflector

Angle

NOMINAL

LUMENS

DRIVE

CURRENT

 # OF LEDS

SYSTEM

EFFICACY

Taiwan Meanwell

HLG

 CES-T150

Replacing

600w HPS

 150

60/40/30

degree

 18,000 350 mA 144

120 LM/W
