UL844 ATEX IECex class 1 division 2 60w led explosion proof flood light IP68 rating 5 years warranty
UL844 ATEX IECex class 1 division 2 60w led explosion proof flood light IP68 rating 5 years warranty
UL844 ATEX IECex class 1 division 2 60w led explosion proof flood light IP68 rating 5 years warranty
UL844 ATEX IECex class 1 division 2 60w led explosion proof flood light IP68 rating 5 years warranty
UL844 ATEX IECex class 1 division 2 60w led explosion proof flood light IP68 rating 5 years warranty
UL844 ATEX IECex class 1 division 2 60w led explosion proof flood light IP68 rating 5 years warranty
Specifications
Brand Name :
EWIN
Model Number :
CES-J40/40S
Certification :
CE ROHS UL，ETL，SAA，FCC
Place of Origin :
china
MOQ :
1pcs
Price :
100-400
Payment Terms :
T/T,Western Union,Paypal
Supply Ability :
10000m/Month
Delivery Time :
7-10day after receiving your payment
Packaging Details :
1 pcs / 1ctn (professional design and open mold): 120w-150w:Packing dimension : 48x48x26cm (12kg) 40w-80w : Packing dimension : 37x37x23cm (8.5kg )
Light Source: :
LED
Item Type: :
Flood Lights
LED Light Source: :
Bridgelux
Input Voltage(V): :
100-240V AC
Lamp Power(W): :
40
Lamp Luminous Flux(lm): :
4600
Lamp Luminous Efficiency(lm/w): :
90
CRI (Ra>): :
70
Color Temperature(CCT): :
Pure White
Beam Angle(°): :
120°
Working Temperature(℃): :
-20 - 40
Working Lifetime(Hour): :
50000
Lamp Body Material: :
Aluminum Alloy
IP Rating: :
IP67
Certification: :
CE, LVD, RoHS, VDE
LED source: :
Bridgelux LED
Application: :
mainly for gas station
Anti explosion report: :
yes
Warranty: :
5 years
Product Size : :
400*400*185MM or 200*200*270 mm
Description

UL844 ATEX IECex class 1 division 2 40w led explosion proof flood light IP68 rating 5 years warranty

UL844: Class I Division 2 Group A B C D

ATEX: Group II Zone 1 & Zone 2, Zone21 & Zone22

IECEX: Group II Zone 1 & Zone 2, Zone21 & Zone22

CNEX: Group II Zone 1 & Zone 2, Zone21 & Zone22

Key features of ATEX Explosion Proof light:


1) Die-cast aluminum by 1800 Ton of pressure to make the body strong enough.
2) Powder Coated (similar to vehicles coating) and holder are cover with a thin layer of Zink, color can be ---customizable.
3) IP 68, highest rating of protection.
4) Anti- flame, high quality water proof silicon, 4MM super-strength tempered glass.
5) 5 year warranty.
6) Best driver: Meanwell HLG driver.
7) With the fullest anti-explosive certification,including UL844 for North America, ATEX for Europe ,IECEX for International and CNEX for China.

Photometric Design
UL844 ATEX IECex class 1 division 2 60w led explosion proof flood light IP68 rating 5 years warranty

Without Reflector :

The Beam Angle will be 120°*120°

With Reflector :

Beam Angle will be 60°*30°

COLOR Temperature : From Range 2500 K - 3000 K ( Warm White )
3000 K - 4500 K ( Nature White )
TO 4500 K - 7000 K ( Cool White )
All be at your Choice ! ! !
UL844 ATEX IECex class 1 division 2 60w led explosion proof flood light IP68 rating 5 years warranty
Package Information:
UL844 ATEX IECex class 1 division 2 60w led explosion proof flood light IP68 rating 5 years warranty
UL844 ATEX IECex class 1 division 2 60w led explosion proof flood light IP68 rating 5 years warranty
UL844 ATEX IECex class 1 division 2 60w led explosion proof flood light IP68 rating 5 years warranty
UL844 ATEX IECex class 1 division 2 60w led explosion proof flood light IP68 rating 5 years warranty

Specifications of led Explosion proof light

ITEM Models :
Product Size ( mm )
Packing Size ( mm )
G.W. / N.W. (Kgs)
CES-J20,CES-J30,CES-J40S
200*200*270mm
360x250x200mm
4.5kgs/4.0kgs
CES-J60, CES-J80, CES-J100
300*300*175mm
370x370x240mm
8.5kgs/7.5kgs
CES-J120, CES-J150, CES-J200
400*400*185mm
460x460x240mm
12.5kgs/11.5kgs

Explosion Proof LED Flood Light- Double Lamps

  • Housing: CESP patent design, explosion proof aluminum alloy.
  • Glass: Tempered glass. >95% light transmit, shock & vibration resistant.
  • LED: LM80 certified, high efficacy, low decay, Super long lifespan>50000 hours.
  • PCB: Aluminum thickness 2.5mm, Copper 2oz, heat transmit>2.5.
  • Driver: Meanwell HLG series, >90% driver efficacy, UL Certify.

This LED Flood Lights for Hazardous Area Lighting Zones Standard

Standard EX Marks
IP Grade
AMBIENT TEMP.
ATEX/IECEX Ex d IIB T*GB Zone 1/2/21/22
IP67
~40℃~+55℃
UL844 Class I Div 2, Class II Div 1&2, Group A, B, C, D
UL1598A(UL Marine) Corrosive environments, Coastal Marine Facilities


This LED Flood Lights for Hazardous Area Lighting Zones Parameters

Item NO.
CES-J Series (Double Lamps)
Power
20*2W
30*2W
40*2W
60*2W
80*2W
100*2W
120*2W
150*2W
185*2W
Input Voltage
100-277V
Frequency
50/60Hz
Power Factor
>0.98
THD
10%
LED Driver
Meanwell HLG Series
LED Chip
3030SMD
LED Quantity
24PCS / 84PCS / 156PCS
Lumen
20*2*125LM
30*2*125LM
40*2*125LM
60*2*125LM
80*2*125LM
100*2*125LM
120*2*125LM
150*2*125LM
200*2*125LM
Light Efficiency
125±5 LM/W
CCT
CCT: 5700K or customized
CRI
>73
Beam Angle
8/15/36/60/90/95°
Dimension
400*400mm / 600*600mm / 800*800mm

Application

  • Oil & gas offshore platform, transport and storage, refinery, chemical industries
  • Land / Drilling rigs, Mining, Painting/Coating /Powder plants
  • Military, Airport, Aerospace industry, etc.

Product Description:
1.High luminous,energy saving.
2.Excellent decoration effect,can select many colors,easy removel,wide application.
3.Long lifespan25000-50000hours,10 times longer than traditional light source.
4.Environmental protection,no lead,halogen and other harmful subatances.
5.Good color redenring index,more real physical color.
6.Excellent thermal dissipation.
7.Easy installation.


Product Details:

UL844 ATEX IECex class 1 division 2 60w led explosion proof flood light IP68 rating 5 years warranty


UL844 ATEX IECex class 1 division 2 60w led explosion proof flood light IP68 rating 5 years warranty

Applications

● ZONE 1 & 2 Hazardous locations ● Oil Refineries & Offshore Oil Platforms
● Locations that Need IP68 Protection ● Power Plants , Chemical Plants
● Gas Stations , Pumping Plants , Substations ● Waste Water Treatment Plants
● Paint Facilities , Coal Mining ,Sewage Plant ● Military Bases, Weapons Storage
● Food & Meat Processing Facilities ● Tunnel Lighting , Airports

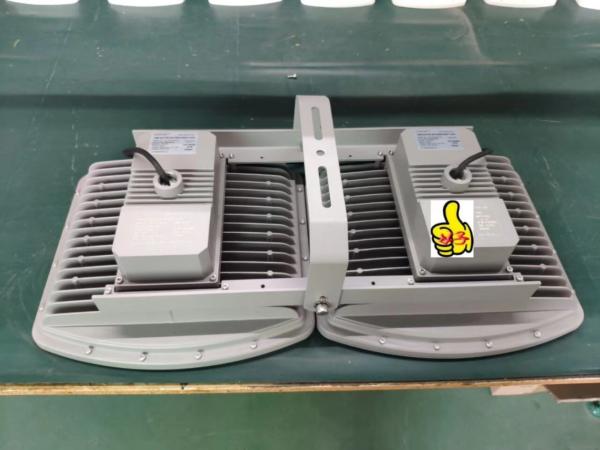

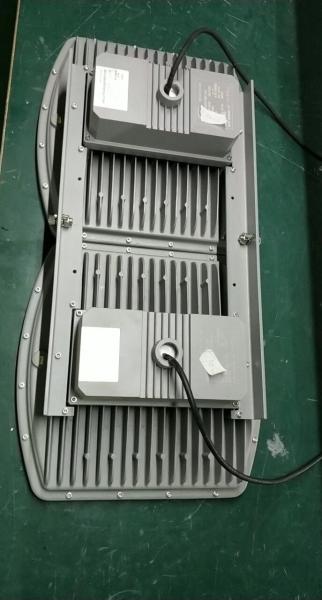

Product image:

UL844 ATEX IECex class 1 division 2 60w led explosion proof flood light IP68 rating 5 years warranty

UL844 ATEX IECex class 1 division 2 60w led explosion proof flood light IP68 rating 5 years warrantyUL844 ATEX IECex class 1 division 2 60w led explosion proof flood light IP68 rating 5 years warranty

UL844 ATEX IECex class 1 division 2 60w led explosion proof flood light IP68 rating 5 years warranty

UL844 ATEX IECex class 1 division 2 60w led explosion proof flood light IP68 rating 5 years warranty

Certification

UL844 ATEX IECex class 1 division 2 60w led explosion proof flood light IP68 rating 5 years warranty

ATEX (40w-120w) 100w as sample

UL & CUL

IP68

CNEX

DETAILS OEM&ODM

UL844 ATEX IECex class 1 division 2 60w led explosion proof flood light IP68 rating 5 years warranty

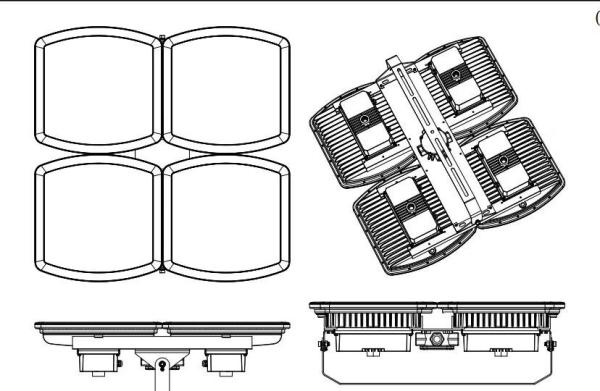

INSTALLATION METHODS

UL844 ATEX IECex class 1 division 2 60w led explosion proof flood light IP68 rating 5 years warranty

Typical application

1.Chemistry Factory

2.Offshore Oil Mining

3.Military Ship

4.Army Base

5.Gas Station

6.Petrol ProcessFactory

7.Training Camp

8.Navy Port

9...

Certification:

UL844 ATEX IECex class 1 division 2 60w led explosion proof flood light IP68 rating 5 years warranty

Application:

UL844 Atex led explosion proof lighting 200w meanwell driver 5 years warranty , airport, gas station, petrol station, army base, led ightings,chemical,natural gas,coal miming,military,aerospace,,oil&chemical processing&storage,warehouse,offshore oil mining use led anti-explosive fixture.

1.Morrisons in England:
UL844 ATEX IECex class 1 division 2 60w led explosion proof flood light IP68 rating 5 years warranty

2.Tauernalm Gas Station In Austria Flachau:

UL844 ATEX IECex class 1 division 2 60w led explosion proof flood light IP68 rating 5 years warranty Application:

- Apply to gas station, factory, outdoor canopy, retail stores or other places which need anti-corrosion,anti-explosion,dust-proof and water-proof luminaires.

UL844 ATEX IECex class 1 division 2 60w led explosion proof flood light IP68 rating 5 years warranty

Warning:

UL844 ATEX IECex class 1 division 2 60w led explosion proof flood light IP68 rating 5 years warranty
