Cnc Jewellery Engraving Machine Effortlessly Create Intricate Jewelry Designs
Cnc Jewellery Engraving Machine Effortlessly Create Intricate Jewelry Designs
Specifications
Brand Name :
GUANGLIJIN
Model Number :
G5-500 Jewelry Engraving And Milling Five-Axis Turning And Milling Compound Machine
Place of Origin :
China
Certification :
CE Certificate
MOQ :
1
Packaging Details :
Fumigation wooden frame - in line with international standards
Delivery Time :
30 days
Payment Terms :
T/T
Supply Ability :
100 units/month
Description

Technical Parameters:

No. Item Details
1 B axis reducer Alpha, Germany Rated torque 88.9n.m,
Instaneous max. torque 312n.m,
Rated speed 43 rpm, max. speed 85 rpm
2 C axis motor speed 3000rpm rated torque 15n.m

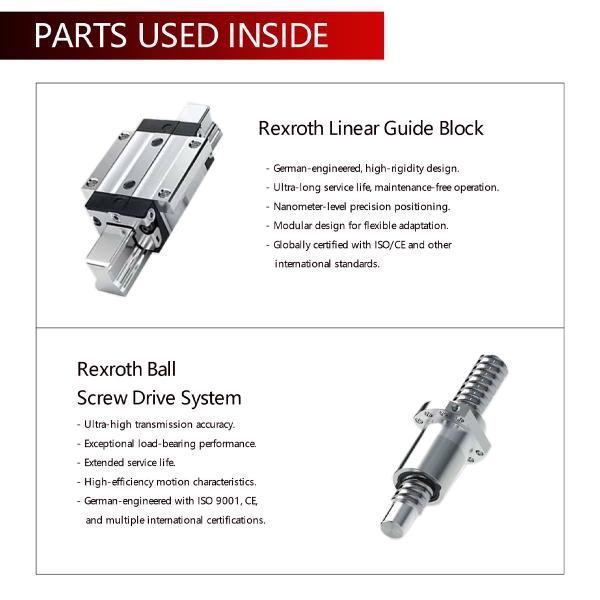

3 Transmission components Rexroth, Germany Repeatability: +/-0.005mm
4 Operation SYNTEC system 220MA-10.4 inch screen operation box
5 Servo motor 750w
6 Spindle electric 6.0kw, max. speed 40000 rpm
water cooling with flow-alarm
7 Tool magazine servo-drive Up to 12 engraving tools & 12 turning tools
8 Tool holder HSK E32
9 Collet chuck ER-20
10 Lubrication Timing automatic oiling
11 Working flatness +/-0.015mm
12 X axis stroke 500mm
13 Y axis stroke 150mm
14 Z axis stroke 200mm
15 Body weight 2.0 tons
16 Front door sliding door
17 Layout (mm) main body 1300 width*1060 depth*2100 height
18 Power requirement three-phase 380v/50hz

Cnc Jewellery Engraving Machine Effortlessly Create Intricate Jewelry Designs

Support and Services:

Technical support
Installation
Training
Maintenance
Troubleshooting
Software upgrade

Packing and Shipping:

Fumigation wooden case by sea or by air

FAQ:

Q: Are you a dealer or manufacturer?
A: We, Guanglijin, is a manufacturer of CAD/CAM CNC machine with over 20 years experience.
Q: Where are you from?
A: We are from Shenzhen China, one of the most creative city in the world.
Q: Do you provide overseas support or service?
A: Yes, we have a technican team which can travel abroad to do global service and support.
Q: Does this machine come with any certification?
A: Our machines are CE certificated.
