Revolutionize Your Jewelry Crafting Process with Our Five Axis Jewelry Making Machine
Revolutionize Your Jewelry Crafting Process with Our Five Axis Jewelry Making Machine
Specifications
Brand Name :
GUANGLIJIN
Model Number :
G10-200 bead engraving machine
Place of Origin :
China
Certification :
CE Certificate
MOQ :
1
Packaging Details :
Fumigation wooden frame - in line with international standards
Delivery Time :
30 days
Payment Terms :
T/T
Supply Ability :
100 units/month
Description

Technical Parameters:

No. Item Details
1 B axis reducer Japan Rated torque 15.3n.m,
Instaneous max. torque 53.5n.m,
Rated speed 250rpm, max. speed 500 rpm

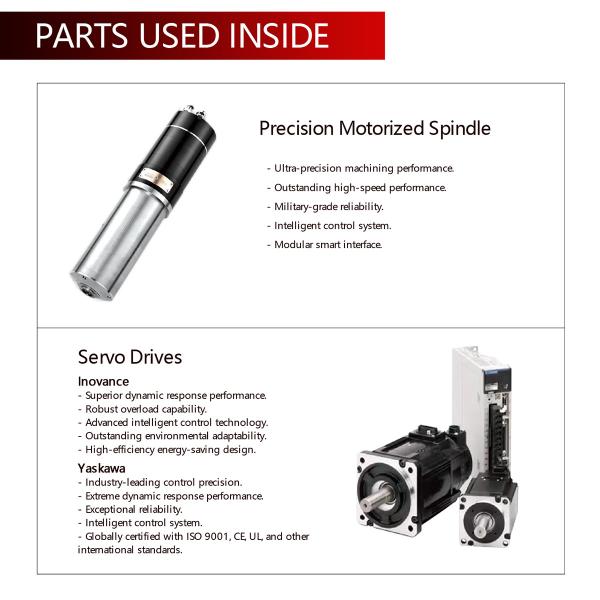

2 W axis spindle servo motor max. 10000rpm,
max. dia. of round cutter: 70mm

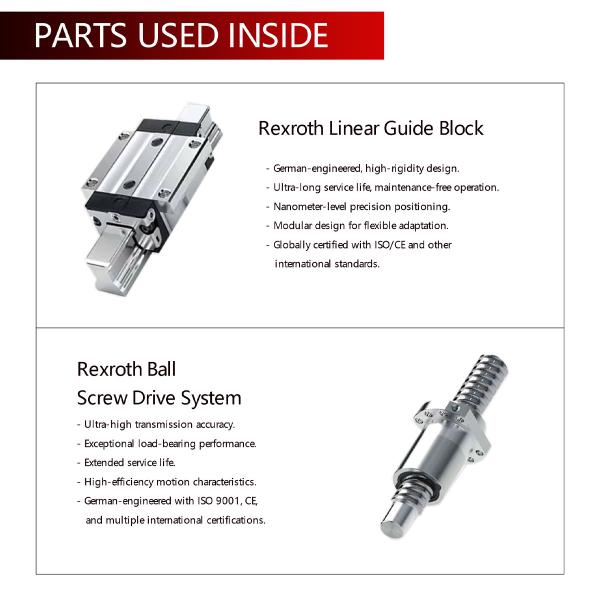

3 Transmission components Rexroth, Germany Repeatability: +/-0.003mm
4 Operation SYNTEC system 220MB-10.4 inch screen operation box,
max. extending 500mm on width at left side
5 Servo motor 50w/400w/750w
6 Spindle Air-operated 2.5kw, max. speed 60000 rpm
water cooling with flow-alarm
7 Tool magazine Auto calibration: 0.002mm Up to 8 tools
8 Bead rolling servo-drive 250 rpm to 500 rpm
9 Loading&unloading servo-motor vacuum chuck
10 Tool holder Penumatic driving ISO 10
11 Collet chuck ER-11
12 Lubrication Timing automatic oiling
13 Working flatness +/-0.015mm
14 X axis stroke 180mm
15 Y axis stroke 50mm
16 Z axis stroke 130mm
17 Body weight 1.0 tons
18 Front door Penumatic driving extending 600mm upward when opened
19 Layout (mm) main body 840 width*970 depth*2100 height
20 Power requirement 220v/50hz
Revolutionize Your Jewelry Crafting Process with Our Five Axis Jewelry Making Machine

Support and Services:

Technical support
Installation
Training
Maintenance
Troubleshooting
Software upgrade

Packing and Shipping:

Fumigation wooden case by sea or by air

FAQ:

Q: Are you a dealer or manufacturer?
A: We, Guanglijin, is a manufacturer of CAD/CAM CNC machine with over 20 years experience.
Q: Where are you from?
A: We are from Shenzhen China, one of the most creative city in the world.
Q: Do you provide overseas support or service?
A: Yes, we have a technican team which can travel abroad to do global service and support.
Q: Does this machine come with any certification?
A: Our machines are CE certificated.
