F50 Medical special turning and milling machine
F50 Medical special turning and milling machine
F50 Medical special turning and milling machine
F50 Medical special turning and milling machine
F50 Medical special turning and milling machine
F50 Medical special turning and milling machine
F50 Medical special turning and milling machine
F50 Medical special turning and milling machine
F50 Medical special turning and milling machine
F50 Medical special turning and milling machine
Specifications
Brand Name :
GUANGLIJIN
Model Number :
F50 Medical special turning and milling machine
Certification :
CE Certificate
Place of Origin :
China
MOQ :
1
Payment Terms :
T/T
Supply Ability :
100 units/month
Delivery Time :
30 days
Packaging Details :
Fumigation wooden frame - in line with international standards
Description

Technical Parameters:

No.ItemDetails
1B axis reducerAlpha, Germanyrated torque 88.9n.m,
Instaneous max. torque 312n.m,
Rated speed 43 rpm, max. speed 85 rpm
2C axis motorspeed 3000rpmrated torque 15n.m
3Transmission componentsRexroth, GermanyRepeatability: +/-0.003mm
4OperationSYNTEC system220MA-10.4 inch screen operation box,
max. extending 600mm on width at left side

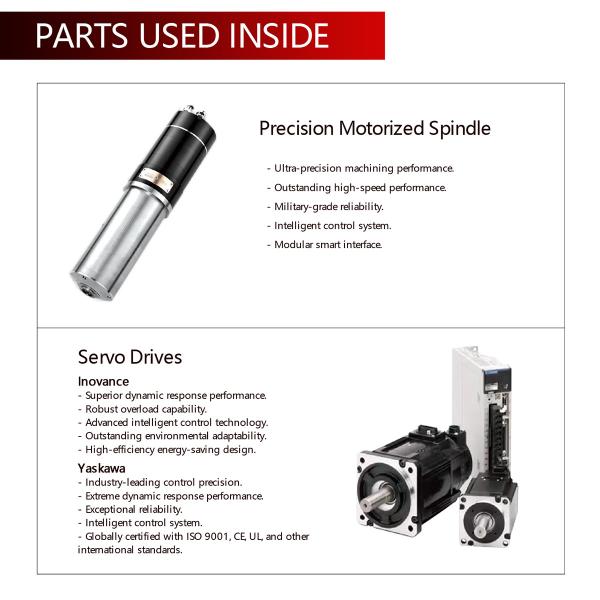

5Servo motorYaskawa, Japan400w/ 750w
6Spindleelectric8.0kw, max. speed 36000 rpm
water cooling with flow-alarm
7Tool magazineservo-driveUp to 16 milling tools and 4 turning tools
8Tool calibrationautomatic setting50 - 200mm/min, repeatability: 0.002mm
9Tool holder HSK-E32
10Collet chuck ER-20
11Lubrication Timing automatic oiling
12Working flatness +/-0.005mm
13X axis stroke 400mm
14Y axis stroke 155mm
15Z axis stroke 235mm
16Body weight 1.5 tons
17Front doorpenumatic drivingextending 600mm upward when opened
18Layout (mm)main bodymin.: 1100 width*1300 depth*2100 height
max.: 2400 width*1300 depth*2700 height
19Power requirementthree-phase380v/50hz
20Feedingautomatic feedingPenumatic driving, extended 700mm on width at right side
21Collectingautomatic collectingPenumatic driving

F50 Medical special turning and milling machine

Support and Services:

Technical support
Installation
Training
Maintenance
Troubleshooting
Software upgrade

Packing and Shipping:

Fumigation wooden case by sea or by air

FAQ:

Q: Are you a dealer or manufacturer?
A: We, Guanglijin, is a manufacturer of CAD/CAM CNC machine with over 20 years experience.
Q: Where are you from?
A: We are from Shenzhen China, one of the most creative city in the world.
Q: Do you provide overseas support or service?
A: Yes, we have a technican team which can travel abroad to do global service and support.
Q: Does this machine come with any certification?
A: Our machines are CE certificated.
