4 Axis Cnc Milling Machine Dental Laboratory
4 Axis Cnc Milling Machine Dental Laboratory
Specifications
Brand Name :
GUANGLIJIN
Model Number :
F50 Medical special turning and milling machine
Place of Origin :
China
Certification :
CE Certificate
MOQ :
1
Packaging Details :
Fumigation wooden frame - in line with international standards
Delivery Time :
30 days
Payment Terms :
T/T
Supply Ability :
100 units/month
Description

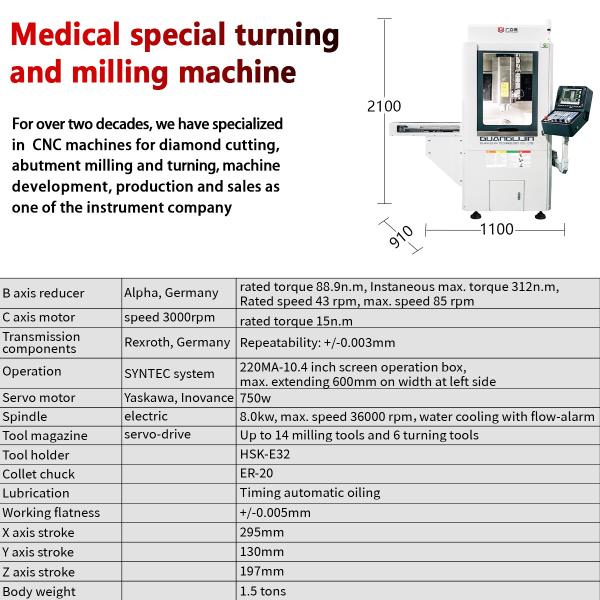

Technical Parameters:

No. Item Details
1 B axis reducer Alpha, Germany rated torque 88.9n.m,
Instaneous max. torque 312n.m,
Rated speed 43 rpm, max. speed 85 rpm
2 C axis motor speed 3000rpm rated torque 15n.m

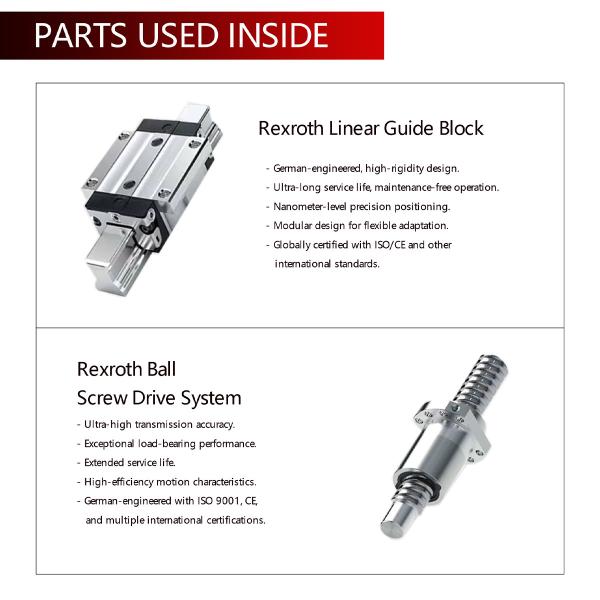

3 Transmission components Rexroth, Germany Repeatability: +/-0.003mm
4 Operation SYNTEC system 220MA-10.4 inch screen operation box,
max. extending 600mm on width at left side

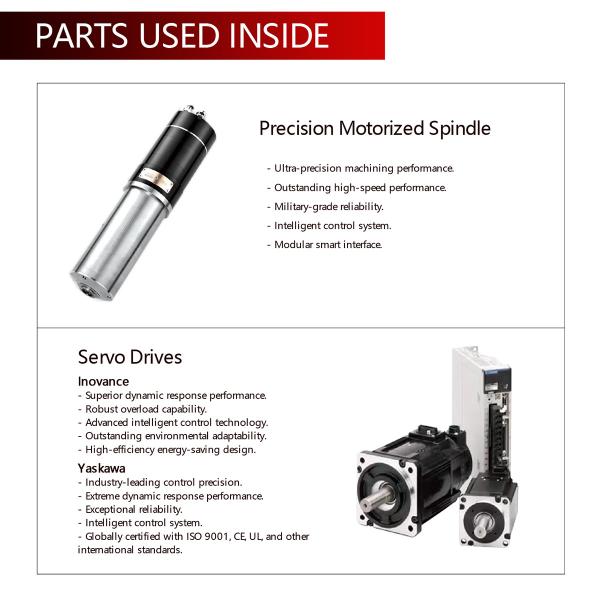

5 Servo motor Yaskawa, Japan 400w/ 750w
6 Spindle electric 8.0kw, max. speed 36000 rpm
water cooling with flow-alarm
7 Tool magazine servo-drive Up to 16 milling tools and 4 turning tools
8 Tool calibration automatic setting 50 - 200mm/min, repeatability: 0.002mm
9 Tool holder HSK-E32
10 Collet chuck ER-20
11 Lubrication Timing automatic oiling
12 Working flatness +/-0.005mm
13 X axis stroke 400mm
14 Y axis stroke 155mm
15 Z axis stroke 235mm
16 Body weight 1.5 tons
17 Front door penumatic driving extending 600mm upward when opened
18 Layout (mm) main body min.: 1100 width*1300 depth*2100 height
max.: 2400 width*1300 depth*2700 height
19 Power requirement three-phase 380v/50hz
20 Feeding automatic feeding Penumatic driving, extended 700mm on width at right side
21 Collecting automatic collecting Penumatic driving

4 Axis Cnc Milling Machine Dental Laboratory4 Axis Cnc Milling Machine Dental Laboratory

Support and Services:

Technical support
Installation
Training
Maintenance
Troubleshooting
Software upgrade

Packing and Shipping:

Fumigation wooden case by sea or by air

FAQ:

Q: Are you a dealer or manufacturer?
A: We, Guanglijin, is a manufacturer of CAD/CAM CNC machine with over 20 years experience.
Q: Where are you from?
A: We are from Shenzhen China, one of the most creative city in the world.
Q: Do you provide overseas support or service?
A: Yes, we have a technican team which can travel abroad to do global service and support.
Q: Does this machine come with any certification?
A: Our machines are CE certificated.
