Eight Axis Jewelry Making Machine For Versatile Cnc Gold Bangles Machine
Eight Axis Jewelry Making Machine For Versatile Cnc Gold Bangles Machine
Specifications
Brand Name :
GUANGLIJIN
Model Number :
G8-380 Jewelry Carving And Milling Eight Axis Machine
Place of Origin :
China
Certification :
CE Certificate
MOQ :
1
Packaging Details :
Fumigation wooden frame - in line with international standards
Delivery Time :
30 days
Payment Terms :
T/T
Supply Ability :
100 units/month
Description

Technical Parameters:

No. Item Details
1 W axis reducer Alpha, Germany Rated torque 167.3n.m,
Instaneous max. torque 585.2n.m,
Rated speed 43 rpm, max. speed 85 rpm
2 B axis reducer Alpha, Germany Rated torque 88.9n.m,
Instaneous max. torque 312n.m,
Rated speed 43 rpm, max. speed 85 rpm
3 C axis reducer Alpha, Germany Rated torque 88.9n.m,
Instaneous max. torque 312n.m,
Rated speed 43 rpm, max. speed 85 rpm
4 Z2 axis Rexroth, Germany Repeatability: +/-0.005mm

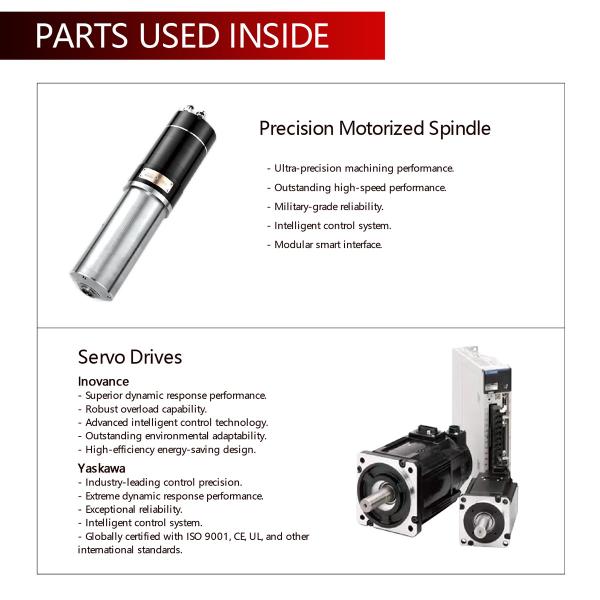

5 8th axis second spindle electric 4.0kw, max. speed 26000 rpm,
6 additional tools
max. dia. of round cutter: 70mm
min. dia. of round cutter: 40mm
6 Transmission components Rexroth, Germany Repeatability: +/-0.005mm
7 Operation SYNTEC system 220MB-E5 inch screen operation box,
max. extending 600mm on width at left side
8 Servo motor 200w/400w/750w
9 Main spindle electric 3.7kw, max. speed 40000 rpm
water cooling with flow-alarm
10 Tool magazine servo-drive Up to 15 tools for vertical main spindle
11 Tool holder ISO20
12 Collet chuck ER-16
13 Lubrication Timing automatic oiling
14 Working flatness +/-0.005mm
15 X1 axis stroke 380mm
16 X2 axis stroke 80mm
17 Y axis stroke 50mm
18 Z1 axis stroke 90mm
19 Body weight 1.7 tons
20 Front door sliding door
21 Layout (mm) main body 1600 width*1300 depth*2050 height
22 Power requirement three-phase 380v/50hz
Eight Axis Jewelry Making Machine For Versatile Cnc Gold Bangles Machine

Support and Services:

Technical support
Installation
Training
Maintenance
Troubleshooting
Software upgrade

Packing and Shipping:

Fumigation wooden case by sea or by air

FAQ:

Q: Are you a dealer or manufacturer?
A: We, Guanglijin, is a manufacturer of CAD/CAM CNC machine with over 20 years experience.
Q: Where are you from?
A: We are from Shenzhen China, one of the most creative city in the world.
Q: Do you provide overseas support or service?
A: Yes, we have a technican team which can travel abroad to do global service and support.
Q: Does this machine come with any certification?
A: Our machines are CE certificated.
