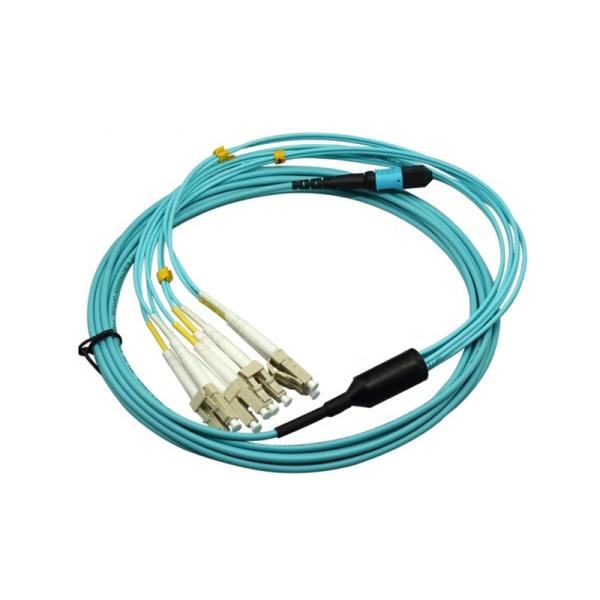

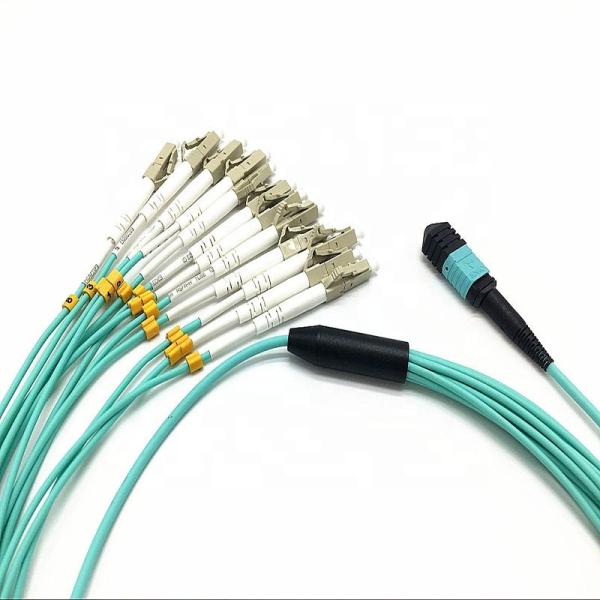

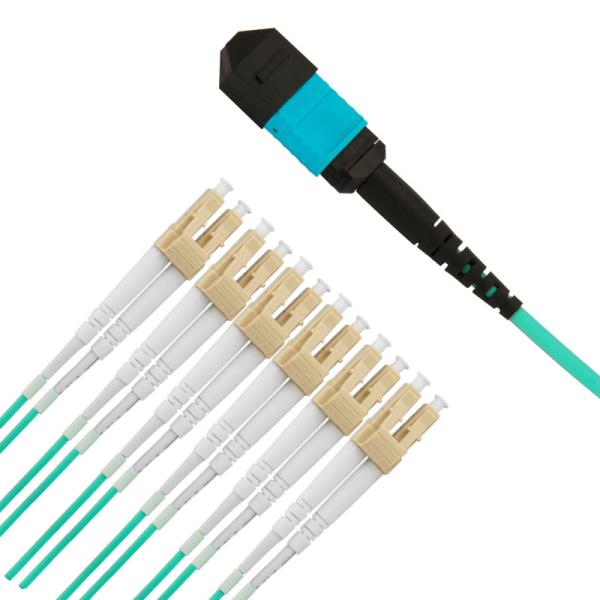

OM4 Type MMF-MPO-LC 12 Fiber core female-Female Connector Type B polarity Harness Mpo Patch Cord Cable
OM4 Type MMF-MPO-LC 12 Fiber core female-Female Connector Type B polarity Harness Mpo Patch Cord Cable
OM4 Type MMF-MPO-LC 12 Fiber core female-Female Connector Type B polarity Harness Mpo Patch Cord Cable
OM4 Type MMF-MPO-LC 12 Fiber core female-Female Connector Type B polarity Harness Mpo Patch Cord Cable
OM4 Type MMF-MPO-LC 12 Fiber core female-Female Connector Type B polarity Harness Mpo Patch Cord Cable
OM4 Type MMF-MPO-LC 12 Fiber core female-Female Connector Type B polarity Harness Mpo Patch Cord Cable
OM4 Type MMF-MPO-LC 12 Fiber core female-Female Connector Type B polarity Harness Mpo Patch Cord Cable
OM4 Type MMF-MPO-LC 12 Fiber core female-Female Connector Type B polarity Harness Mpo Patch Cord Cable
OM4 Type MMF-MPO-LC 12 Fiber core female-Female Connector Type B polarity Harness Mpo Patch Cord Cable
OM4 Type MMF-MPO-LC 12 Fiber core female-Female Connector Type B polarity Harness Mpo Patch Cord Cable
Specifications
Brand Name :
HODCY
Model Number :
HDS MPO to 12LC
Certification :
CE ROHS
Place of Origin :
CHINA
MOQ :
100PCS
Price :
6.0USD/PCS
Payment Terms :
T/T, Western Union, MoneyGram
Supply Ability :
50000 Pieces per Week
Delivery Time :
3-5 days
Packaging Details :
1PCS: 26*22*4cm ; 50PCS :65*43*38cm/9.38KGS
Product name :
MTP/MPO Trunk Cable
Application :
40G QSFP+ SR Module
Connector :
MPO/MTP
Fiber Type :
OM3 OM4
Wavelength :
1260 to 1650nm
Cable Diameter :
0.9/2.0/3.0 mm
Storage temperature :
- 45~+85℃
Return loss :
≥55dB
Cable Jacket :
LSZH Bunch
Description
Product Features:

High Performance in IL & RL

4,8,12 and 24 fiber connector terminations and assemblies

Designed for low loss and standard loss SM and MM applications

Economical solution for mass-termination of fiber

Suitable for MPO/MTP application

Ruggedized round cable, oval cable and bare ribbon options available

Color coded housings available to differentiate fiber type, polish type and/or connector grade

Compliant to directive 200/95/EC(RoHS)

MPO connector complies with IEC-61754-7

Specification:

MTP/MPO Specifications:

Type Single Mode Single Mode Multi Mode
(APC Polish) (UPC Polish) (PC Polish)
Fiber Count 8,12,24 etc. 8,12,24 etc. 8,12,24 etc.
Fiber Type G652D,G657A1 etc. G652D,G657A1 etc. OM1,OM2,OM3 etc.
Maximum Insertion Loss Elite Standard Elite Standard Elite Standard
Low Loss Low Loss Low Loss
≤0.35 dB ≤0.75dB ≤0.35 dB ≤0.75dB ≤0.35 dB ≤0.60dB
Return Loss ≥60 dB ≥60 dB NA
Durability ≥500 times ≥500 times ≥500 times
Operating Temperature -40℃ ~ +80℃ -40℃ ~ +80℃ -40℃ ~ +80℃
Test Wavelength 1310nm 1310nm 1310nm
Application

Data communication network

Optical System Access network

Storage area networking fiber channel

High density architectures

Note: Maximum Bandwidths of Different Multimode Fibers
OM1 – 62.5/125um – 10GBit up to 33 meters (108 feet)
OM2 – 50/125um – 10GBit up to 82 meters (270 feet)
OM3 – 50/125um, Laser Optimized – 10GBit up to 300 meters (984 feet)
OM4 – 50/125um, Laser Optimized – 10GBit up to 550 meters (1805 feet)

OM4 Type MMF-MPO-LC 12 Fiber core female-Female Connector Type B polarity Harness Mpo Patch Cord Cable

Order Information:

Description Fiber Type MPO LC MPO Polarity
MPO to 8LC, OM3, Fiber Patch Cord OM3 8core MPO 8LC Polarity A/B Optional
MPO to 12LC, OM3, Fiber Patch Cord OM3 12core MPO 12LC Polarity A/B Optional
MPO to 24LC, OM3, Fiber Patch Cord OM3 24core MPO 24LC Polarity A/B Optional
MPO to 8LC, OM4, Fiber Patch Cord OM4 8core MPO 8LC Polarity A/B Optional
MPO to 12LC, OM4, Fiber Patch Cord OM4 12core MPO 12LC Polarity A/B Optional
MPO to 24LC, OM4, Fiber Patch Cord OM4 24core MPO 24LC Polarity A/B Optional
MPO to 8LC, SMF, Fiber Patch Cord SMF(9/125um) 8core MPO 8LC Polarity A/B Optional
MPO to 12LC, SMF, Fiber Patch Cord SMF(9/125um) 12core MPO 12LC Polarity A/B Optional
MPO to 24LC, SMF, Fiber Patch Cord SMF(9/125um) 24core MPO 24LC Polarity A/B Optional
