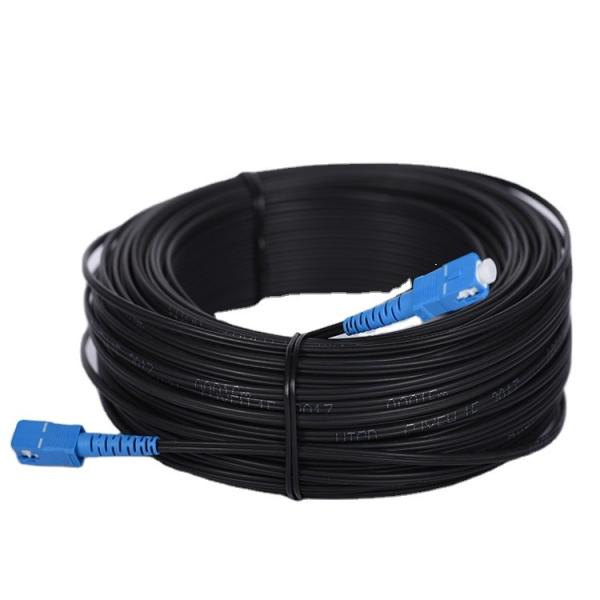

GJYXFCH-1B6-SM 200M 1 core 2mm*5mm FRP Steel wire Indoor Outdoor Fiber Patch Cord FTTH Fiber Optic Cable
GJYXFCH-1B6-SM 200M 1 core 2mm*5mm FRP Steel wire Indoor Outdoor Fiber Patch Cord FTTH Fiber Optic Cable
GJYXFCH-1B6-SM 200M 1 core 2mm*5mm FRP Steel wire Indoor Outdoor Fiber Patch Cord FTTH Fiber Optic Cable
GJYXFCH-1B6-SM 200M 1 core 2mm*5mm FRP Steel wire Indoor Outdoor Fiber Patch Cord FTTH Fiber Optic Cable
GJYXFCH-1B6-SM 200M 1 core 2mm*5mm FRP Steel wire Indoor Outdoor Fiber Patch Cord FTTH Fiber Optic Cable
GJYXFCH-1B6-SM 200M 1 core 2mm*5mm FRP Steel wire Indoor Outdoor Fiber Patch Cord FTTH Fiber Optic Cable
Specifications
Brand Name :
hochiry
Model Number :
FTTH Fiber Optic Cable
Certification :
CE ROHS
Place of Origin :
CHINA
MOQ :
100 Roll
Price :
0.07USD/Meter
Payment Terms :
T/T, Western Union, MoneyGram
Supply Ability :
1000 Kilometer/Kilometers per Month
Delivery Time :
1-3 days
Packaging Details :
200M per Roll
Fiber type :
G652D ,G657A ,G657A2
Cable Structure: :
Self-support tight buffer
Installation tensile: :
1200N
Application :
FTTH FTTB FTTX Network
Strength member :
steel wire/FTTH Fiber Optic Cable
Length :
50M or customized
Jacket material :
LSZH
Connector :
SC/ST/LC
Fiber count :
1 Cores/Fibers
Description

GJYXFCH FTTH Drop Cable Self Supported Tube LSZH Jacket Cable optics fibers G652D G657A1 G657A2 drop cable

FTTH Cable directly connected to their homes, their bandwidth, wavelength and transmission technology type are not restricted. The optical fiber unit id positioned in the center. Two parallel strength member are placed at the two sides, then the cable is completed with black LSZH sheath.

Low insertion loss, high return loss
Available FTTH Drop cable diameters: Φ2.0*5.0mm; Φ2.0*3.0mm
Connector Types: LC, FC, SC,ST for option
Fiber Mode: G652D, G.657A1, G657A2, G657B3
Ferrule Interface Type: UPC to UPC, APC to APC, APC to UPC
Compliant to IEC standard
Certification:ISO9001:2008, ROHS

Cable construction details

No.of fiber 1F-4F
Gross weight 8.5kg/km

SM fiber		 Fiber type 9/125 MFD 8.6～9.8um
Cladding diameter 125±0.7um Cladding non-circularity ≤0.7%
Coating
diameter		 245±5um Fiber color standard spectrum
Strength member Material FRP / Steel wire Color white
Diameter 0.5mm Qty 2
Out sheath Material LSZH Color White / Black
Diameter 2.0 (±0.1) *3.0mm (±0.1) Thickness ≧0.5mm

Cable mechanical and environment characteristics

Tensile strength Long term(N) 40N
Short term(N) 80N
Crush load Long term(N) 500N/100mm
Short term(N) 1000N/100mm
Bending radius Dynamic 20D
Static 10D
Temperature -20℃～+70℃

Fiber characteristics

Fiber style Unit SM G652D MM 50/125 OM3-150
Condition mm 1310/1550 850/1300 850/1300
Attenuation dB/km ≤0.36/0.23 ≤3.0/1.0 ≤3.0/1.0
Cladding diameter um 125±1 125±1 125±1
Cladding non-circularity % ≤1.0 ≤1.0 ≤1.0
Coating diameter um 242±7 242±7 242±7

GJYXFCH-1B6-SM 200M 1 core 2mm*5mm FRP Steel wire Indoor Outdoor Fiber Patch Cord FTTH Fiber Optic CableGJYXFCH-1B6-SM 200M 1 core 2mm*5mm FRP Steel wire Indoor Outdoor Fiber Patch Cord FTTH Fiber Optic Cable
