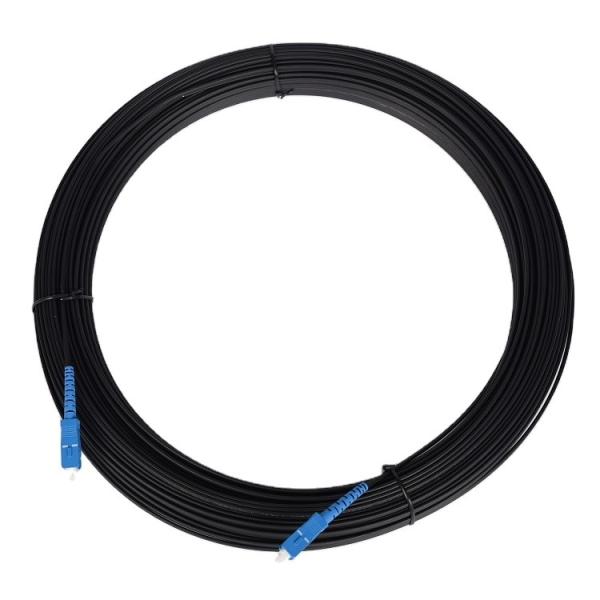

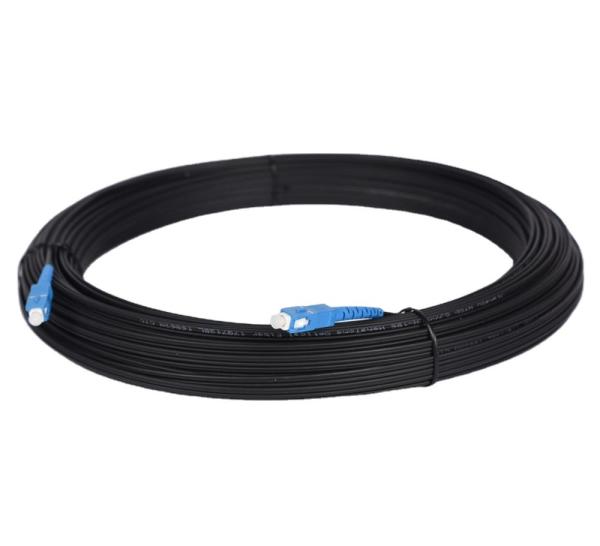

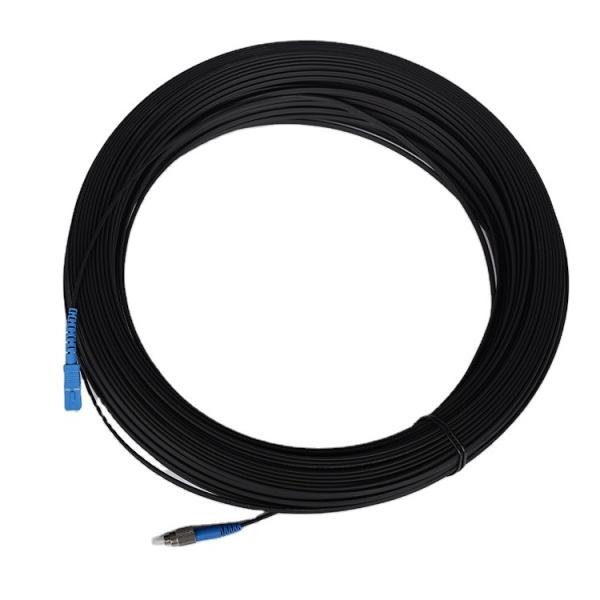

GJYXFCH-1B6-SM 50M Self Supported Tube LSZH Jacket Cable Optics Fibers G652D G657A1 G657A2 FTTH Drop Cable
GJYXFCH-1B6-SM 50M Self Supported Tube LSZH Jacket Cable Optics Fibers G652D G657A1 G657A2 FTTH Drop Cable
GJYXFCH-1B6-SM 50M Self Supported Tube LSZH Jacket Cable Optics Fibers G652D G657A1 G657A2 FTTH Drop Cable
GJYXFCH-1B6-SM 50M Self Supported Tube LSZH Jacket Cable Optics Fibers G652D G657A1 G657A2 FTTH Drop Cable
GJYXFCH-1B6-SM 50M Self Supported Tube LSZH Jacket Cable Optics Fibers G652D G657A1 G657A2 FTTH Drop Cable
GJYXFCH-1B6-SM 50M Self Supported Tube LSZH Jacket Cable Optics Fibers G652D G657A1 G657A2 FTTH Drop Cable
GJYXFCH-1B6-SM 50M Self Supported Tube LSZH Jacket Cable Optics Fibers G652D G657A1 G657A2 FTTH Drop Cable
GJYXFCH-1B6-SM 50M Self Supported Tube LSZH Jacket Cable Optics Fibers G652D G657A1 G657A2 FTTH Drop Cable
Specifications
Brand Name :
hochiry
Model Number :
GJYXFCH-1B6 FTTH-001-SM 50М
Certification :
CE ROHS
Place of Origin :
CHINA
MOQ :
100 Roll
Price :
0.07USD/Meter
Payment Terms :
T/T, Western Union, MoneyGram
Supply Ability :
1000 Kilometer/Kilometers per Month
Delivery Time :
1-3 days
Packaging Details :
50M per Roll
Product name :
FTTH Indoor Cable
Fiber type :
G652D ,G657A ,G657A2
Cable Structure: :
Self-support tight buffer
strength member :
FRP (Fiber glass reinforced plastic)
Installation tensile: :
1200N
Material of jacket: :
UV and Flame resistant LSZH
Fiber Amount :
1 fiber
LENGTH: :
50M Or Customized
CONNECTOR :
SC/ST/LC
Application :
FTTH FTTB FTTX Network
Description

GJYXFCH-1B6-SM 50M Self Supported Tube LSZH Jacket Cable Optics Fibers G652D G657A1 G657A2 FTTH Drop Cable

FTTH Cable directly connected to their homes, their bandwidth, wavelength and transmission technology type are not restricted. The optical fiber unit id positioned in the center. Two parallel strength member are placed at the two sides, then the cable is completed with black LSZH sheath.

· Suitable for limited space field of the branch, indoor series;
· Laid to facilitate construction operations;part and the cable;
· Jacket use low smoke, halogen-free flame-retardant materials;
· Prevent lightning and strong electric environment;
· FRP strengthen the component materials.

Cable construction details

No.of fiber 1F-4F
Gross weight 8.5kg/km
SM fiber Fiber type 9/125 MFD 8.6～9.8um
Cladding diameter 125±0.7um Cladding non-circularity ≤0.7%
Coating 245±5um Fiber color standard spectrum
diameter
Strength member Material FRP / Steel wire Color white
Diameter 0.5mm Qty 2
Out sheath Material LSZH Color White / Black
Diameter 2.0 (±0.1) *3.0mm (±0.1) Thickness ≧0.5mm

Cable mechanical and environment characteristics

Tensile strength Long term(N) 40N
Short term(N) 80N
Crush load Long term(N) 500N/100mm
Short term(N) 1000N/100mm
Bending radius Dynamic 20D
Static 10D
Temperature -20℃～+70℃

Fiber characteristics

Fiber style Unit SM G652D MM 50/125 OM3-150
Condition mm 1310/1550 850/1300 850/1300
Attenuation dB/km ≤0.36/0.23 ≤3.0/1.0 ≤3.0/1.0
Cladding diameter um 125±1 125±1 125±1
Cladding non-circularity % ≤1.0 ≤1.0 ≤1.0
Coating diameter um 242±7 242±7 242±7

GJYXFCH-1B6-SM 50M Self Supported Tube LSZH Jacket Cable Optics Fibers G652D G657A1 G657A2 FTTH Drop Cable

GJYXFCH-1B6-SM 50M Self Supported Tube LSZH Jacket Cable Optics Fibers G652D G657A1 G657A2 FTTH Drop CableGJYXFCH-1B6-SM 50M Self Supported Tube LSZH Jacket Cable Optics Fibers G652D G657A1 G657A2 FTTH Drop CableGJYXFCH-1B6-SM 50M Self Supported Tube LSZH Jacket Cable Optics Fibers G652D G657A1 G657A2 FTTH Drop Cable
