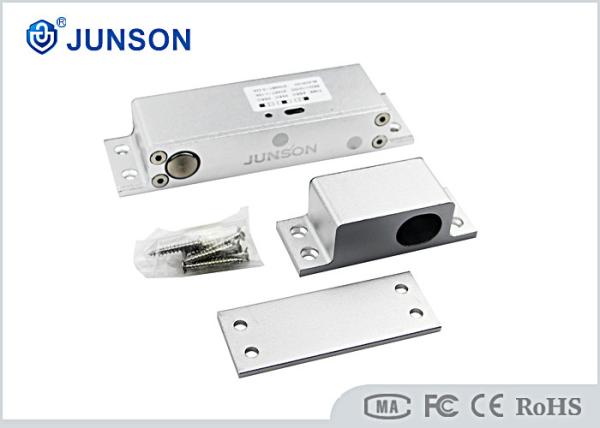

Fail Safe Electric Bolt lock for surface installation 2 wires, LED
Fail Safe Electric Bolt lock for surface installation 2 wires, LED
Fail Safe Electric Bolt lock for surface installation 2 wires, LED
Fail Safe Electric Bolt lock for surface installation 2 wires, LED
Specifications
Brand Name :
JUNSON
Model Number :
JS-1504N
Certification :
CE/ROHS/FCC
Place of Origin :
China
MOQ :
10pcs
Price :
negotiation
Payment Terms :
T/T, paypal or western Union in advance
Supply Ability :
30,000pcs per month
Delivery Time :
2-7 working days after received your payment
Packaging Details :
Packed in carton
Product Name :
Electric bolt lock
Holding force :
500kg
Power supply :
12V
Timer adjuster :
0-9S
Application :
Metal, glass, or wooden door
Feature :
Fail safe
Signal out :
N/A
Open sensor :
magnet switch sensor
Material :
Zinc Alloy
Suitable for :
Glass Door,/ wooden doors / metal doors,Secure Locking of furniture (Wooden & Aluminum& Metal Furniture frame),Access Control,External Installation For Narrow Door
Finish :
Surface Finished
Working temperature :
-20℃ ~ +65℃
Description

Model: JS-1504N

Specification:

Fail Safe: unlock when power off
Material size: Aluminum alloy
Lock Size: 150L*36W*26H (mm)
Magnet bracket: 85Lx32Wx26H(mm)
Lock pin: 15mmDIA,stainless steel out throw15mm
Voltage: DC12V
Current:

Start: 1.15A

Standby: 0.22A
Holding force 1000kg
Available for Wooden door, metal door, fireproof door
LED indicate Red to open, Green to lock
Auto relock Timer jumper adjustable (0/3/6S)
Surface Temp: ≦20℃
Induction Distance 8mm
Operating temp: -10~+25℃(14-131F)
Operating Humidity: 0~90%(non-condensing)
Face place material: Anodised Aluminium
Weight: 0.6kg
Standard Packing: 30pcs.
Carton size: 54*29*27 CM

Description:

Feature

▶Low Temperature, safe & Durable

▶Low Power, Environmental Protection

▶MOV Provides Reverse Current Protection

▶Special Designed Solenoid for Strength and Long Life with 500000 Operations

▶Superior Strength Aluminum Alloy, Solid Stainless Steel Bolt

▶With Led indication, red to open, green to lock

▶Easy to install, no need punching in the door frame.

▶CE Certificate by European Union, MA China Public Security office

Fail Safe Electric Bolt lock for surface installation 2 wires, LED

Quality Guarantee:

Warranty Service will be honored if the damage is not caused by human, JUNSON Provides 2 years

warranty for relative products. On the contrary, JUNSON will charge extra if repair. More information,

please browse our service center.

We offer many Electronic lock, like: Magnetic door lock, Electric deadbolt lock, Electric strike,

Electric bolt lock, Electronic lock. Door lock. Ac

FAQ

Q:How do I pay for my purchase?
A: we accept the following payment methods: cridet card; moneybooker;T/T;western union.

Q:How much does it cost to ship to my country?
A:Please tell us your receive goods address, we will check the shipping cost for your reference

Q:Is there any tracking Number for my item?

A: Yes, we ship every order with their Tracking Number, and you can view the shipment staus on the corresponding website.

Q:Does this product come with retail package?

A: We have declared the packing detail on the description of each product, please check it, thank you!

Q:I am a reseller,I would like to buy many pieces of your item, what's the wholesale price?

A: Hi,thanks for your inquiry, if you would like to buy large quantity, please send email to us, we will give you the best price, thanks!
