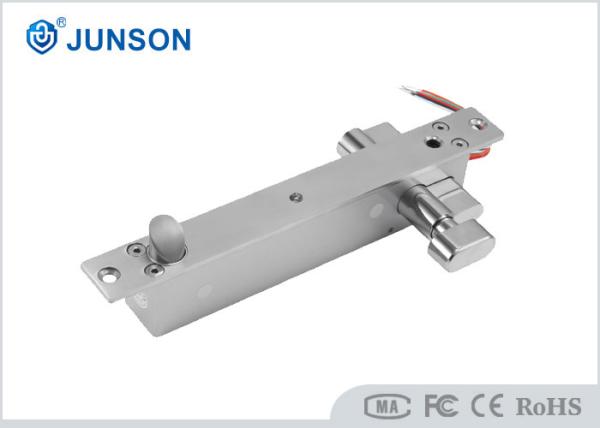

8mm Induction Distance Electronic Dead Bolt Door Lock JS-132SL For Self - Service Cabinet
8mm Induction Distance Electronic Dead Bolt Door Lock JS-132SL For Self - Service Cabinet
Specifications
Brand Name :
JUNSON
Model Number :
JS-132SL
Certification :
CE/ROHS/FCC
Place of Origin :
China
MOQ :
10pcs
Price :
negotiation
Payment Terms :
T/T, paypal or western Union in advance
Supply Ability :
30,000pcs per month
Delivery Time :
2-7 working days after received your payment
Packaging Details :
Packed in carton
Standby current :
0.15A
Lock Size :
132L*24W*34H (mm)
Weight :
1kg/pcs
Face plate size :
192L*25W*3H (mm)
Timer adjuster :
0/3/6/9S
Warranty :
2 years
Induction Distance :
8mm
Solenoid :
Continuous duty
Standard Packing :
20 pcs/ carton
Face place material :
Zinc alloy and Stainless steel
Voltage :
DC12V / or 24V to be customized
Holding force :
1000kg
Description

Fail Secure Electric Bolt lock Special for self-service Cabinet

Model: JS-132SL

Specification:

Fail Secure: lock when power off
Lock body size: 132L*24W*34H (mm)
Faceplate size: 192L*25W*3H (mm)
Material: Zinc alloy and Stainless steel
LED indication Red to open, Green to lock
Magnet bracket: 90Lx 25Wx3H(mm)
Lock pin: 12mmDIA,stainless steel out throw15mm
Voltage: DC12V / 24V (customize )
Current:

Start: 1.1A

Standby: 0.15A
Holding force 1000kg
Lock sensor feedback NO or NC / Com
Door sensor feedback NO / NC /COM
Solenoid: Continuous duty
Auto relock Timer jumper adjustable (0/3/6/9S)
Temp rise: ≦10℃
Induction Distance 8mm
Operating temp: -20~+45℃
Operating Humidity: 0~90%(non-condensing)
Face place material: 3mm thickness stainless steel
Weight: 1kg
Standard Packing: 20pcs.
Carton size: 45.5Lx29Wx22H(cm)



8mm Induction Distance Electronic Dead Bolt Door Lock JS-132SL For Self - Service Cabinet

Feature

▶Low Temperature, safe & Durable

▶Low Power, Environmental Protection

▶MOV Provides Reverse Current Protection

▶With open wires, can open lock directly by short with black wire

▶With Led indication, red to open, green to lock

▶Request-to-open, Auto-relock if no Action within 5 sec

▶CE Certificate by European Union, MA China Public Security office

Usage scenarios:

8mm Induction Distance Electronic Dead Bolt Door Lock JS-132SL For Self - Service Cabinet
8mm Induction Distance Electronic Dead Bolt Door Lock JS-132SL For Self - Service Cabinet


FAQ

Q:How do I pay for my purchase?
A: we accept the following payment methods: cridet card; moneybooker;T/T;western union.

Q:How much does it cost to ship to my country?
A:Please tell us your receive goods address, we will check the shipping cost for your reference

Q:Is there any tracking Number for my item?

A: Yes, we ship every order with their Tracking Number, and you can view the shipment staus on the corresponding website.




Quality Guarantee :

Warranty Service will be honored if the damage is not caused by human, JUNSON Provides 2 years warranty
for relative products. On the contrary, JUNSON will charge extra if repair. More information, please browse our
service center.

We offer many Electronic lock, like: Magnetic door lock, Electric deadbolt lock, Electric strike, Electric bolt lock,
Electronic lock. Door lock. Ac
