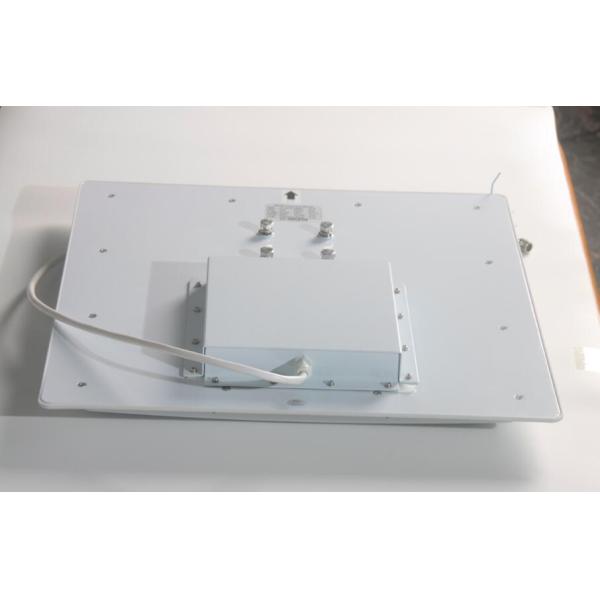

Long Range 10m UHF RFID Reader 902MHz 928MHz 12dbi Polarized Antenna
Long Range 10m UHF RFID Reader 902MHz 928MHz 12dbi Polarized Antenna
Specifications
Brand Name :
Junson
Model Number :
JS-UHFR102
Certification :
CE/FCC
Place of Origin :
Shenzhen,China
MOQ :
5pcs
Price :
negotiation
Payment Terms :
T/T, paypal or western Union in advance
Supply Ability :
5000 pcs per month
Delivery Time :
2-7 working days after received your payment
Packaging Details :
Packed in carton
Frequency :
902~928MHz
Size :
445mmx445mmx55mm
Reading Range :
0-10m
Antenna :
12dbi linearized polarized antenna
Protocol :
ISO18000-6B, ISO18000-6C(EPC C1G2)
Voltage :
+9 DC power supply
Weight :
4kg
Description

Long Range 10m UHF RFID Reader 902MHz 928MHz 12dbi Polarized Antenna

10m Long Range UHF RFID Reader

Long Distance UHF RFID Reader

Model:JS-UHFR102

Features:

※ Self-intellectual property;
※ Support ISO18000-6B, ISO18000-6C(EPC C1G2) protocol tag;
※ 902~928MHz frequency band(optional);
※ FHSS or fixed Frequency transmission;
※ RF output power up to 30dbm(adjustable);
※ 12dbi antenna optional.Up to 12m effect distance;
※ Support auto-running, interactive and trigger-activating work mode;
※ Low power dissipation with single +9 DC power supply;
※ Support RS232, RS485, Wiegand interface;
※ Size: 445mmx445mmx55mm
※ Weight: 4kg

Parameter for build-in Antenna,

1.12dbi linearized polarized antenna

2. Read distance 0-10m Polarization Horizontal or Vertical

3. Gain(dBi) 12

4. Half-power beam width(°) Hor:40 Ver:40

5. Front-to-back ratio(dB) ≥25

6. Impedance(Ω) 50

7. VSWR ≤1.3

8. Maximum input power(W) 50

9. Lightning protection DC Ground

Interface

Item Comment
Red +9V
Black GND
Yellow Wiegand DATA0
Blue Wiegand DATA1
Purple RS485 R+
Orange RS485 R-
Brown GND
White RS232 RXD
Green RS232 TXD
Grey Trigger input(TTL level)

Long Range 10m UHF RFID Reader 902MHz 928MHz 12dbi Polarized Antenna

FAQ:

Q: Are you trading company or manufacturer ?
A: We are factory with trading department

Q: How long is your delivery time?
A: Generally it is 3-7 days if the goods are in stock. Or it is 8-20 days if the goods are not in stock, it is according to quantity.

Q: How do I pay for my purchase?
A: We accept the following payment methods: credit card; T/T; Paypal; western union.

Q: What is your terms of payment ?
A: Payment<=3000USD, 100% in advance.
B: Payment>=3000USD, 30% T/T in advance ,balance before shippment.
