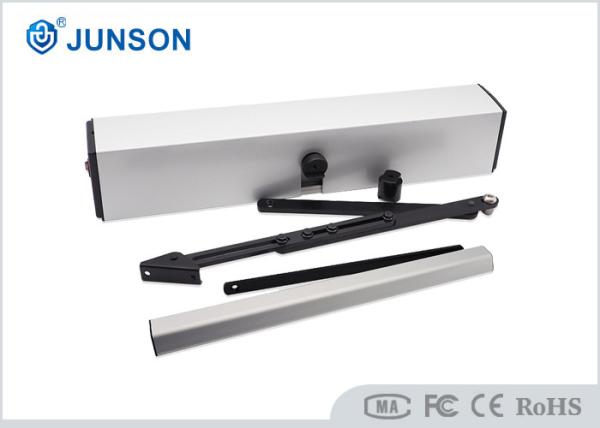

IP12D Auto Door Opener Aluminum Alloy Housing 240VAC 30s Holding Time
IP12D Auto Door Opener Aluminum Alloy Housing 240VAC 30s Holding Time
IP12D Auto Door Opener Aluminum Alloy Housing 240VAC 30s Holding Time
IP12D Auto Door Opener Aluminum Alloy Housing 240VAC 30s Holding Time
Specifications
Brand Name :
Junson
Model Number :
JS-DWS-100
Certification :
CE/ROSH
Place of Origin :
CHINA
MOQ :
1pcs
Price :
negotiation
Payment Terms :
T/T, Western Union,PayPal
Supply Ability :
10,000pcs per month
Delivery Time :
1-7 working days once the payment received
Packaging Details :
Packed in carton
Device dimension :
520*95*82（mm）

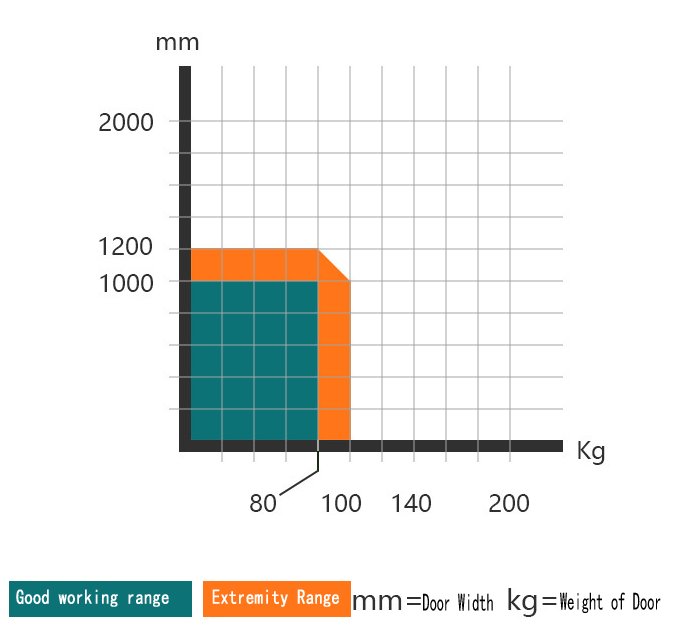

Door leaf Width :
<1200（mm）
Door leaf weight :
<1000（kg）
Materials :
Aluminum Alloy Housing
Voltage :
100-240（V AC）
Adjustable Open time :
3~7S /90°
Adjustable holding time :
1-30seconds
Adjustable close time :
3~7S/90°
Max door frame depth :
450（mm）
Max opening angle :
120°
Description

Model: DSW-100

Parameter List

Device dimension: 520mm * 95mm*82mm
Door leaf Width: <1200 mm
Door leaf weight: < 100Kg
Materials: Aluminum Alloy Housing
Voltage: 100V - 240V AC
Adjustable Open time 3~7S /90°
Adjustable holding time 1-30S
Adjustable close time 3~7S/90°
Max door frame depth 450mm
Max opening angle: 120°
Environment Temperature: -20 ~ 50 ℃
Protection class: IP12D
Net Weight: 6.5Kg
Packing: 4 sets / Carton
Carton Weight 32Kg / Carton

IP12D Auto Door Opener Aluminum Alloy Housing 240VAC 30s Holding Time

Feature:

  • Strength Aluminum Alloy housing, Modelling Concise, Esthetic and Practical.
  • Available for wooden door, frame metal door, fire proof door, used in offical, Hospital, or Apartment.
  • Available for swing-in or swing-out door.
  • Available door weight is 70-120cm, and door leaf weight up to 100kg.
  • With remote control, distance is 10M. 4 models for setting
  • Input is 100-240V, wide voltage, available for any country.
  • Can be worked with any kind of access controller.
  • Have two door leafs interlock or synchronization function.
  • Have sensor feedback for checking opener status.

IP12D Auto Door Opener Aluminum Alloy Housing 240VAC 30s Holding Time

Why choose us?

1. Junson security specail made all kindly of locks, like magnetic lock, bolt lock, soleniod lock since 2004,

2. Junson security have strict quality control system during materials, production and leaving factory

3. All productions will be given 3 years warranties, and whole life technical supporting

FAQ

Q: How do I pay for my purchase?
A: we accept the following payment methods: cridet card; moneybooker;T/T;western union.

Q: Is there any tracking Number for my item?

A: Yes, we ship every order with their Tracking Number, and you can view the shipment staus on the corresponding website.

Q: Does this product come with retail package?

A: We have declared the packing detail on the description of each product, please check it, thank you!
