Integrated GPS Smart Helmet For Mining Industry Safety Enhancement
Integrated GPS Smart Helmet For Mining Industry Safety Enhancement
Integrated GPS Smart Helmet For Mining Industry Safety Enhancement
Integrated GPS Smart Helmet For Mining Industry Safety Enhancement
Integrated GPS Smart Helmet For Mining Industry Safety Enhancement
Integrated GPS Smart Helmet For Mining Industry Safety Enhancement
Integrated GPS Smart Helmet For Mining Industry Safety Enhancement
Integrated GPS Smart Helmet For Mining Industry Safety Enhancement
Integrated GPS Smart Helmet For Mining Industry Safety Enhancement
Integrated GPS Smart Helmet For Mining Industry Safety Enhancement
Integrated GPS Smart Helmet For Mining Industry Safety Enhancement
Integrated GPS Smart Helmet For Mining Industry Safety Enhancement
Specifications
Brand Name :
ORIGIN
Model Number :
LY-H10PRO
Certification :
CE
Place of Origin :
China
MOQ :
1
Payment Terms :
T/T
Supply Ability :
1000000 per week
Delivery Time :
3-5days
Packaging Details :
brown box
User Interface :
Web-based
Installation :
Easy Installation
Real-Time Tracking :
Yes
Connectivity :
GPS, Cellular Network
Alerts :
Customizable Alerts
Compatibility :
Compatible with most vehicles
Geofencing :
Yes
Security Features :
Password Protection, Encryption
Power Source :
Battery or Vehicle Power
Application :
Vehicle Tracking
Data Storage :
Cloud-based
Accuracy :
Highly Accurate
Description

Enhance mining safety with our GPS - integrated Smart Helmet.

The GPS system provides detailed location information,

and the hard - hat is designed to protect miners from various hazards.

Product Features

  • Integrated GPS Smart Helmet For Mining Industry Safety Enhancement

    Audio and video calls

  • Integrated GPS Smart Helmet For Mining Industry Safety Enhancement

    Acquisition

  • Integrated GPS Smart Helmet For Mining Industry Safety Enhancement

    Personnel positioning

  • Integrated GPS Smart Helmet For Mining Industry Safety Enhancement

    Electronic fence

  • Integrated GPS Smart Helmet For Mining Industry Safety Enhancement

    Low battery alarm

  • Integrated GPS Smart Helmet For Mining Industry Safety Enhancement

    Hat removal alarm

  • Integrated GPS Smart Helmet For Mining Industry Safety Enhancement

    Danger rescue

  • Integrated GPS Smart Helmet For Mining Industry Safety Enhancement

    Silent alarm

  • Integrated GPS Smart Helmet For Mining Industry Safety Enhancement

    Track playback

Architecture diagram

Integrated GPS Smart Helmet For Mining Industry Safety Enhancement

Technical Parameters

Type Item Description

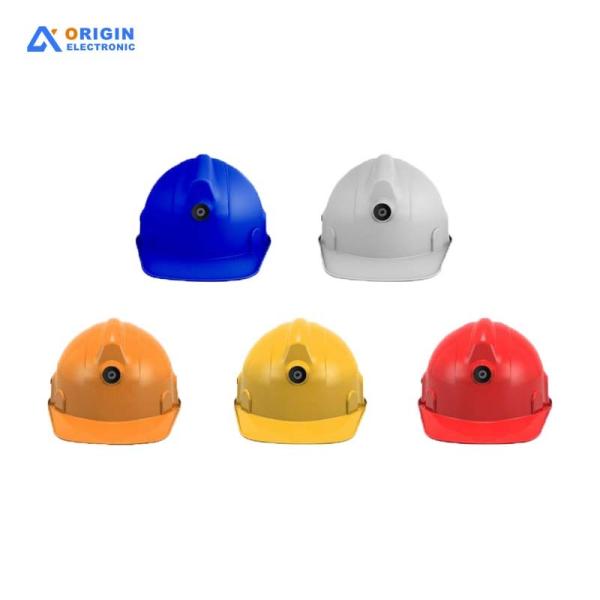

Color Color White, red, blue, yellow
Identification
  • Front reserved identification printing area
  • Side reserved identification printing area
  • Rear reserved identification printing area
Material ABS material
Size and Weight Size 304.7mm * 240.0mm * 165.4mm (length * width * height) Meet GB/T2811 - 2019 standard relevant safety helmet size regulations
Weight ≤540g
Material and Protection Performance Impact Absorption
Anti - penetration Designed according to GB/T2811 - 2019 standard
IP Rating On the basis of IP66, it can protect against alcohol spray
Drop Resistance Function does not fail after a 2 - meter drop
Calculation and Storage CPU UIS8910FF
RAM 128Mb
ROM 64Mb
System RTOS
Communication and Positioning Communication Band
  • FDD: B1 B3 B5 B7 B8 B20
  • TDD: B38 B39 B40 B41
  • GSM: Band B2/3/5/8 (900/1800MHz)
Positioning Support GPS/BeiDou
Antenna 1 main antenna + GPS ceramic antenna 1
External Interface Data and Charging Port
SIM Card Slot Support SIM card (tri - network)
Battery Battery Specification
  • Capacity: 3000mah
  • Non - removable
Button Reset button (hidden type)
Indicator Light Power
Accessories Data Cable
Battery Built - in: 3000mah (confirm supply cycle)
Lining 1 set (new lining confirm supply cycle)
Working Environment Working Temperature -10°C ~ 60°C
Working Humidity 10% ~ 60%

Application

Integrated GPS Smart Helmet For Mining Industry Safety Enhancement
