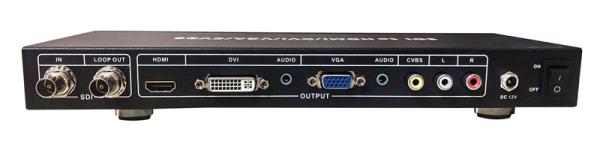

SDI to ALL Scaler Converter with SD-SDI, HD-SI and 3G-sDI input signals with auto-detection
SDI to ALL Scaler Converter with SD-SDI, HD-SI and 3G-sDI input signals with auto-detection
SDI to ALL Scaler Converter with SD-SDI, HD-SI and 3G-sDI input signals with auto-detection
SDI to ALL Scaler Converter with SD-SDI, HD-SI and 3G-sDI input signals with auto-detection
SDI to ALL Scaler Converter with SD-SDI, HD-SI and 3G-sDI input signals with auto-detection
SDI to ALL Scaler Converter with SD-SDI, HD-SI and 3G-sDI input signals with auto-detection
Specifications
Brand Name :
Novalink
Model Number :
SDI to all
Place of Origin :
China
MOQ :
1pcs
Payment Terms :
T/T, Western Union
Supply Ability :
2000pcs per month
Delivery Time :
1 working days
Packaging Details :
carton
Input port :
1x BNC (SD/HD/3G-SDI)
Output port :
1x BNC (SD/HD/3G-SDI bypass), 1x HDMI (Type A connector), 1xDVI with Audio, 1x VGA with Audio, 1x Composite with R/L
SDI Cable Distance :
3G up to 100m (BELDEN 1694A Cable), HD up to 200m (BELDEN 1694A Cable), SD up to 300m (BELDEN 1694A Cable).
Power Consumption :
5W
Weight :
750g
Operating Temperature :
0"C~40 C/32 "F-104 'F
Storage Temperature :
-20 °C~60"C/-4 "F~140 F
Relative Humidity :
0-90% RH (Non-condensing)
Description

Introduction:

The SDI to ALL Scaler Converter allows SD, HD and 3G-SDI signals to be shown on HDMI/DVI/VGA/Composite port display This means that it is now easier for professionals to distribute and extend their SDI signal while giving the ability to display work on these display. Further more, thanks to L/R audio outputs users can output analog audio formats while the loop-through 3G-SDI design benefits users by letting them simultaneous show content on both SDI and HDMI/DVI/VGA/Composite port displays.

Features:

Supports SD-SDI, HD-SI and 3G-sDI input signals with auto-detection;

Supports HDMI/DVI/VGA/Composite and SDI (bypass) output simultaneously;

SDI interface operates at bitrates of 2.970 Gbit/s, 2.970/1.001 Gbit/s,
1.485 Gbit/s, 1.485/1.001 Gbit/s and 270 Mb/s;
Supports SDI input/output distance up to 100 meters (3G-SDI), 200meters (HD-SDI), or 300 meters (SD-SDI)
Scale any SDI signal to HDMI/DVI/VGA/Composite:
1. HDMI/DVL/VGA timings: 1280x720,1920x1080,1024x768,1920x1200;
2.Composite format: PALNTSC:
Supports SDI input modes:
1. SD-SDI (SMPTE 259M.C.at bitrates of 270 Mbit/s)
2. HD-SDI (SMPTE 292M, at bitrates of 1.485 Gbit/s and 1.485/1.001
3. 3G-SDI (SMPTE 424M/425M-AB, at bitrates of 2.970 Gbit/s and Gbit/s) 2.970/1.001 Gbit/s).
Supports Black screen signal output;
Equalized and re-clocked loop output:
Alternative audio output to analog 2CH:

Specification:

SMPTE Standard 425M Level A &B 424M, 292M, 259M-C
SDI Transmission Rates 2.970Gbps, 2.970/1.001Gbps,1.485Gbps,1.485/1.001Gbps, and 270Mbps.
Input Port 1x BNC (SD/HD/3G-SDI)
Output Port 1x BNC (SD/HD/3G-SDI bypass), 1x HDMI (Type A connector),
1xDVI with Audio, 1x VGA with Audio, 1x Composite with R/L.
ESD Protection Human-body Model: + or - 8kV (air-gap discharge), + or - 4kV (contact discharge).
SDI Cable Distance 3G up to 100m (BELDEN 1694A Cable), HD up to 200m (BELDEN
1694A Cable), SD up to 300m (BELDEN 1694A Cable).
Dimensions 110mnm(W)x288mm (D)x32mm (H)
Weight 750g
Chassis Material metal
Operating Temperature 0"C~40 C/32 "F-104 'F
Storage Temperature -20 °C~60"C/-4 "F~140 F
Relative Humidity 0-90% RH (Non-condensing).
Power Consumption 5W
