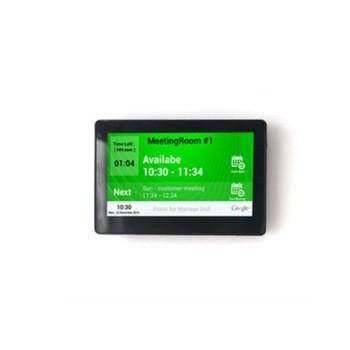

Kiosk Mode Industrial Wall Mount Android Tablet 7 Inch POE Touch Panel PC Adding RS485 Serial Port
Kiosk Mode Industrial Wall Mount Android Tablet 7 Inch POE Touch Panel PC Adding RS485 Serial Port
Kiosk Mode Industrial Wall Mount Android Tablet 7 Inch POE Touch Panel PC Adding RS485 Serial Port
Kiosk Mode Industrial Wall Mount Android Tablet 7 Inch POE Touch Panel PC Adding RS485 Serial Port
Kiosk Mode Industrial Wall Mount Android Tablet 7 Inch POE Touch Panel PC Adding RS485 Serial Port
Kiosk Mode Industrial Wall Mount Android Tablet 7 Inch POE Touch Panel PC Adding RS485 Serial Port
Kiosk Mode Industrial Wall Mount Android Tablet 7 Inch POE Touch Panel PC Adding RS485 Serial Port
Kiosk Mode Industrial Wall Mount Android Tablet 7 Inch POE Touch Panel PC Adding RS485 Serial Port
Specifications
Brand Name :
Sibo
Model Number :
CE FCC
Certification :
CE FCC
Place of Origin :
China
MOQ :
one piece
Payment Terms :
PayPal,Bank Wire,Western Union etc.
Supply Ability :
over 3000 units each month
Delivery Time :
7 days for sample order,25 days for batch order
Packaging Details :
neutral packaging or custom
Type :
Android Wall Mount POE Tablet PC
Power Supply :
POE / DC IN (9V - 36V)
Display :
7 Inch IPS Display, Resolution:1024 x 600, Brightness: 350 cd/m2
Wall Mount :
glass wall mount Inwall flush mount etc.
Feature :
Microphone and Speakers,Camera, Wifi, Bluetooth 4.0
CPU :
ARM Cortex A83T otca core, 1.2Ghz
Customized :
LED light,POE,RS485/RS232,etc.
Application :
Meeting Room Reservation Control
Color :
Black and White
RAM :
2GB
Flash :
8GB
Special :
custom splash screen
Warranty :
12 months
Description

Kiosk Mode Industrial Wall Mount Android Tablet 7 Inch POE Touch Panel PC Adding RS485 Serial Port

This model 7 inch android OS tablet PC supports three different wall mounting ways: inwall flush mount, onwall surface mount and glass wall mount.

With RJ45 ethernet port, USB port, customized POE,LED light,RS232/RS485,NFC etc optional configurations for your specific demand.

The 7" industrial control tablet can be suitable to home automation, office room scheduling, and other control terminal applications.

Specification:

Model Number Q896S
Hardware Specification Solution Allwinner’s A83T
CPU ARM Cortex Octa-Core, 1.2Ghz
Display 7 Inch IPS Display, Resolution:1024 x 600, Brightness: 350 cd/m2
RAM 2GB
Nand Flash 8GB
Software Feature System Google Android 6.0.1
Video H.264 2160p video decoding,
Multi-format FHD video decoding, including Mpeg1/2, Mpeg4 SP/ASP GMC, H.263, H.264, VP6/8, AVS jizun, Jpeg/Mjpeg,etc.
H.264 High Profile 1080p@30fps or 720@60fps encoding
3840 x 1080@30fps 3D decoding, BD/SBS/TAB/FP supported
Complies with RTSP, HTTP, HLS, RTMP, MMS streaming media protocols
Audio One Speaker 1 X 1 Watt (Integrated 3W Amplifier)
Language Support multi-languages
Interfaces Back Ethernet Interface(RJ45)
HDMI Out
USB Socket
DC IN Power Terminal (9V-36V)
Optional:RS232,RS485,1xGPIO IN, 1xGPIO OUT
Network WIFI+BLUETOOTH WIFI (802.11b/g/n), Bluetooth 4.0 support BLE
LAN Port Ethernet RJ45
Power Supply DC IN DC 9V - 36V
Boot Up Auto Boot Auto Boot Up When Power Supplies

Power over Ethernet or PoE technology describes a system to safely transfer electrical power, along with data, to remote devices over standard category 5 cable in an Ethernet network. It does not require modification of existing Ethernet cabling infrastructure.
The IEEE 802.3af PoE standard provides up to 15.4 W of DC power (minimum 44 VDC and 350 mA) to each device. Only 12.95 W is assured to be available at the powered device as some power is dissipated in the cable.
Long distance transmission is available for our max power need about 7w, safe and easy to be used with other POE switch or POE injector ( IEEE 802.3af PoE standard)
What is PD and PSE?
Power Over Ethernet, IEEE802.3af, is constructed by Power Sourcing Equipment (PSE) and Power Device (PD). Our Android Tablet works as a PD and which could powered by some PSE (POE injetor / POE switch)
In/Out protocol Application
PD
Power Device		 Power Input
from Ethernet(RJ45)		 Input POE 802.3 AF(15.4W) Home automation / Safety & protection
POE 802.3 AT(30W)
Benefits:
Kiosk Mode Industrial Wall Mount Android Tablet 7 Inch POE Touch Panel PC Adding RS485 Serial Port
  • Cost Saving
PoE significantly reduces the need for electricians to install conduit, electrical wiring, and outlets throughout the enterprise. With PoE only one cable – a simple CAT-5 Ethernet – is required. Estimates of cost savings using PoE range from $500 to $1,000 per port. In larger settings, this represents a major cost reduction.
Kiosk Mode Industrial Wall Mount Android Tablet 7 Inch POE Touch Panel PC Adding RS485 Serial Port
  • Flexibility
A PoE appliance or device can be located anywhere without the need for AC outlets. For example, wireless LAN access points can be located – and relocated – on or near ceilings, to fine tune optimum RF reception. For example, customers often find that access points are more effective on the ceiling, out of reach from an AC outlet.
Kiosk Mode Industrial Wall Mount Android Tablet 7 Inch POE Touch Panel PC Adding RS485 Serial Port
  • Reliability
Because PoE networks have fewer wires, there is less likelihood of an inadvertent power disruption (accidental shut off, etc). With an Uninterrupted Power Supply (UPS) power to the devices is assured during a power failure.
Kiosk Mode Industrial Wall Mount Android Tablet 7 Inch POE Touch Panel PC Adding RS485 Serial Port
  • Network Control
Using SNMP, network administrators can monitor and control powered devices, including resetting or shut-off. This allows increased security, as devices can be powered down when not in use, or if there is unauthorized access.
Kiosk Mode Industrial Wall Mount Android Tablet 7 Inch POE Touch Panel PC Adding RS485 Serial Port
  • Safety
Power mains are eliminated. Since only 48v DC is used, PoE conforms to Underwriter's Laboratories (UL) Safety Extra Low Volt
SIBO Q896 Android Tablet PC RJ45 POE

Kiosk Mode Industrial Wall Mount Android Tablet 7 Inch POE Touch Panel PC Adding RS485 Serial Port

Basic specification

  • Android 6.0 OS
  • POE (optional)
  • camera
  • microphone
  • speakers
  • HDMI output
  • DC 9V-36V, AC100V-240V
  • RJ45 Ethernet port
  • USB 2.0

Screen

  • IPS screen
  • capacitive touch screen
  • Glass+Glass touch screen

Network

  • Wi-Fi
  • Lan(Ethernet)
  • Bluetooth

Advantages

  • Android OS Rooted,built in google play store
  • Kiosk mode,as booting up directly to auto-web
  • Auto run app when tablet starts up
  • Customize boot logo/ animation

Bracket

  • Metal enclosure for in-wall mount
  • metal box for on-wall mount
  • L-shape metal clips for on-wall
  • bracket for glass wall
  • metal clips for desktop mount

RS232/RS485/GPIO

We will offer sample app for your testing and original source code for your program.

Kiosk Mode Industrial Wall Mount Android Tablet 7 Inch POE Touch Panel PC Adding RS485 Serial Port

RS232/RS485 Sample app interface

Kiosk Mode Industrial Wall Mount Android Tablet 7 Inch POE Touch Panel PC Adding RS485 Serial Port

Products Pictrues

Back interface

Kiosk Mode Industrial Wall Mount Android Tablet 7 Inch POE Touch Panel PC Adding RS485 Serial Port

1. HDMI output

2. NOT AVILABLE NOW

3. DC IN

4. RJ45 LAN port

5. USB2.0

6. Serial port(optional)

7. Holes for bracket

8. Screws for bracket

Kiosk Mode Industrial Wall Mount Android Tablet 7 Inch POE Touch Panel PC Adding RS485 Serial PortKiosk Mode Industrial Wall Mount Android Tablet 7 Inch POE Touch Panel PC Adding RS485 Serial PortKiosk Mode Industrial Wall Mount Android Tablet 7 Inch POE Touch Panel PC Adding RS485 Serial Port

In-Wall Mounting

Kiosk Mode Industrial Wall Mount Android Tablet 7 Inch POE Touch Panel PC Adding RS485 Serial PortKiosk Mode Industrial Wall Mount Android Tablet 7 Inch POE Touch Panel PC Adding RS485 Serial PortKiosk Mode Industrial Wall Mount Android Tablet 7 Inch POE Touch Panel PC Adding RS485 Serial Port

Our Services

As a full service manufacturer of tablet, we offer OEM and ODM services.

Custom Services:

  • Branding/Packaging
  • Custom logo/boot up splash screen
  • Customizable GUI
  • Boot up to time clock application
  • Lock down displays
  • Pre-loaded apps
  • Custom ROM

Payment Terms

1. For sample (Payment method: credit card, T/T, Western Union)
2. For bulk order(more than100pcs), customers should pay 30% deposit first, 70% balance should be paid before delivery.(Payment method: T/T)

FAQ

Question: Are you manufacturer?

Answer: Yes, we are professional manufacturer for home automation with the experience of 16 years.

Question: What is the Minimum Order Quantity(MOQ)?
Answer: No quantity limited, sample order is acceptable.

Question: What is the lead time? (How long do you need to prepare my goods?)
Answer: 5-7days for sample orders, 20-25 days for mass production orders(based on different quantities, OEM, etc.)

Question: How will you deliver my goods to me?
Answer: We ship by air and sea generally. In the mean time, we cooperate with international expresses such as DHL, UPS, FedEx, TNT to enable our customers to get their goods rapidly.

Question: How long do I need to wait before my goods arrive?
Answer: 3-5 days for international express


Question: Can you put my brand name(logo) on these products?
Answer: Of course, OEM service is the most important part of our trade purpose.

Question: What service do you have?

Answer: We have full-technique support(offer sample app and original source code for RS485,GPIO, NFC, etc.)

Question: What is your warranty?
Answer: Our warranty is 1 year after delivery,SIBO pays high attention to after-sales service. For those out of warranty, we repair you without labor charge collection.

Question: What is your product quality?
Answer: 1. We promise to use the best (original) components to ensure our product in high level.
2. All products will be carefully tested by our QC department.
3. Before test, all tablet PC have 24 hours aging test.
