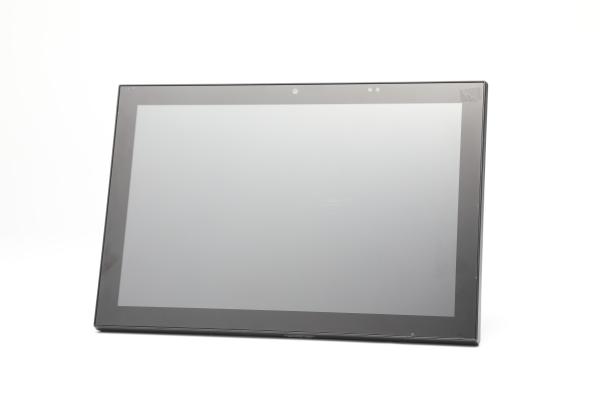

Wall Mount 10 Inch Industrial Android Tablet PC With Ethernet Lan RJ45 PoE and DC IN 24V Powering
Wall Mount 10 Inch Industrial Android Tablet PC With Ethernet Lan RJ45 PoE and DC IN 24V Powering
Wall Mount 10 Inch Industrial Android Tablet PC With Ethernet Lan RJ45 PoE and DC IN 24V Powering
Wall Mount 10 Inch Industrial Android Tablet PC With Ethernet Lan RJ45 PoE and DC IN 24V Powering
Wall Mount 10 Inch Industrial Android Tablet PC With Ethernet Lan RJ45 PoE and DC IN 24V Powering
Wall Mount 10 Inch Industrial Android Tablet PC With Ethernet Lan RJ45 PoE and DC IN 24V Powering
Wall Mount 10 Inch Industrial Android Tablet PC With Ethernet Lan RJ45 PoE and DC IN 24V Powering
Wall Mount 10 Inch Industrial Android Tablet PC With Ethernet Lan RJ45 PoE and DC IN 24V Powering
Specifications
Brand Name :
Neutral
Model Number :
Q8919
Certification :
CE
Place of Origin :
China
MOQ :
one piece
Payment Terms :
PayPal,Bank Wire,Western Union etc.
Supply Ability :
over 3000 units each month
Delivery Time :
7 days for sample order,25 days for batch order
Packaging Details :
neutral packaging or custom
Android OS :
6.0.1 rooted
CPU :
ARM Cortex A83T Octa Core, 1.2Ghz
RAM :
2GB
Storage :
8GB
Options :
POE,LED bars,NFC reader etc
Power Supply :
DC IN (9 - 24 V)
Interface :
DC IN/USB 2.0/RJ45/Serial port
Description

Wall Mount 10 Inch Industrial Android Tablet PC With Ethernet Lan RJ45 PoE and DC IN 24V Powering

This 10 inch android 6.0.1 OS tablet PC is supporting in wall flush mounting,which is perfectly suitable to home automation,industrial HMI etc applications . Especially,with the optional Power over Ethernet/PoE,only one ethernet cable is needed to connect power and data to the panel. Other optional accessories can be also available, such as adjustable LED side bars,front NFC reader,front Proximity sensor & Ambient Light Sensor and Serial port RS485/RS232 as well as GPIO .

Advantage:

  • Android 6.0.1 OS rooted
  • Auto boot up when power supplies,support Kiosk Mode
  • POE ( IEEE 802.3 af 48V standard POE) or DC IN 9-24V
  • Front centre camera,front proximity and light sensor,microphone and speakers
  • On wall surface,glass wall or inwall flush mounting
  • Available to customize adjustable LED side bar,RS232/RS485/GPIO etc.
  • Programmable physical buttons

Back Interface:

  • DC IN (9-24V)

  • RJ45

  • USB 2.0

  • Optional for one group RS232/RS485/GPIO

  • Micro USB

Network:

  • WLAN(WiFi 802.11b/g/n)
  • LAN Ethernet RJ45 port
  • Bluetooth 4.0 support Bluetooth Low Energy













Model Number Q8919
Hardware Specs Solution Allwinner A83T processor
CPU 8-Core ARM Cortex A7 CPU, 1.2Ghz
Display 10.1 Inch IPS Display,Resolution:1280 x 800,Brightness:350 nit, Ratio:16:10
Touch Screen Capacitive Touch Screen, 5 Points Touch
RAM 2GB
Nand Flash 8GB
Sound System 1W X 1, With Speaker Tunnel
Dimensons Height:167mm, Width:249 mm, Depth:26mm
Software Feature System Google Android 6.0.1
Video H.264 2160p video decoding,
Multi-format FHD video decoding, including Mpeg1/2, Mpeg4 SP/ASP GMC, H.263, H.264, VP6/8, AVS jizun, Jpeg/Mjpeg,etc.
H.264 High Profile 1080p@30fps or 720@60fps encoding
3840 x 1080@30fps 3D decoding, BD/SBS/TAB/FP supported
Complies with RTSP, HTTP, HLS, RTMP, MMS streaming media protocols
Audio Integrated Hi-Fi 100dB audio codec
Dual analog mic amplifiers
Language Support multi-languages
Interfaces Front Camera, Proximity Sensor (Optional)
Back USB Port 2.0, MICRO USB(OTG), DC JACK
Ethernet Interface(RJ45)
Bottom Power On/Off Button, Pin Hole For Reboot
Network WiFi+Bluetooth WIFI (802.11b/g/n), Bluetooth V2.1+EDR/BT v3.0/BT v3.0+HS/BT v4.0
Ethernet Lan Network
Power Supply PoE OR DC IN IEEE802.3AF 48V, 12V/500mA

Power over Ethernet or PoE technology describes a system to safely transfer electrical power, along with data, to remote devices over standard category 5 cable in an Ethernet network. It does not require modification of existing Ethernet cabling infrastructure.
The IEEE 802.3af PoE standard provides up to 15.4 W of DC power (minimum 44 VDC and 350 mA) to each device. Only 12.95 W is assured to be available at the powered device as some power is dissipated in the cable.
Long distance transmission is available for our max power need about 7w, safe and easy to be used with other POE switch or POE injector ( IEEE 802.3af PoE standard)
What is PD and PSE?
Power Over Ethernet, IEEE802.3af, is constructed by Power Sourcing Equipment (PSE) and Power Device (PD). Our Android Tablet works as a PD and which could powered by some PSE (POE injetor / POE switch)
In/Out protocol Application
PD
Power Device		 Power Input
from Ethernet(RJ45)		 Input POE 802.3 AF(15.4W) Home automation / Safety & protection
POE 802.3 AT(30W)
Benefits:
Wall Mount 10 Inch Industrial Android Tablet PC With Ethernet Lan RJ45 PoE and DC IN 24V Powering
  • Cost Saving
PoE significantly reduces the need for electricians to install conduit, electrical wiring, and outlets throughout the enterprise. With PoE only one cable – a simple CAT-5 Ethernet – is required. Estimates of cost savings using PoE range from $500 to $1,000 per port. In larger settings, this represents a major cost reduction.
Wall Mount 10 Inch Industrial Android Tablet PC With Ethernet Lan RJ45 PoE and DC IN 24V Powering
  • Flexibility
A PoE appliance or device can be located anywhere without the need for AC outlets. For example, wireless LAN access points can be located – and relocated – on or near ceilings, to fine tune optimum RF reception. For example, customers often find that access points are more effective on the ceiling, out of reach from an AC outlet.
Wall Mount 10 Inch Industrial Android Tablet PC With Ethernet Lan RJ45 PoE and DC IN 24V Powering
  • Reliability
Because PoE networks have fewer wires, there is less likelihood of an inadvertent power disruption (accidental shut off, etc). With an Uninterrupted Power Supply (UPS) power to the devices is assured during a power failure.
Wall Mount 10 Inch Industrial Android Tablet PC With Ethernet Lan RJ45 PoE and DC IN 24V Powering
  • Network Control
Using SNMP, network administrators can monitor and control powered devices, including resetting or shut-off. This allows increased security, as devices can be powered down when not in use, or if there is unauthorized access.
Wall Mount 10 Inch Industrial Android Tablet PC With Ethernet Lan RJ45 PoE and DC IN 24V Powering
  • Safety
Power mains are eliminated. Since only 48v DC is used, PoE conforms to Underwriter's Laboratories (UL) Safety Extra Low Volt

Q8919 inwall mount installation instruction demo video:

https://youtu.be/jMmtg-hkLdY
