Indoor Application No Battery Android POE Tablet 10 Inch Wall Mounted Control Panel With NFC Reader
Indoor Application No Battery Android POE Tablet 10 Inch Wall Mounted Control Panel With NFC Reader
Indoor Application No Battery Android POE Tablet 10 Inch Wall Mounted Control Panel With NFC Reader
Indoor Application No Battery Android POE Tablet 10 Inch Wall Mounted Control Panel With NFC Reader
Indoor Application No Battery Android POE Tablet 10 Inch Wall Mounted Control Panel With NFC Reader
Indoor Application No Battery Android POE Tablet 10 Inch Wall Mounted Control Panel With NFC Reader
Indoor Application No Battery Android POE Tablet 10 Inch Wall Mounted Control Panel With NFC Reader
Indoor Application No Battery Android POE Tablet 10 Inch Wall Mounted Control Panel With NFC Reader
Specifications
Brand Name :
Sibo
Model Number :
Q8919
Certification :
CE FCC
Place of Origin :
China
MOQ :
one piece
Payment Terms :
PayPal,Bank Wire,Western Union etc.
Supply Ability :
over 3000 units each month
Delivery Time :
7 days for sample order,25 days for batch order
Packaging Details :
neutral packaging or custom
Interface :
DC IN/USB/RJ45
Power Supply :
DC IN (9 - 24 V)
Display :
10 Inch IPS Display, Resolution:1280 x 800, Brightness: 350 cd/m2
Feature :
Microphone,Speakers,Camera, Wifi&Bluetooth
CPU :
ARM Cortex A83T Octa Core, 1.2Ghz
RAM :
2GB
Nand Flash :
8GB
Customized :
POE,LED light,RS232/RS485/GPIO etc.
Keyword :
10 Inch Android OS Control Touchpanel
Description

Indoor Application No Battery Android POE Tablet 10 Inch Wall Mounted Control Panel With NFC Reader

This 10 inch android 6.0.1 OS touch panel is supporting wall mounting,which is perfectly suitable to home automation controlling terminal and industrial HMI application etc .

Especially,with the optional configuration Power over Ethernet(PoE),only an ethernet cable is needed to connect power and data to the panel.

Other optional accessories can be also available, such as adjustable LED side bars,front Proximity sensor & Ambient Light Sensor and Serial port RS485/RS232 as well as GPIO.

Of course gonna provide you the Source code for your further software developing.

Available to provide the customized boot up logo or animnation.

Special:

  • Android 6.0.1 OS rooted
  • Auto boot up when power supplies
  • POE ( IEEE 802.3 af 48V standard POE) or DC IN 9-24V
  • wifi and bluetooth,Ethernet RJ45 port
  • Front centre camera,proximity and light sensor,microphone and speakers
  • On wall surface, inwall flush mounting,glass wall mounting
  • Available to customize adjustable RGB LED light,RS232/RS485/GPIO etc.
  • Programmable physical buttons
  • small MOQ
  • free to provide the customized splash screen with your company logo

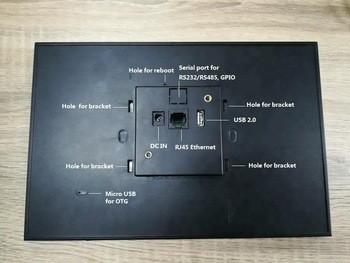

Back Interface:

  • DC IN (9-24V)

  • RJ45

  • USB 2.0

  • Optional for one group RS232/RS485/GPIO

  • Micro USB port

Network:

  • WLAN(WiFi 2.4GHz 802.11b/g/n)
  • LAN Ethernet RJ45 port
  • Bluetooth 4.0 support Bluetooth Low Energy













<

Model Number Q8919
Hardware Specs Solution Allwinner A83T processor
CPU 8-Core ARM Cortex A7 CPU, 1.2Ghz
Display 10.1 Inch IPS Display,Resolution:1280 x 800,Brightness:350 nit, Ratio:16:10
Touch Screen Capacitive Touch Screen, 5 Points Touch
RAM 2GB
Nand Flash 8GB
Sound System 1W X 1, With Speaker Tunnel
Dimensons Height:167mm, Width:249 mm, Depth:26mm
Software Feature System Google Android 6.0.1
Video H.264 2160p video decoding,
Multi-format FHD video decoding, including Mpeg1/2, Mpeg4 SP/ASP GMC, H.263, H.264, VP6/8, AVS jizun, Jpeg/Mjpeg,etc.
H.264 High Profile 1080p@30fps or 720@60fps encoding
3840 x 1080@30fps 3D decoding, BD/SBS/TAB/FP supported
Complies with RTSP, HTTP, HLS, RTMP, MMS streaming media protocols
Audio Integrated Hi-Fi 100dB audio codec
Dual analog mic amplifiers
Language Support multi-languages
Interfaces Front Camera, Proximity Sensor (Optional)
Back USB Port 2.0, MICRO USB(OTG), DC JACK
Ethernet Interface(RJ45)
Bottom Power On/Off Button, Pin Hole For Reboot
Network WiFi+Bluetooth WIFI (802.11b/g/n), Bluetooth V2.1+EDR/BT v3.0/BT v3.0+HS/BT v4.0
Ethernet Lan Network
Power Supply PoE OR DC IN IEEE802.3AF 48V, 12V/500mA

Q8919 inwall mount instruction demo video:

https://youtu.be/jMmtg-hkLdY
