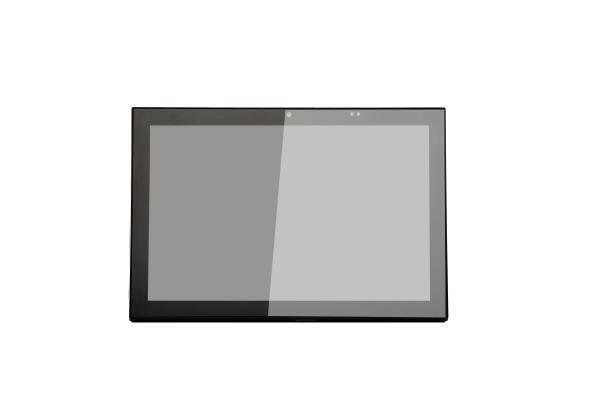

Building Security Touch Tablet 10.1 Inch Android OS Wall Mount Control Panel PC With RGB LED Light POE Option
Building Security Touch Tablet 10.1 Inch Android OS Wall Mount Control Panel PC With RGB LED Light POE Option
Building Security Touch Tablet 10.1 Inch Android OS Wall Mount Control Panel PC With RGB LED Light POE Option
Building Security Touch Tablet 10.1 Inch Android OS Wall Mount Control Panel PC With RGB LED Light POE Option
Building Security Touch Tablet 10.1 Inch Android OS Wall Mount Control Panel PC With RGB LED Light POE Option
Building Security Touch Tablet 10.1 Inch Android OS Wall Mount Control Panel PC With RGB LED Light POE Option
Building Security Touch Tablet 10.1 Inch Android OS Wall Mount Control Panel PC With RGB LED Light POE Option
Building Security Touch Tablet 10.1 Inch Android OS Wall Mount Control Panel PC With RGB LED Light POE Option
Specifications
Brand Name :
Sibo
Model Number :
Q8919
Certification :
CE FCC
Place of Origin :
China
MOQ :
one piece
Payment Terms :
PayPal,Bank Wire,Western Union etc.
Supply Ability :
over 3000 units each month
Delivery Time :
7 days for sample order,25 days for batch order
Packaging Details :
neutral packaging or custom
Interface :
DC IN/USB/RJ45/Serial port
Power Supply :
DC IN (9 - 24 V)
Display :
10 Inch IPS Display, Resolution:1280 x 800, Brightness: 350 cd/m2
Feature :
Microphone,Speakers,Camera, Wifi, Bluetooth 4.0
CPU :
ARM Cortex A83T Octa Core, 1.2Ghz
RAM :
2GB
Nand Flash :
8GB
Special :
adjustable LED side bars
Customized :
POE,front Proximity sensor,RS232/RS485/GPIO etc.
Keyword :
10 Inch Wall Mount Industrial Android Tablet
Description

Building Security Touch Tablet 10.1 Inch Android OS Wall Mount Control Panel PC With RGB LED Light POE Option

Our industrial grade 10 inch android 6.0.1 OS rooted touch tablet PC without battery is supporting wall mounting(or your own designing customized bracket),which is perfectly suitable to Intelligent House automation, enterprise room scheduling applications and industrial HMI etc .

What we can do:

  1. Customize RS232, RS485, GPIO, front Proximity sensor & Ambient light sensor,NFC reader
  2. Demo apps & demo source code for your programming
  3. Customize boot logo/animation for free
  4. Support OEM/ODM print logo on the surface of screen (in batch order)
  5. Support packaging customization
  6. Support sample order and small quantity

Basic specification

  • Android 6.0 OS rooted
  • camera
  • microphone
  • speaker
  • DC 9V-36V
  • RJ45 Ethernet port (POE optional)
  • USB 2.0

Screen

  • IPS screen with 178.viewing sight
  • capacitive touch screen
  • Glass+Glass touch screen

Network

  • Wi-Fi
  • Lan(Ethernet)
  • Bluetooth

Advantages

  • Rooted device
  • Auto run app when tablet starts up
  • Customize boot logo/boot animation

Sample Standard Accessories (these features can be removed in bulk)

  • wi-fi&bluetooth
  • camera
  • power adapter

Optional Accessories

  • POE Feature (Power over Ethernet, IEEE802.3af, 48V)
  • GPIO/RS232/RS485(only one feature in one tablet)
  • Bracket for inwall mounting













<

Model Number Q8919
Hardware Specs Solution Allwinner A83T processor
CPU 8-Core ARM Cortex A7 CPU, 1.2Ghz
Display 10.1 Inch IPS Display,Resolution:1280 x 800,Brightness:350 nit, Ratio:16:10
Touch Screen Capacitive Touch Screen, 5 Points Touch
RAM 2GB
Nand Flash 8GB
Sound System 1W X 1, With Speaker Tunnel
Dimensons Height:167mm, Width:249 mm, Depth:26mm
Software Feature System Google Android 6.0.1
Video H.264 2160p video decoding,
Multi-format FHD video decoding, including Mpeg1/2, Mpeg4 SP/ASP GMC, H.263, H.264, VP6/8, AVS jizun, Jpeg/Mjpeg,etc.
H.264 High Profile 1080p@30fps or 720@60fps encoding
3840 x 1080@30fps 3D decoding, BD/SBS/TAB/FP supported
Complies with RTSP, HTTP, HLS, RTMP, MMS streaming media protocols
Audio Integrated Hi-Fi 100dB audio codec
Dual analog mic amplifiers
Language Support multi-languages
Interfaces Front Camera, Proximity Sensor (Optional)
Back USB Port 2.0, MICRO USB(OTG), DC JACK
Ethernet Interface(RJ45)
Bottom Power On/Off Button, Pin Hole For Reboot
Network WiFi+Bluetooth WIFI (802.11b/g/n), Bluetooth V2.1+EDR/BT v3.0/BT v3.0+HS/BT v4.0
Ethernet Lan Network
Power Supply PoE OR DC IN IEEE802.3AF 48V, 12V DC IN

Installation bracket for inwall and onwall :

Q8919 inwall mount instruction:

https://youtu.be/jMmtg-hkLdY
