Pneumatic PCB Depanelizer Machine with PCB Separator for One Year Warranty
Pneumatic PCB Depanelizer Machine with PCB Separator for One Year Warranty
Pneumatic PCB Depanelizer Machine with PCB Separator for One Year Warranty
Pneumatic PCB Depanelizer Machine with PCB Separator for One Year Warranty
Pneumatic PCB Depanelizer Machine with PCB Separator for One Year Warranty
Pneumatic PCB Depanelizer Machine with PCB Separator for One Year Warranty
Specifications
Brand Name :
SMTfly
Model Number :
CWVC-330
Certification :
CE ISO
Place of Origin :
Dongguan
Payment Terms :
TT in advance
Supply Ability :
3000 sets/year
Delivery Time :
1-3 days after payment confirm
Packaging Details :
Each set packed in plywood case
MOQ :
1 Set
Price :
RMB/USD
Blade mareial :
japan high speed steel
Lead time :
one day
Warranty :
one year
Payment method :
TT
Trade term :
CIF FOB EXW
Description

Pneumatic PCB Depanelizer Machine with PCB Separator for One Year Warranty​ Feature:

1. Pneumatically driven and electromagnetic valve control.
2. Depaneling process without vibrations due to pneumatic drive unit .
3. Depaneling PCBs with sensitive SMD, capacitors or thin board even to 0.3mm can be depaneled safely.

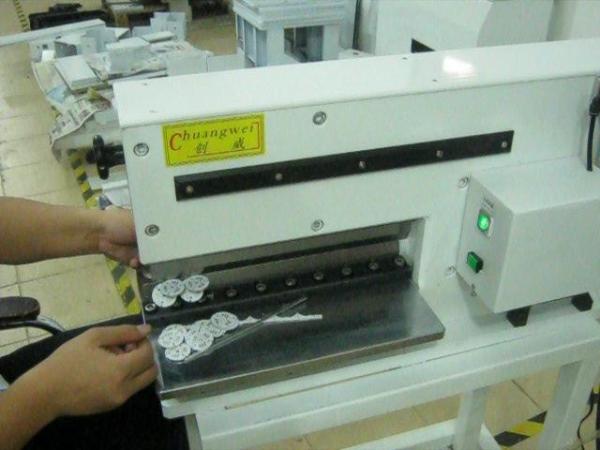

4. Depaneling operation is that operator stamps the foot pedal to Depanel PCB.
5. Highest components near the v groove of PCB can be up to 70mm.
6. The minimum distance is allowed to be 0.5mm between V groove and the electronic components.

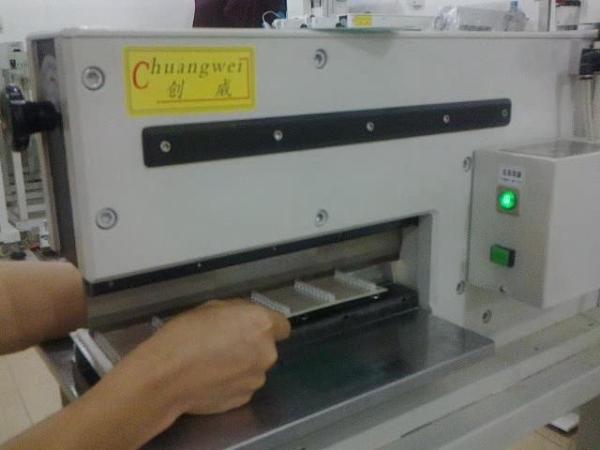

7. Gap for insertion of PCB can be easy to adjust by the adjusting knob in front of the machine.

pcb cutting machine CWVC-330 Specification:

Model

CWVC-330

Max. PCB depaneling length

330mm(Can custom made)

PCB depaneling thickness

0.3-3.5mm

Voltage and Power

110V/220V 10W

Working air pressure

0.5-0.7Mpa

PCB depaneling speed

due to operator skilled level

PCB depaneling machine size

620*230*400mm

PCB depaneling machine weight

165kg

Pneumatic PCB Depanelizer Machine with PCB Separator for One Year Warranty

Pneumatic PCB Depanelizer Machine with PCB Separator for One Year Warranty

Pneumatic PCB Depanelizer Machine with PCB Separator for One Year Warranty

pcb cutting machine CWVC-330 CE approval:

Pneumatic PCB Depanelizer Machine with PCB Separator for One Year Warranty

pcb cutting machine CWVC-330 Cooperative customers:

Pneumatic PCB Depanelizer Machine with PCB Separator for One Year Warranty

pcb cutting machine Clients recommendation:

Pneumatic PCB Depanelizer Machine with PCB Separator for One Year Warranty

More choice for pcb cutting machine:

Pneumatic PCB Depanelizer Machine with PCB Separator for One Year Warranty
