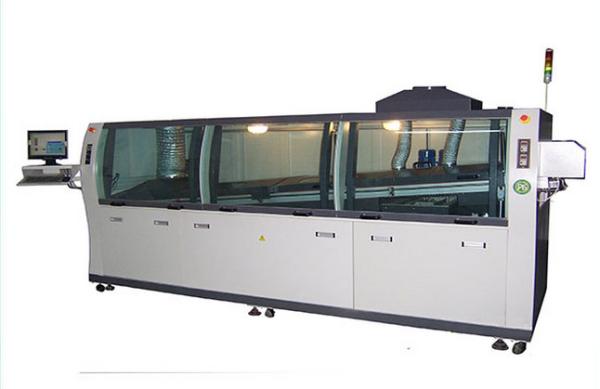

SunEast 8-10 Stage Reflow Wave Soldering Machine SMT Soldering Oven
SunEast 8-10 Stage Reflow Wave Soldering Machine SMT Soldering Oven
SunEast 8-10 Stage Reflow Wave Soldering Machine SMT Soldering Oven
SunEast 8-10 Stage Reflow Wave Soldering Machine SMT Soldering Oven
SunEast 8-10 Stage Reflow Wave Soldering Machine SMT Soldering Oven
SunEast 8-10 Stage Reflow Wave Soldering Machine SMT Soldering Oven
Specifications
Place of Origin :
dongguang china
Brand Name :
SMTfly
Certification :
CE ISO9001
Model Number :
SMTfly-5827
MOQ :
1 set
Packaging Details :
each set be packed in plywood case
Delivery Time :
1-3 days after payment confirm
Payment Terms :
TT in advance
Supply Ability :
3000/year
Description

SunEast 8-10 Stage Reflow Wave Soldering Machine SMT Soldering Oven

Product Description

Machine Technical Parameter

PCB boardwidth can be adjusted

Max.50~350mm

The heightofthePCB transport

750±50mm

The speed of thePCB transport

0~2000mm/Min

TheAngle of the

PCB transport(Welding Angle)

3~7°

The direction of

the PCB transport

Optional

Heightrestrictions onthe PCB components

Max.100mm

Crest height range

0~15mm,adjustable,andkeep balance peak

Peak number

2

Preheatzone length

1800mm

Preheatzone number

4

Preheatzone power

11kw

Preheatzone temperature

Ambienttemperature ~250℃ canbeset

Heatingmode

Hotair

Numberof cooling zones

2

Cooling way

Fanforced cooling

Applicable electrode type

Lead-free solder /generalsolder

Tin stove power

9KW

The amount of

Tinmelting furnace

Approx.300-450kg

Temperature of Tin furnace

Ambienttemperature ~300℃/Controlaccuracy±1-2℃

Temperaturecontrolmode

P.I.D+SSR

Machine controlmode

PC +Siemens

Flux capacity

Max5.2L

Solder fluxes

10~100ml/min

Spraymode

GermanyFEST rodless cylinder +Meiji spray

Powersupply

Three-phase five-wire 380V

Starting power (total power)

Max.21KW

Normal operating power

Approx.9KW

Gas source

4~7KG/CM2

Racksize

L3600xW1400xH1700mm

Dimensions

L4300xW1400xH1700mm

Why choose us

1. Work Strength: You will be replied with best service as soon as we get you inquiry!

2. Company strength: Excellent design team with designers of more than 12 years experience, you will be offered with professional advice for practical application;

3. capacity: 8000,000 pcs light source annual production capacity, the products export to Europe, South America, Russia, etc;

4. Customized design: You will be offered with OEM&ODM services. Your own logo on product is available!

5. High quality: Goods will be tested before sent to you.
