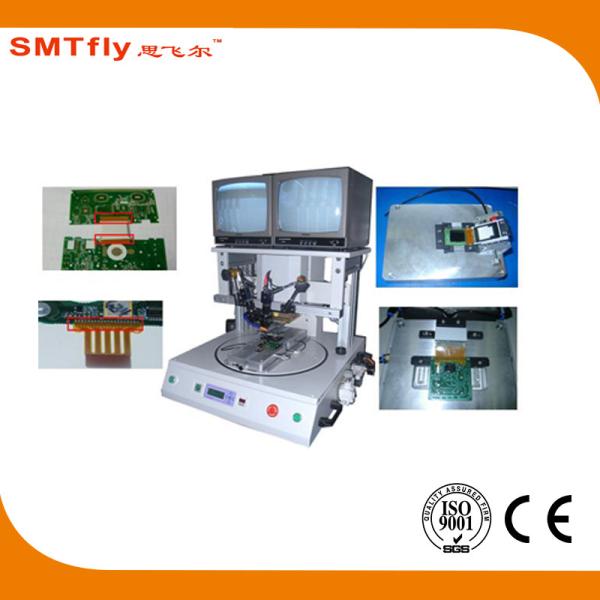

Pulse Heat Hot Bar Soldering Welding Machine With Two Larage LCD

Customer Feedback

Feature:

Pulse-Heated Soldering Machine with Pneumatic Rotary Turntable CWPC-1A

1. Extremely short cycle time with rotary table design. Product loading and unloading can be done during the heat sealing process

2. High quality heat seal application up to 0.25mm pitch

3. Pneumatic bonding head provide up to 3,900N force

4. Digital programmable pressure control with LCD display

5. Closed loop PID temperature control with visible LED display

6. Bonding cycle is triggered by a real time pressure sensor

7. Floating Thermode ensure consistent pressure and heat transfer along the flexfoil to LCD and/or PCB

8. Precision product fixtures (2X), easy exchange, provided with micrometer alignment and vacuum to fix components

9. Optional CCD alignment module with frame, camera, lens, monitor and illumination for fine pitch application

10. Full microprocessor logic control
Specification:

welding machine
1. Accurate Tin press,not drag
2. Accurate heat
3. Fine-pitch position
4. Digital program pressure control

Detailed Product Description:

1. For electronics, cell phones, computers, PCB, FPC (flexible printed circuit board)

2. Mold make of SKD-11 Steel,Blade is SKD-9(From Japan),Rigorous Job!!!!

Technical characteristics:

1. Structural precision, the load evenly, to eliminate internal stress

2. Safe, easy to operate

3. Electronic component won't short circuit

Our Advantage :

1. CWVC-1 Pcb depanelizer original manufacturers, price concessions

2. Promise day technical support services

3. Limit the handling of complaints, half an hour back to customers

4. Reliable machine maker,we get Experts--15,each one got over six years experience,equipment quality will be satisfying.

CE approval:

Production flow:
