PCB Depanelizer PCB Separator Pre-Scoring PCB Depaneling Machine
PCB Depanelizer PCB Separator Pre-Scoring PCB Depaneling Machine
PCB Depanelizer PCB Separator Pre-Scoring PCB Depaneling Machine
PCB Depanelizer PCB Separator Pre-Scoring PCB Depaneling Machine
PCB Depanelizer PCB Separator Pre-Scoring PCB Depaneling Machine
PCB Depanelizer PCB Separator Pre-Scoring PCB Depaneling Machine
PCB Depanelizer PCB Separator Pre-Scoring PCB Depaneling Machine
PCB Depanelizer PCB Separator Pre-Scoring PCB Depaneling Machine
Specifications
Place of Origin :
Dongguan China
Brand Name :
SMTfly
Certification :
CE ISO9001
Model Number :
CWVC-330
MOQ :
1 Set
Packaging Details :
Each set packed in plywood case
Delivery Time :
1-3 days after payment confirm
Payment Terms :
TT in advance
Supply Ability :
3000 sets/year
Price :
Negotiable
Blade mareial :
Japan high speed steel
Description

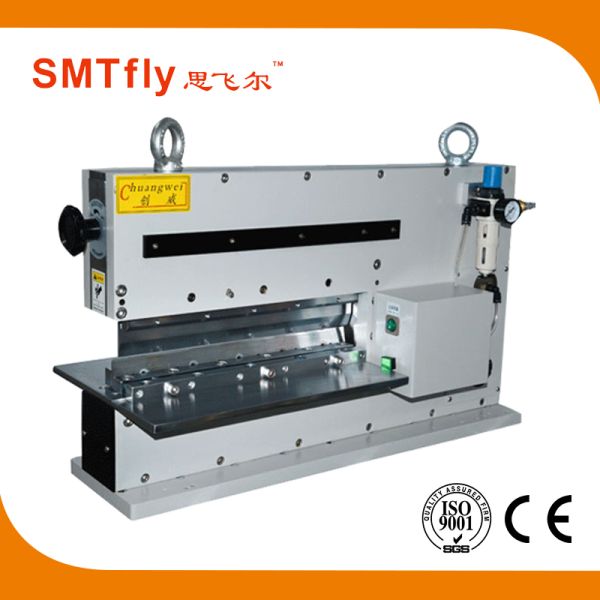

V Groove PCB Depanelizer PCB Separator Pre-Scoring PCB Depaneling Machine

pcb depaneling machineCWVC-450 Specification:

Model

CWVC-450

Max. PCB depaneling length

450mm(Can custom made)

PCB depaneling thickness

0.3-3.5mm

Voltage and Power

110V/220V 10W

Working air pressure

0.5-0.7Mpa

PCB depaneling speed

due to operator skilled level

PCB depaneling machine size

620*230*400mm

PCB depaneling machine weight

165kg

PCB Depanelizer PCB Separator Pre-Scoring PCB Depaneling Machine

PCB Depanelizer PCB Separator Pre-Scoring PCB Depaneling Machine

PCB Depanelizer PCB Separator Pre-Scoring PCB Depaneling Machine

pcb depaneling machine CWVC-330 Feature:

1. Pneumatically driven and electromagnetic valve control.
2. Depaneling process without vibrations due to pneumatic drive unit .
3. Depaneling PCBs with sensitive SMD, capacitors or thin board even to 0.3mm can be depaneled safely.
4. Depaneling operation is that operator stamps the foot pedal to Depanel PCB.
5. Highest components near the v groove of PCB can be up to 70mm.
6. The minimum distance is allowed to be 0.5mm between V groove and the electronic components.
7. Gap for insertion of PCB can be easy to adjust by the adjusting knob in front of the machine.

pcb depaneling machineCWVC-330 Cooperative customers:

PCB Depanelizer PCB Separator Pre-Scoring PCB Depaneling Machine

pcb depaneling machineCWVC-330 CE approval:

PCB Depanelizer PCB Separator Pre-Scoring PCB Depaneling Machine

More choice forpcb depaneling machine:

PCB Depanelizer PCB Separator Pre-Scoring PCB Depaneling Machine
