Specifications
Place of Origin :
Dongguan China
Brand Name :
SMTfly
Model Number :
CWV-1A
Certification :
CE ISO9001
Packaging Details :
each set be packed in plywood case
Delivery Time :
1-3 days after payment confirm
Payment Terms :
T/T in advance
Supply Ability :
3000/year
MOQ :
1Set
Price :
USD/1Set
New design :
Electric-eye safety sensor
Warranty :
12 months free
Description

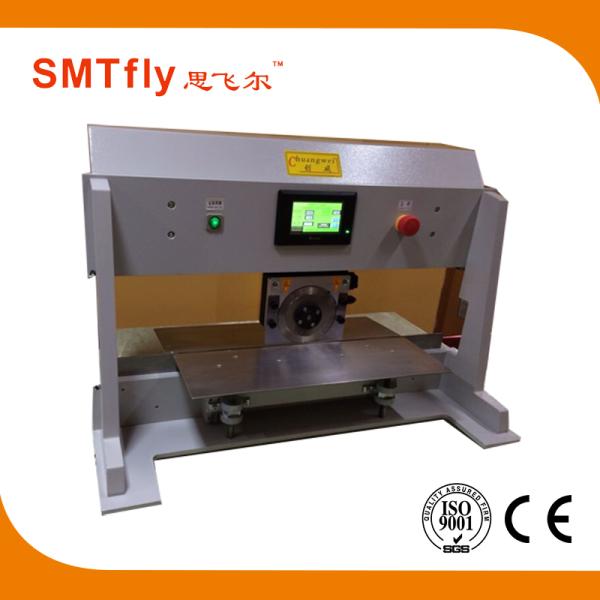

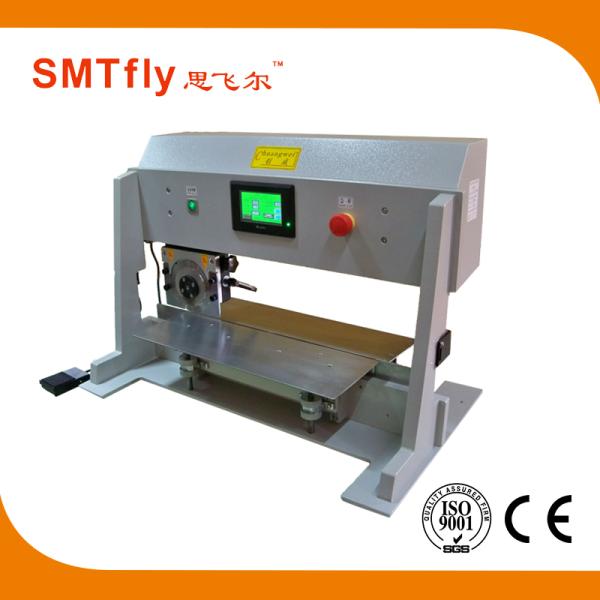

Automatic PCB Separator Machine with LCD Control and CE ISO9001 Approval Specification:

Model CWV-1A
Max. PCB cutting length 460 or 600 mm(on request custom made)
PCB cutting thickness 0.6-3.5 mm
PCB cutting speed 100,200,300,500 mm/sec
Blade motion upper circular blade moving automatically
Blade motive power operating mode motor-driven
Power supply 110/220v
PCB cutting machine size 770*510*450mm
PCB cutting machine weight 55kg

Automatic PCB Separator Machine with LCD Control and CE ISO9001 Approval

Automatic PCB Separator Machine with LCD Control and CE ISO9001 Approval​ Feature:

1. Separate pre-scored PCB assembly without stress on either PCB or component
2. One touch programming of cut length with digital display
3. Separating speed is adjusted by a rotary knob
4. Handle Intermittent scoring or cut-outs
5, Board with projected component can be cut precisely
6. Large stainless steel platform on both side of cutting blade prevents board wobble and table height and angle are adjustable
7. Optional PCB conveyor belt to remove finished board
8. Clearance between circular and linear blades are adjustable to fit different groove depth and compensates for blade wear out

pcb separator machine CWV-1A Competitive advantage:

1. LCD display:you can adjust the blade moving trip according to your pcb length.
2. Safety sensor:Installed electronic safe sensor to protect our hands from depaneling when you put your hands near the blades,the machine stop working even though the operator step on pedal switch.
3. It has 4 speed positions.

pcb separator machine CWV-1A Clients praise:

Automatic PCB Separator Machine with LCD Control and CE ISO9001 Approval

pcb separator machine CWV-1A Cooperative clients:

Automatic PCB Separator Machine with LCD Control and CE ISO9001 Approval

PCB Separator Machine Production flow:

Automatic PCB Separator Machine with LCD Control and CE ISO9001 Approval

More choice for pcb separator machine:

Automatic PCB Separator Machine with LCD Control and CE ISO9001 Approval
