Two Working Station CNC Drilling And Milling Machine V-Cut PCB Separator
Two Working Station CNC Drilling And Milling Machine V-Cut PCB Separator
Specifications
Place of Origin :
dongguang china
Brand Name :
SMTfly
Certification :
CE ISO9001
Model Number :
CWV-2D
Protection Level :
IP65
External Size :
550*650*60mm
MOQ :
1 set
Packaging Details :
each set be packed in plywood case
Delivery Time :
1-3 days after payment confirm
Payment Terms :
TT in advance
Supply Ability :
3000/year
Type :
drilling and milling machine
Description

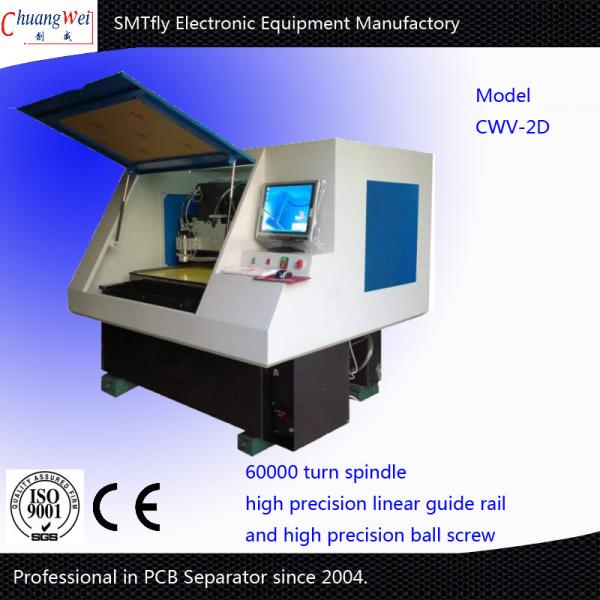

Two Working Station CNC Drilling And Milling Machine V-Cut PCB Separator CWV-2D

Feature:

1. Use the CW intelligence control system created by Chuangwei which has good stability and support network
program U drive disk, superior to other control systems of China


2. Use the frequency conversion system of Delta or adleepower, Such as the Processing speed could be improved
30% using 60000 turn spindle.


3. Using the high precision linear guide rail and high precision ball screw, made in Taiwan.


4. Each axis is driven by AC servo combination.


5. Control software: The software, Such as CAM350/V2001/GENESIS2000 product the ROU,ROT,NC,DRL,
GBR etc;


control software:
support to edit or auto-compensate ROU,ROT,NC,DRL,GBR which are processed by autosoftwares like
CAM350V2001.


And have functions such as graphical automatic optimization of machining path, hierarchical drill-down, simulation
process and autopromping


6. Machine cover:
International standards for the professional control box together with the hood times full steel structure

Technical parameters:

Item Description Notes
Operating stroke(XYZ) 550*650*60mm Actual working range
Drilling Accuracy ±0.02mm
Rapid Positioning Speed 25m/min
Spindle Rotation Range 40000 rmp Spindle motor power 1.5kw
Drilling Diameter 0.6-6.5mm
Tool Change Mode manual ER11
Controller Interface Chinese/English
Automatic stripping selectable selectable
Power Requirement AC220V/50Hz / 4000W
Dimension 1820*1550*1450 mm
Cooling mode(principal axis) Circulating water cooling
Machine Weight(kg) 2000
Working Environment Centigrade degree: 20-25℃, RH:75%
Compressed air requirement 0.5MPa
Applicable All PCB(MCPCB) drilling / milling

Machine layout:

Name Brand Country of origin Notes
Guide PMI Taiwan, China
Screw TBI Taiwan, China
Principal axis Chuangwei China
Servo System Fuji Japan
Frequency spindle Adleepower Taiwan, China High frequency
Computer HP China 19 liquid crystal display
(HP original)
The machine table Jinanqin Shandong, China granite

Why choose us

1. Engineers available to service machinery oversea.

Engineers are available to be sent to freign countries to do machinery training and offer technical support.

2. One year warranty for the machines except accessories.

Robust frame construction and Japanese steel blades obtained good appraise and recognized by and oversea clients. We offer parts for replacement under warranty free of charge, clients only need to bear freight charge.

3..Effective customer service.

All of us together are stronger and wiser than any one of us individually. To succeed, we must assume responsibility, cooperate with fellow associates and withdepartments, effectively comminicate with one another, foster enthusiam and participate in decision-making. To be seay reachable by customers and provide prompt replies to solve their problems and create value for customers

4. Mature technique & forerunner to process makes high quality machinery.

As largest manufactory in South China, we have 12 years experience on PCB separator machines and soldering machines. pcb router machine

Our R&D team continuously upgrade the existing machines to meet the market development trend

About us

Dongguan ChuangWei Electronic Equipment Manufactory was founded in 2004,is located in the world manufacturing city Dongguan,Guangdong,China. The company is committed to development,manufacture,sales and service for professional pcb separator/pcb depanelizer electronic equipment machinery. The company has advanced production and processing equipment and an experienced development and manufacture team, half of them have over 10 years experience in electronic equipment industry.

Begin with 2004 the company leader invested to develop and manufacture the PCB separator and PCB depaneling machine. From then on we pay more attention to product quality, safe to use and product innovation, so far we have produced many high quality, stable performance, high cost-effective products. Improve production yields, increase productivity, and thus enhance the market competitiveness of our customers.

Until now we have design different separating PCB types of PCB separator and PCB depaneling machine with manual, motor-driven, pneumatic-driven, mold punching, milling cutter router. Due to the good quality and reasonable price our customers are all over the world. Up to now ChuangWei have became one of the biggest PCB separator production base in China

Company always insists to the "customer needs is our goal, creating most value for customers", strives to provide customers with first-class products, first-class service. So since date established we very attached importance to product quality,continuous improvement for manufacturing process,try hard to save money for customers.

Our great mission is to be the most professional and excellent supplier in the pcb separator/pcb depanelizer electronic equipment industry.
