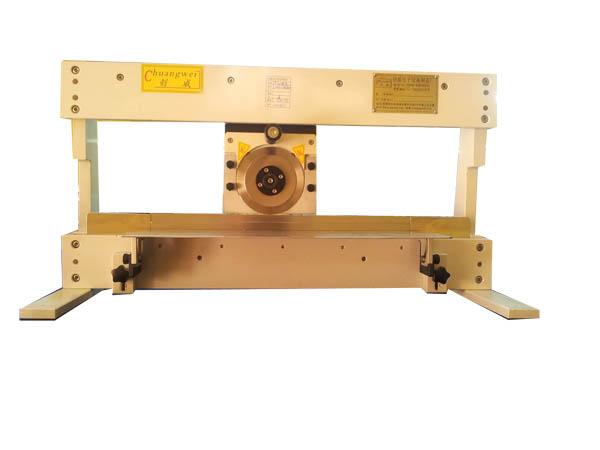

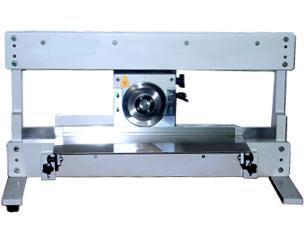

PCB Separator,PCB Depaneling V Cut PCB Cutter

Specifications

Place of Origin :

Dongguan China

Brand Name :

SMTfly

Certification :

CE ISO9001

Model Number :

CWV-1M

MOQ :

1 Set

Packaging Details :

each set be packed in plywood case

Delivery Time :

1-3 days after payment confirm

Payment Terms :

T/T in advance

Supply Ability :

3000/year

Price :

USD/RMB/AUD

Power supply :

110/220V

Blade material :

high speed steel

Description

Pre Scoring PCB Separator V Groove PCB Depaneling V Cut PCB Cutter

pcb separator machine CWV-1M Feature:

1. V-cut pcb separator machine CWV-1M Singulation type:upper component side(circular blade),bottom solder side(linear blade).

2. V-cut pcb separator machine CWV-1M Singulation for small and large PCBs with pre-scored V groove.

3. V-cut pcb separator machine CWV-1M Singulate pre-scored V groove PCB assembly without stress on either PCBs or component.

4. V-cut pcb separator machine CWV-1M Singulating speed is controlled by hand and very easy operation.

5. Large stainless steel platform on both side of cutting blade prevents PCBs shaking and the table height and angle could be adjustable.

6. The PCB is placed with its pre-scored V groove onto the linear blade and the circular blade is then drawn by hand across the PCBs.

7. Clearance between circular and linear blades are adjustable to fit different groove depth and compensates for blade wear out.It is to ensure that the PCB is only depaneled in the pre-scored V groove.

pcb separator machine CWV-1M Competitive advantage:

1. The price is very economical.pcb separator machine pcb separator machine
2. Easy maintanance and operation.pcb separator machine pcb separator machine
3. Low bending stress,no vibration.

pcb separator machine CWV-1M Specification:

Model	CWV-1M460
Max. PCB singulation length	460mm
PCB singulation Thickness	0.6-3.5mm
PCB singulation speed control	by hand
PCB singulation machine size	787x400x436mm
PCB singulation machine weight	30Kg

Model	CWV-1M720
Max. PCB singulation length	720mm
PCB singulation thickness	0.6-3.5mm
PCB singulation speed control	by hand
PCB singulation machine size	1027x400x436mm
PCB singulation machine weight	45kg
