Prototype PCB Drilling Routing Machine With High Speed Spindle
Prototype PCB Drilling Routing Machine With High Speed Spindle
Prototype PCB Drilling Routing Machine With High Speed Spindle
Prototype PCB Drilling Routing Machine With High Speed Spindle
Prototype PCB Drilling Routing Machine With High Speed Spindle
Prototype PCB Drilling Routing Machine With High Speed Spindle
Prototype PCB Drilling Routing Machine With High Speed Spindle
Prototype PCB Drilling Routing Machine With High Speed Spindle
Prototype PCB Drilling Routing Machine With High Speed Spindle
Prototype PCB Drilling Routing Machine With High Speed Spindle
Specifications
Place of Origin :
dongguang china
Brand Name :
SMTfly
Certification :
CE ISO9001
Model Number :
CW-F01
guarantee :
1 year
Power(W) :
400
axis precision :
0.001mm
precision of cutting :
0.01mm
MOQ :
1 set
Packaging Details :
each set be packed in plywood case
Delivery Time :
1-3 days after payment confirm
Payment Terms :
TT in advance
Supply Ability :
300 set/month
Description

Prototype PCB Drilling Routing Machine With High Speed Spindle

Clients feedback

Prototype PCB Drilling Routing Machine With High Speed Spindle

Prototype PCB Drilling Routing Machine With High Speed Spindle

CW-F01 profile:

CW-F01 automatic visual cutting machine is the latest designed high-tech product of a new generation, with (Machine Vision)automatic visual identification and correction function, applied by high-accuracy Panasonic servo drive system to realize quick and precise positioning, rendering accuracy at 0.001mm maximum to ensure the high quality of the cutting and high productivity.

Prototype PCB Drilling Routing Machine With High Speed Spindle

Software:

Control system

Windows XP Professional (Service3,v.3244)

Operation GUI

Chinese Windows XP

Program edit

Inline

Vision system

CCD AOTU offset

Control system

F 1.0.2 version

Hardware:

CCD

Sony 520 line industrial cameras

LENS

Computar EX2C

Screw

TBI Precision ground ball screw imports

Guide

HIWIN widening Imported linear guide rail

MOTOR

JiaBao LCF Series

I/O CONTRONL CARD

HFC PCI-9074

DRIVER CONTRONL CARD

HFC PCI-9074

I/O CARD

PCI-9074-64pcs/-38pcs

Static cleanup

STATIC-ST401A Series

Computer

RMC-8401/6113LP4/300ATX/8651VNA/P4 2.8G 2CPU(S)/1G DDR/80G

Machine interface

AOC LCD17",Logitech mouse

Performance Parameters

Overall

Dimensions(W*D*H)

1220mm*1450mm*1420mm

Weight

550KG

Height offset

60~110mm

Manipulator

Motor type

JiaBao series

Positioning repeatability

0.001mm

Axis working area(max)

680mm*360mm*50mm

Work station

Work station

standard,specialization

PCB loading/unloading

manual

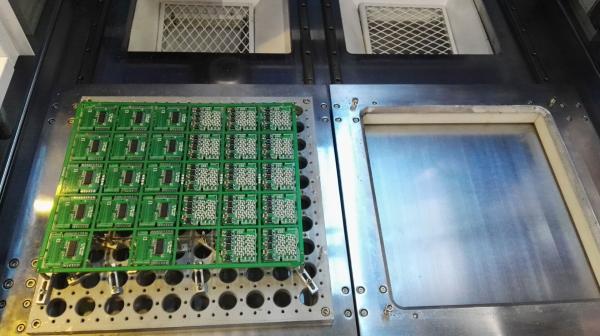

PCB size (max)

322mm*322mm

PCB thick (max)

5mm

Fixturing

Rigidity fixturing

standard

Fixturing fixation

machinery

Spindle Motor

Power

400W

Spindle

50000rpm/min

Protect

self/wind cooling

Change cutter

Specialization

Routing capability

Cutting speed(max.)

100mm/s

Driving speed(max.)

3000mm/s

Precision of cutting

0.01mm

Vacuum System

Vacuum power

2.2KW AC 380V

Vacuum plumb

Utilities

Power

2.2KW AC380V

Air supply

2~5KG/cm2

Why us

1. Engineers available to service machinery oversea.

Engineers are available to be sent to freign countries to do machinery training and offer technical support.

2. One year warranty for the machines except accessories.

Robust frame construction and Japanese steel blades obtained good appraise and recognized by and oversea clients. We offer parts for replacement under warranty free of charge, clients only need to bear freight charge.

3..Effective customer service.

All of us together are stronger and wiser than any one of us individually. To succeed, we must assume responsibility, cooperate with fellow associates and withdepartments, effectively comminicate with one another, foster enthusiam and participate in decision-making. To be seay reachable by customers and provide prompt replies to solve their problems and create value for customers

4. Mature technique & forerunner to process makes high quality machinery.

As largest manufactory in South China, we have 12 years experience on PCB separator machines and soldering machines. pcb router machine

Our R&D team continuously upgrade the existing machines to meet the market development trend

Clients from different business line

Prototype PCB Drilling Routing Machine With High Speed Spindle

Prototype PCB Drilling Routing Machine With High Speed Spindle

Prototype PCB Drilling Routing Machine With High Speed Spindle
