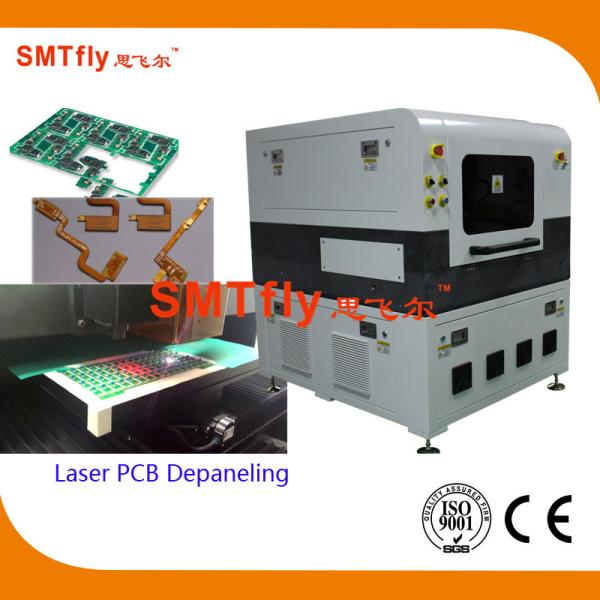

High Accuracy FPC / Rigid - Flex PCB Laser Depaneling Machine 10W / 12W
High Accuracy FPC / Rigid - Flex PCB Laser Depaneling Machine 10W / 12W
High Accuracy FPC / Rigid - Flex PCB Laser Depaneling Machine 10W / 12W
High Accuracy FPC / Rigid - Flex PCB Laser Depaneling Machine 10W / 12W
Specifications
Brand Name :
ChuangWei
Model Number :
CWVC-5L
Certification :
CE
Place of Origin :
China
MOQ :
1 Set
Delivery Time :
15 days
Packaging Details :
plywood case
Price :
Negotiable
Colour :
White
PCB Material :
FR4, FPC
Laser Source :
Optowave UV
Name :
PCB Laser Depaneling Machine
Description

High Accuracy FPC / Rigid - Flex PCB Laser Depaneling Machine 10W / 12W

Cutting Application

FPC and some relative materials;

FPC/PCB/ Rigid-Flex PCB cutting, Camera module cutting;

Specification

Laser Q-Switched diode-pumped all solid-state UV laser
Laser Wavelength 355nm
Laser Power 10W/12W/15W/17W@30KHz
Positioning Precision of Worktable of Linear Motor ±2μm
Repetition Precision of Worktable of Linear Motor ±1μm
Effective Working Field 460mmX460mm(Customizable)
Laser Scanning Speed 2500mm/s (max)
Galvanometer Working Field Per One Process 40mmх40mm

Advantages:

  • Auto vision positioning
  • Cost saving – no consumables and die wear
  • Able to cut odd, complex and micro shape section out of PCBs
  • No mechanical stress on product
  • Quick model change turnaround time
  • Excellent cut finish

If you're interested in it,welcome to contact and visit us:

WhatsApp/Wechat(Bunny): +86 136 8490 4990

www.pcb-soldering.com

Email:s5@smtfly.com

www.pcb-depanelizer.com
