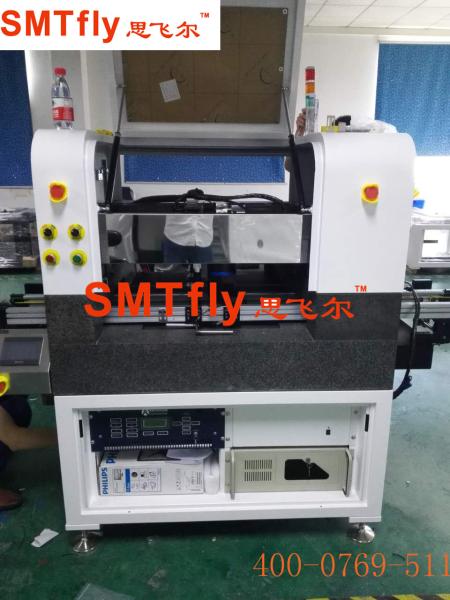

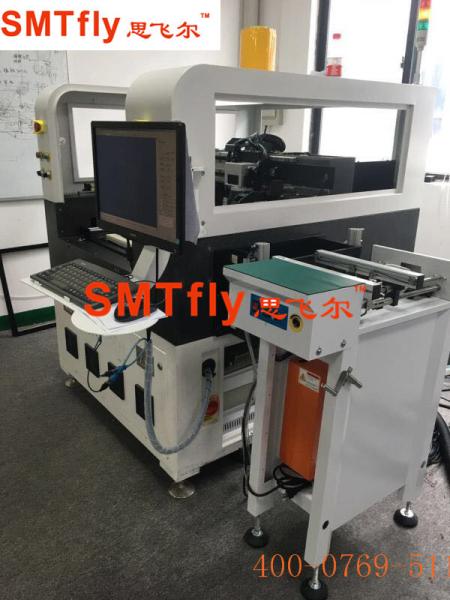

Flexible Circuit Board Laser Depaneling Machine Inline Laser Cutting Machine without Stress
Flexible Circuit Board Laser Depaneling Machine Inline Laser Cutting Machine without Stress
Flexible Circuit Board Laser Depaneling Machine Inline Laser Cutting Machine without Stress
Flexible Circuit Board Laser Depaneling Machine Inline Laser Cutting Machine without Stress
Specifications
Brand Name :
ChuangWei
Model Number :
CWVC-5L
Certification :
CE
Place of Origin :
China
MOQ :
1 Set
Delivery Time :
15 days
Packaging Details :
plywood case
Price :
Negotiable
Colour :
White
PCB Material :
FR4, FPC
Laser Source :
Optowave UV
Name :
Laser depaneling
Description

Inline Laser Cutting Machine for Flexible Circuit Boards without Stress

Specification

Laser Q-Switched diode-pumped all solid-state UV laser
Laser Wavelength 355nm
Laser Power 10W/12W/15W/18W@30KHz
Positioning Precision of Worktable of Linear Motor ±2μm
Repetition Precision of Worktable of Linear Motor ±1μm
Effective Working Field 400mmX300mm(Customizable)
Laser Scanning Speed 2500mm/s (max)
Galvanometer Working Field Per One Process 40mmх40mm

Cutting Application

FPC and some relative materials;

FPC/PCB/ Rigid-Flex PCB cutting, Camera module cutting

Features

More quick and easy, shorten the delivery time;

High quality ,no distortion,surface clean& uniformity;

Gathering the CNC tech,laser tech,software tech…High accuracy,High speed
