H60 4E Flute 9mm End Mill Nano Blue Solid Carbide End Milling Cutter
H60 4E Flute 9mm End Mill Nano Blue Solid Carbide End Milling Cutter
H60 4E Flute 9mm End Mill Nano Blue Solid Carbide End Milling Cutter
H60 4E Flute 9mm End Mill Nano Blue Solid Carbide End Milling Cutter
H60 4E Flute 9mm End Mill Nano Blue Solid Carbide End Milling Cutter
H60 4E Flute 9mm End Mill Nano Blue Solid Carbide End Milling Cutter
H60 4E Flute 9mm End Mill Nano Blue Solid Carbide End Milling Cutter
H60 4E Flute 9mm End Mill Nano Blue Solid Carbide End Milling Cutter
Specifications
Brand Name :
DTECH or OEM
Model Number :
H60-4E
Certification :
ISO9001/TS16949
Place of Origin :
China
MOQ :
100PCS
Price :
Negotiable
Payment Terms :
T/T, L/C
Supply Ability :
100000PCS per 30days
Delivery Time :
2 weeks after the prepayment
Packaging Details :
1PCS packed small Plastic box +Carton
Flute Length :
3.00mm-45.00mm
Flute Diameter :
3.00mm-20.00mm
Overall Length :
50mm-100mm
Shank Diameter :
4mm-20mm
Helix Angle :
45°
Type :
4 flute End Milling Cutter
Flute Number :
4
Application Material :
High hardness steel 55°-62°
Coating :
TiAlN,CrAlN,TAC,Diamond ,Nano Blue
Surface Finish :
Polished
Material :
Solid Carbide
Usage :
CNC machining
Application :
Milling
Suitable For :
High-speed machining
Description

H60 4E Flute End Milling Cutters For High Hardness Mold Steel 55°-62° Processing

H series cutting tools are widely used in plastic mold, stamping die, die casting die, injection mold and other mold industry machining use
1: suitable for high hardness mold steel and other materials HRC 55-65 degrees of heat treatment after steel processing
2: Adopt high performance TiS iN coating with high temperature resistance and wear resistance
3: Suitable for oil fog cooling, water cooling, oil cooling, air cooling and other cooling environment cutting use
H60 4E Flute 9mm End Mill Nano Blue Solid Carbide End Milling Cutter

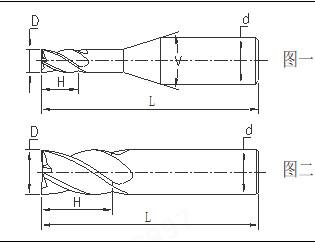

型号　Order NO 规格　　Dimensions (mm)
D H d L
H60-4E010S 1.0 3.0 4 50
H60-4E015S 1.5 4.0 4 50
H60-4E020S 2.0 6.0 4 50
H60-4E025S 2.5 8.0 4 50
H60-4E030S 3.0 8.0 4 50
H60-4E040S 4.0 11.0 4 50
H60-4E010 1.0 3.0 6 50
H60-4E015 1.5 4.0 6 50
H60-4E020 2.0 6.0 6 50
H60-4E025 2.5 8.0 6 50
H60-4E030 3.0 8.0 6 50
H60-4E035 3.5 10.0 6 50
H60-4E040 4.0 11.0 6 50
H60-4E045 4.5 11.0 6 50
H60-4E050 5.0 13.0 6 50
H60-4E055 5.5 16.0 6 50
H60-4E060 6.0 16.0 6 50
H60-4E070 7.0 20.0 8 60
H60-4E080 8.0 20.0 8 60
H60-4E090 9.0 22.0 10 75
H60-4E100 10.0 25.0 10 75
H60-4E110 11.0 26.0 12 75
H60-4E120 12.0 30.0 12 75
H60-4E140 14.0 32.0 14 75
H60-4E160 16.0 45.0 16 100
H60-4E180 18.0 45.0 18 100
H60-4E200 20.0 45.0 20 100
