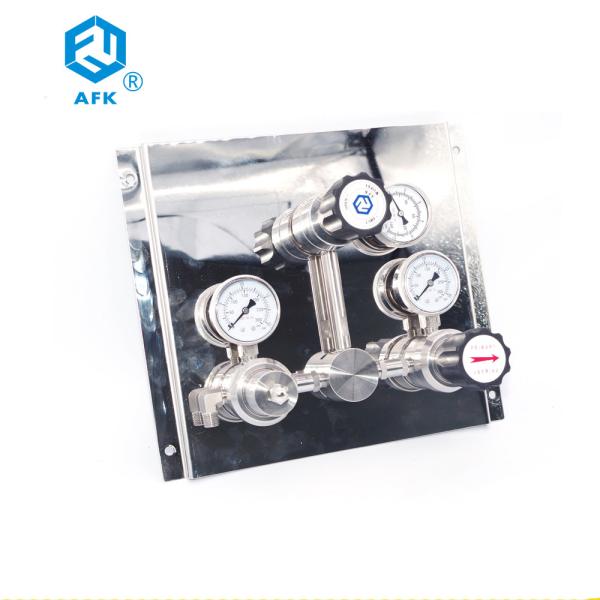

Stainless Steel Automatic Switchover Manifold , High Pressure Gas Control Panel
Stainless Steel Automatic Switchover Manifold , High Pressure Gas Control Panel
Specifications
Place of Origin :
Guangdong, China (Mainland)
Brand Name :
AFK
Model Number :
R1100
Supply Ability :
10000 Set/Sets per Week
Packaging Details :
Export packing
MOQ :
>=1 Sets
Price :
Negotiable
Certification :
CE
Max inlet pressure :
3000 psig
Outlet pressure range :
0~25, 0~50, 0~100, 0~200 psig
Working temperature :
-40° F ~+165° F(-40°C+74°C)
Cv :
0.06
Valve seat :
PTFE
Body material :
316L
Diaphragms :
316L
Port :
SHENZHEN
Description

Product Application

R1100 Series semi-automatic switch device applied two pipe lines supply, that is main cylinder supply set and spare cylinder set. The device makes a stable output by using two-stage regulators.

Main Features

1) Used R11 Series Pressure reducing regulator
2) Metal-to-metal diaphragm seal
3) Inlet fitting with check valve
4) Wall mounting

5) With ball valve or diaphragm valve

6)Pressure: 3000psi

Typical applications

1) Laboratory

2) Gas Chromatography

3) Gas Laser

4)Tested instrumentation

Detailed Images

Main Features

Name: R1100 Pressure Regulator
Brand: AFK
Original: China
The device makes a stable output by using two-stage regulators.

Material List
Tenchnical Data
Body
316L, brass
Max inlet pressure
3000 psig
Stem
316L
Outlet pressure
0~25, 0~50, 0~100, 0~200 psig
Diaphragm
316L
Item
Wall mounting
Filter mesh
316L (10μm)
Working temperature
-40°F-+165°F(-40°C-+74°C)
Valve seat
PCTFE
Inlet
fitted with check valve
Spring loaded
316L
Cv
0.06

Packaging
Size
Decided on the product
Weight
6KG
Packaging Details
Export packing or according customer's request.

Ordering Information

R1100 L 150
Name of Series Body Material Pressure Contol Range
R1100 Series L:316L 25:0~25psig
B:Brass 50:0~50psig
100:0~100psig
200:0~200psig

FAQ

Q: Are you trading company or manufacturer?
A: We are original manufacturer. We can do OEM/ODM business.Our company mainly produces Pressure Regulator.

Q: How long is your delivery time?
A: Group buying delivery time: 30-60 days; General delivery time: 20 days.

Q: What is your terms of payment?
A: T/T 30% as deposit, and 70% before delivery.

Q: What is the warranty ?
A: The free warranty is one year from the day of Commissioning qualified.If there is any fault for our products within the free warranty period, we will repair it and change the fault assembly for free.

Q: How can I get your catalogue and price list?

A: Please let us know your email or contact us from website directly for our catalogue and price list;

Q: Can I negotiate the prices?

A: Yes, we may consider discounts for multiple container load of mixed goods.

Q: How much will the shipping charges be?

A: It depends on the size of your shipment and the method of shipping.

We will offer the charge to you as you requested.
