2.5Mpa Brass Pressure Regulator Outlet Connection 1/4 NPT CE Certification
2.5Mpa Brass Pressure Regulator Outlet Connection 1/4 NPT CE Certification
2.5Mpa Brass Pressure Regulator Outlet Connection 1/4 NPT CE Certification
2.5Mpa Brass Pressure Regulator Outlet Connection 1/4 NPT CE Certification
2.5Mpa Brass Pressure Regulator Outlet Connection 1/4 NPT CE Certification
2.5Mpa Brass Pressure Regulator Outlet Connection 1/4 NPT CE Certification
Specifications
Place of Origin :
Guangdong, China (Mainland)
Brand Name :
AFK
Model Number :
R57L
Supply Ability :
10000 Set/Sets per Week
Packaging Details :
Export packing
MOQ :
1 - 9 Sets
Price :
Negotiable
Max inlet pressure :
2.5 Mpa
Inlet connection :
1/4" NPT (F)
Outlet connection :
1/4" NPT (F)
Material :
Brass
Pressure gauge :
2"
Port :
SHENZHEN
Description
Product Description

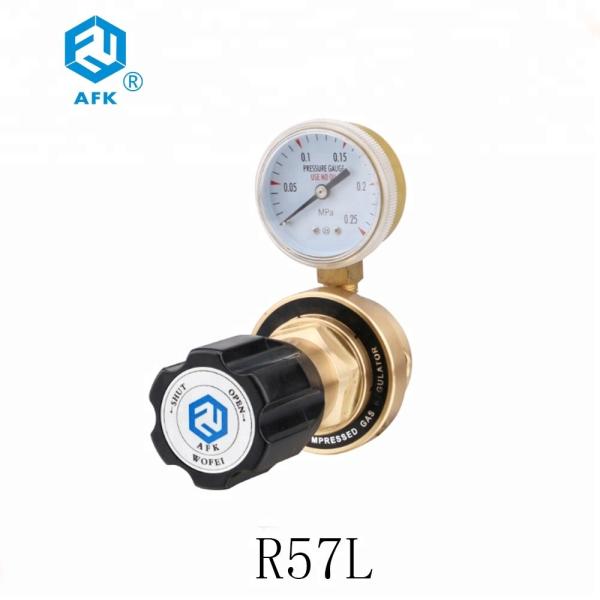

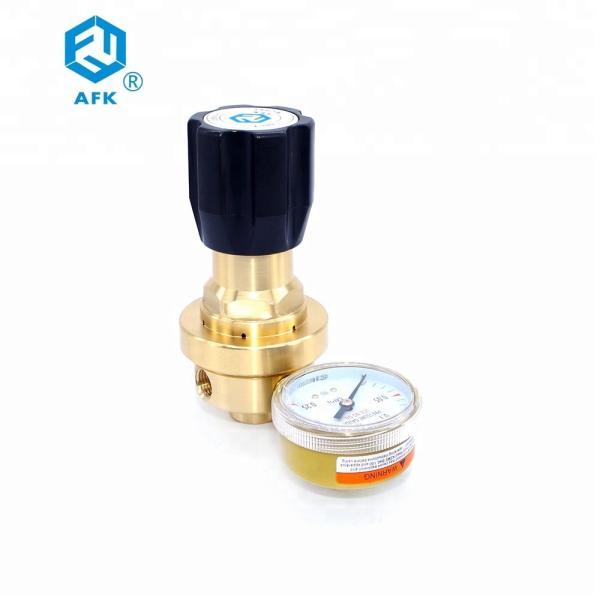

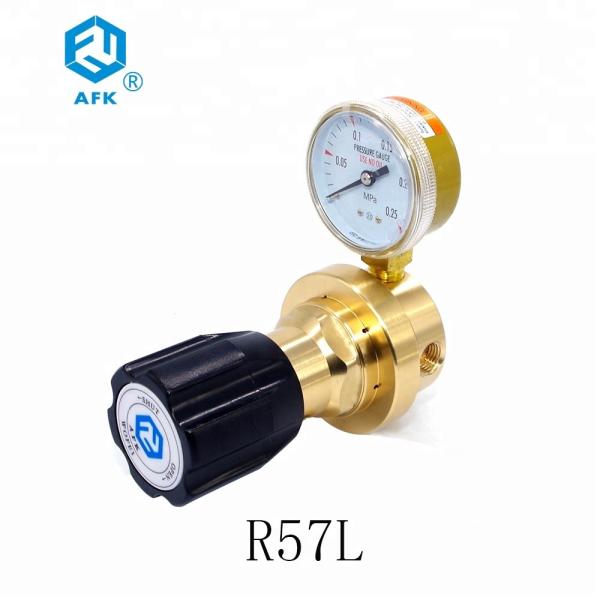

Single Stage Low Pressure Brass Natural Gas Pressure Regulator

R57L Series single stage gas pressure regulator, Widely used in small and medium flow gas distribution system, suitable for pressure and flow requirements of the occasion.
1)Model: R57L Gas Pressure Regulator
2)Outlet pressure: 2.5 Mpa
3)Gauge: One
4)Inlet connection: 1/4" NPT (F), M16-1.5RH(M)
5)Outlet connection: 1/4" NPT (F), M16-1.5RH(M)
Detailed Images
Feature highlight
1
Single stage pressure regulator
2
2" Diaphragm
3
2" pressure gauge
4
Max. inlet pressure: 2.5 Mpa
5
Weight: 1.0 KG
Main component material
Body
Brass
Bonnet
Brass
Diaphragm
Neoprene
Filter
Brass
Medium
Oxygen, Acetylene, Natural gas, Propane, Argon, Nitrogen, Air, Helium

Product Selection

Model

Application Gas

Max.Inlet Pressure(MPa)

Outlet Pressure(MPa)

Inlet Gauge(Mpa)

Outlet Gauge(Mpa)

Inlet thread

Outlet thread
R57LX-15 O2 2.5 0.03~0.85 N/A 1.6 1/4"NPT(F) 1/4"NPT(F)
R57LX-15-N 2.5 0.03~0.85 N/A 1.6 M16-1.5RH(M) M16-1.5RH(M)
R57LX-17-N 2.5 0.03~1.7 N/A 2.5 1/4"NPT(F) 1/4"NPT(F)
R57LY-15 acetylene 2.5 0.01~0.1 N/A 0.25 1/4"NPT(F) 1/4"NPT(F)
R57LY-15-N 2.5 0.01~0.1 N/A 0.25 M16-1.5RH(M) M16-1.5RH(M)
R57LF-80 Propane, natural gas 2.5 0.02~0.56 N/A 1 1/4"NPT(F) 1/4"NPT(F)
R57LF-80-N 2.5 0.02~0.56 N/A 1 M16-1.5RH(M) M16-1.5RH(M)
R57LIN-15 Argon, helium, nitrogen 2.5 0.03~0.85 N/A 1.6 1/4"NPT(F) 1/4"NPT(F)
R57LIN-17 2.5 0.03~1.7 N/A 2.5 1/4"NPT(F) 1/4"NPT(F)
R57LQ-15 Air 2.5 0.03~0.85 N/A 1.6 1/4"NPT(F) 1/4"NPT(F)
R57-LQ-17 2.5 0.03~1.7 N/A 2.5 1/4"NPT(F) 1/4"NPT(F)
R57LH-08 H2 2.5 0.02~0.85 N/A 1 1/4"NPT(F) 1/4"NPT(F)
R57-LH-15 2.5 0.03~0.85 N/A 1.6 1/4"NPT(F) 1/4"NPT(F)
R57-LH-17 2.5 0.03~1.7 N/A 2.5 1/4"NPT(F) 1/4"NPT(F)
R57-LC-15 CO2 2.5 0.03~0.85 N/A 1.6 1/4"NPT(F) 1/4"NPT(F)
R57-LC-17 2.5 0.03~1.7 N/A 2.5 1/4"NPT(F) 1/4"NPT(F)

FAQ

Q: Are you trading company or manufacturer?
A: We are original manufacturer. We can do OEM/ODM business.Our company mainly produces Pressure Regulator.

Q: How long is your delivery time?
A: Group buying delivery time: 30-60 days; General delivery time: 20 days.

Q: What is your terms of payment?
A: T/T 30% as deposit, and 70% before delivery.

Q: What is the warranty ?
A: The free warranty is one year from the day of Commissioning qualified.If there is any fault for our products within the free warranty period, we will repair it and change the fault assembly for free.
