SS316L Piston type Nitrogen Oxygen natural gas pressure regulator
SS316L Piston type Nitrogen Oxygen natural gas pressure regulator
SS316L Piston type Nitrogen Oxygen natural gas pressure regulator
SS316L Piston type Nitrogen Oxygen natural gas pressure regulator
SS316L Piston type Nitrogen Oxygen natural gas pressure regulator
SS316L Piston type Nitrogen Oxygen natural gas pressure regulator
SS316L Piston type Nitrogen Oxygen natural gas pressure regulator
SS316L Piston type Nitrogen Oxygen natural gas pressure regulator
SS316L Piston type Nitrogen Oxygen natural gas pressure regulator
SS316L Piston type Nitrogen Oxygen natural gas pressure regulator
SS316L Piston type Nitrogen Oxygen natural gas pressure regulator
SS316L Piston type Nitrogen Oxygen natural gas pressure regulator
SS316L Piston type Nitrogen Oxygen natural gas pressure regulator
SS316L Piston type Nitrogen Oxygen natural gas pressure regulator
SS316L Piston type Nitrogen Oxygen natural gas pressure regulator
SS316L Piston type Nitrogen Oxygen natural gas pressure regulator
SS316L Piston type Nitrogen Oxygen natural gas pressure regulator
SS316L Piston type Nitrogen Oxygen natural gas pressure regulator
SS316L Piston type Nitrogen Oxygen natural gas pressure regulator
SS316L Piston type Nitrogen Oxygen natural gas pressure regulator
Specifications
Place of Origin :
Guangdong, China (Mainland)
Brand Name :
AFK
Model Number :
R41
Supply Ability :
10000 Set/Sets per Week
Packaging Details :
Export packing
MOQ :
1 - 9 Sets
Price :
Negotiable
Certification :
CE
Structure :
Piston
Max inlet pressure :
3000, 6000 psig
Outlet pressure range :
0~250, 0~500, 0~1500 psig
Proof pressure :
1.5 times of maximum rated presure
Working temperature :
-10° F ~+165° F(-23°C+74°C)
Leakage rate :
bubble-tight testing
Cv :
0.06
Valve seat :
FCTFE
Body material :
Ss316L
Strainer :
316L(10 μm)
Port :
SHENZHEN
Description

Product Description

Product Application

R41 Series stainless steel pressure reducers, piston pressure-reducing construction, stable output pressure, mainly applied in high input pressure high pure gas, standard gas, corrosive gas and so on.
Technical Data

1)Max inlet pressure: 3000, 6000 psig

2)Outlet pressure: 0~250, 0~500, 0~1500, 0~3000 psig

3)Proof pressure: 1.5 times of maximum rated pressure

4)Working temperature: -10°F-+165°F(-23°C-+74°C)

5)Leakage rate: bubble-tight testing

6)CV: 0.06

7)Body Thread: 1/4" NPT ( F )

8)Body/Bonnet/Stem/Spring loaded: 316L

9)Filter mesh: 316L (10μm)

Main Features

1) Piston pressure- reducing Structure.

2) Body Thread : 1/4“ NPT ( F )

3) Filter element installed internally

4) Panel mountable or wall mounted

Typical applications

1) Laboratory

2) Gas analysis

3) Process contral

4) Gas bus-bar

5) Testing equipment

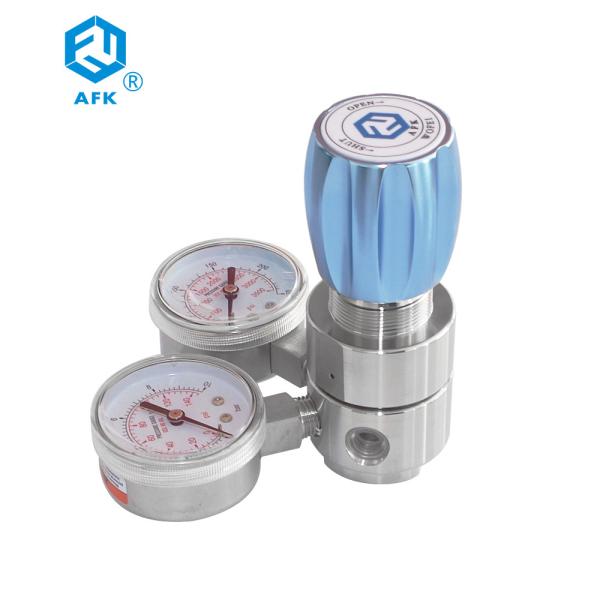

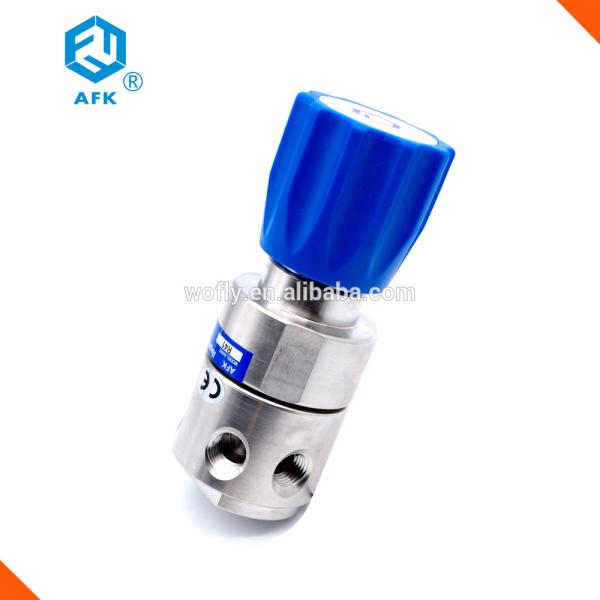

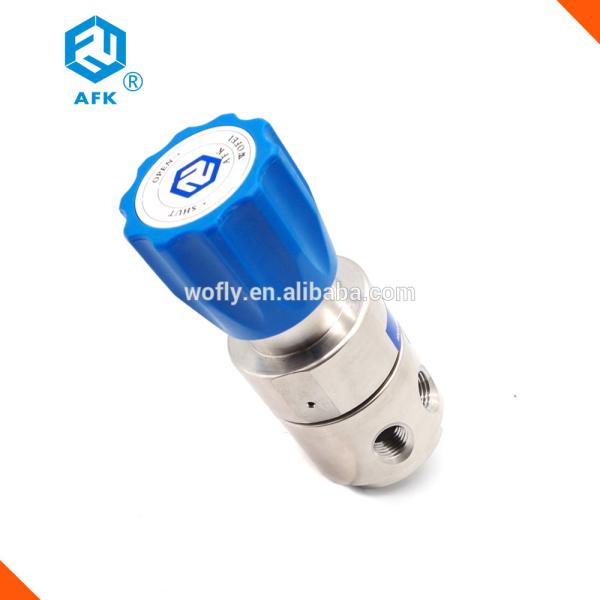

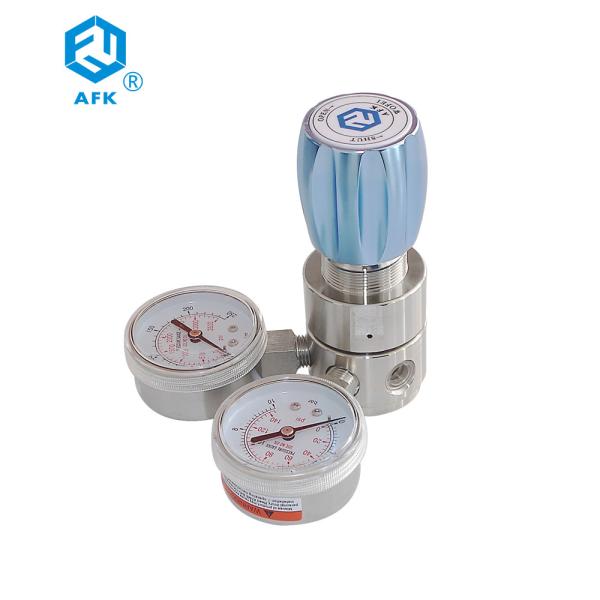

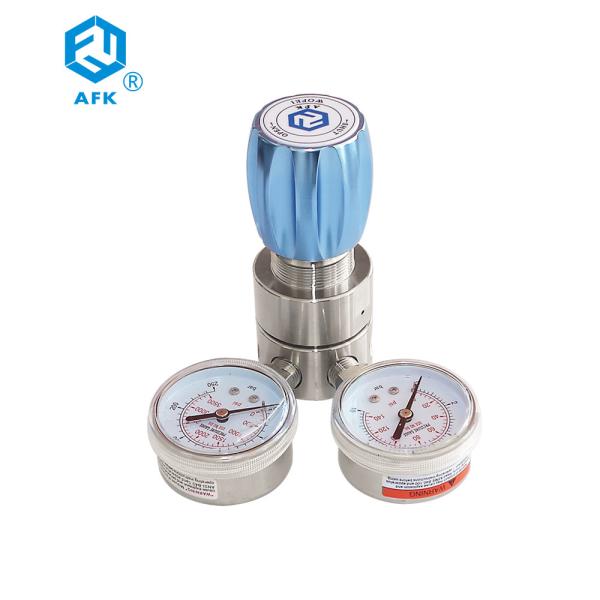

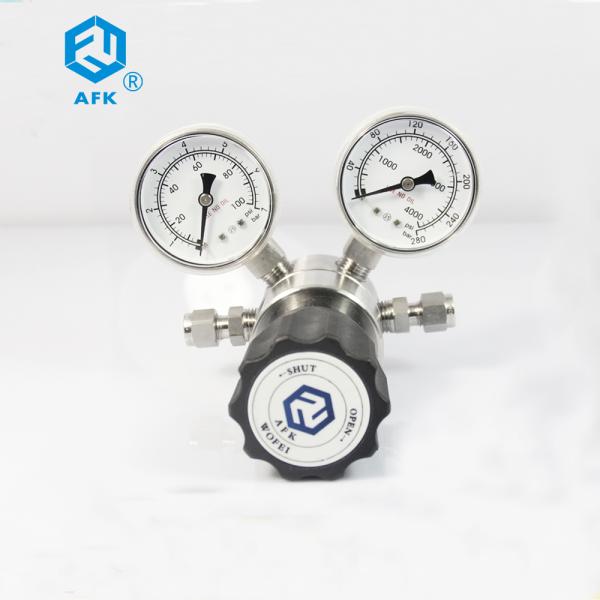

Detailed Images
SS316L Piston type Nitrogen Oxygen natural gas pressure regulator
Ordering Information
R41 L B B D G 00 00 P
Item Body Materia Body Hole Inlet Pressure Outlet Pressure Pressure Gauge Inlet Size Outlet Size Options
R41 L:316 A B:6000psig D:0~3000psig G:MPa gauge 00:1/4″NPT(F) 00:1/4″NPT(F) P:Panel mounting
B:Brass B D:3000psig E:0~1500psig P:Psig/bar gauge 00:1/4″NPT(M) 00:1/4″NPT(M)
D F:0~500psig W:No gauge 10:1/8″OD 10:1/8″OD
G G:0~250psig 11:1/4″OD 11:1/4″OD
J 12:3/8″OD 12:3/8″OD
M 15:6mm”OD 15:6mm”OD
16:8mm”OD 16:8mm”OD

SS316L Piston type Nitrogen Oxygen natural gas pressure regulator

SS316L Piston type Nitrogen Oxygen natural gas pressure regulator

FAQ

Q1. What about the lead time?
A:Sample needs 3-5 days, mass production time needs 1-2 weeks for order quantity more than

Q2. Do you have any MOQ limit ?
A: Low MOQ 1 pic.

Q3. How do you ship the goods and how long does it take to arrive?
A: We usually ship by DHL, UPS, FedEx or TNT. It usually takes 5-7 days. Airline and sea shipping also optional.

Q4. How to proceed an order ?
A: Firstly let us know your requirements or application.
Secondly We quote according to your requirements or our suggestions.
Thirdly customer confirms the samples and places deposit for formal order.
Fourthly We arrange the production.
