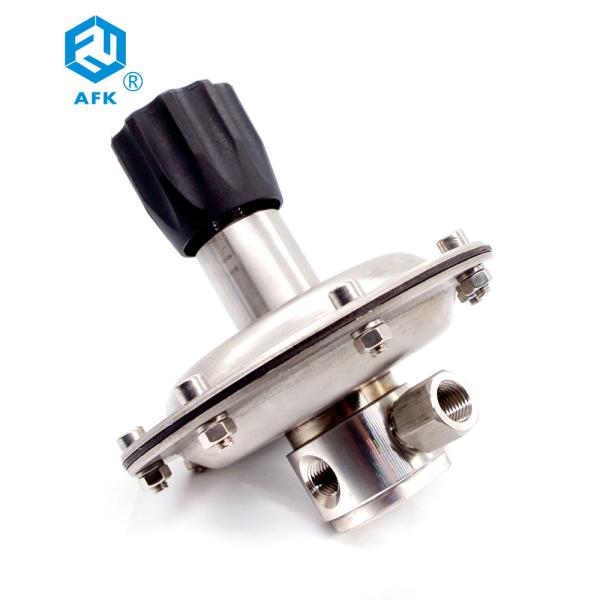

Low pressure 1/4NPT 0.3atm Stainless Steel O2 Micro Pressure Regulator
Low pressure 1/4NPT 0.3atm Stainless Steel O2 Micro Pressure Regulator
Low pressure 1/4NPT 0.3atm Stainless Steel O2 Micro Pressure Regulator
Low pressure 1/4NPT 0.3atm Stainless Steel O2 Micro Pressure Regulator
Low pressure 1/4NPT 0.3atm Stainless Steel O2 Micro Pressure Regulator
Low pressure 1/4NPT 0.3atm Stainless Steel O2 Micro Pressure Regulator
Low pressure 1/4NPT 0.3atm Stainless Steel O2 Micro Pressure Regulator
Low pressure 1/4NPT 0.3atm Stainless Steel O2 Micro Pressure Regulator
Low pressure 1/4NPT 0.3atm Stainless Steel O2 Micro Pressure Regulator
Low pressure 1/4NPT 0.3atm Stainless Steel O2 Micro Pressure Regulator
Low pressure 1/4NPT 0.3atm Stainless Steel O2 Micro Pressure Regulator
Low pressure 1/4NPT 0.3atm Stainless Steel O2 Micro Pressure Regulator
Specifications
Place of Origin :
Guangdong, China (Mainland)
Brand Name :
AFK
Model Number :
RW14
Supply Ability :
2000 Piece/Pieces per Week
Packaging Details :
Each piece with a PP bag first, then put in a small box, outside is in carton.
MOQ :
1 - 9 Pieces
Price :
Negotiable
Certification :
CE
Material :
316L SS
Maximum inlet pressure :
50, 100PSI
output pressure :
0-10, 0-25, 0-50, 0-100Kpa
working temperature :
-23~+230 deg C
Applied gas :
medium flow gas and liquid
bonnet material :
ss316L
seat :
PCTFE
Spring :
ss316L
O-ring :
viton
strainer :
316L (um)
Port :
Shenzhen
Description
Technical parameters

RW14 Series Stainless Steel Micro pressure regulator, single stage diaphragm reducing pressure structure, Rubber diaphragm pressure transmission, designed for micro pressure, stable outlet pressure, applied to medium flow gas system and liquid.

Maximum Inlet Pressure
50, 100psig
Outlet Pressure Ranges
0-10, 0-25, 0-50, 0-100Kpa
Safety test pressure
1.5 times maximum inlet pressure
Operating Temperature
-40°F to 446°F / -40°c to 230°c
Leakage Rate Against Atmosphere
2*10-8atm cc/sec he
Cv value
1.1
Material of Parts
Body
ss316L
Bonnet
ss31L
Diaphragm
NBR, VITON
Strainer
316L(10mm)
Seat
PCTFE,PTEE, NBR
Spring
ss316L
Plunger valve core
ss316L
Detailed Image
Low pressure 1/4
Low pressure 1/4
Ordering Information
Low pressure 1/4
Series
Body material
Body Ports
Inlet pressure
Outlet pressure
Gauge
Inlet connection
Outlet connection
Options
RW14
L
B
D
G
G
00
00
P
L:316L
A
F:50psi
G:100Kpa
G:Kpa
00: 1/4"NPT F
00: 1/4"NPT F
P: panel
B:304
B
E:100psi
H:50Kpa
W: no
01:1/4"NPT M
01:1/4"NPT M
R: safety valve
D
G:200psi
K:25Kpa
02:3/8"NPT F
02:3/8"NPT F
G
L:10Kpa
03:3/8"NPT M
03:3/8"NPT M
J
04:1/2"NPT F
04:1/2"NPT F
M
06:3/4"NPT F
06:3/4"NPT F
08:1"NPT F
08:1"NPT F

Pls inform following information to us one you send inquiry to us such as RW14-L-A- B-F-G-G-00-00

Or kindly inform information as follows:
1. What type of gas is used?
2. What is inlet pressure?
3. What is outlet pressure?
4. How much is flow rate?
5. What material do you prefer? ss316L or nickel plated brass?
If you have special requests, pls let us know.
Cooperated brand
OEM order. Impriting Customer's logo on regulatr knob and pressure gauge face
Low pressure 1/4
