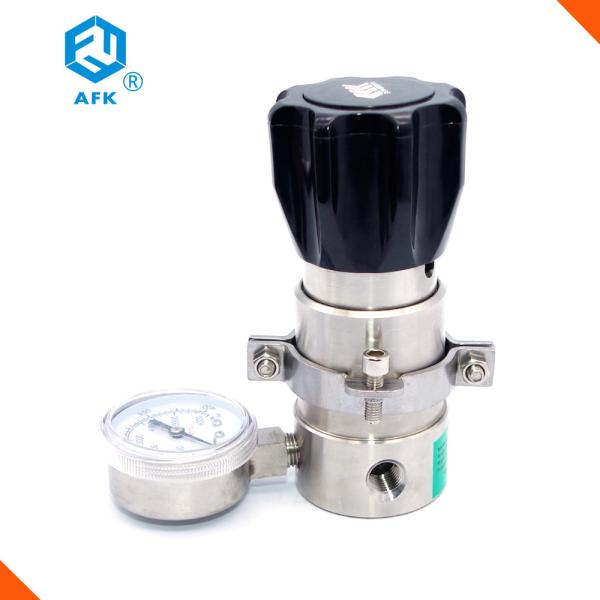

Stainless Steel 316L Back Pressure Control Valves for High Flow, Liquid or Gas Service
Stainless Steel 316L Back Pressure Control Valves for High Flow, Liquid or Gas Service
Stainless Steel 316L Back Pressure Control Valves for High Flow, Liquid or Gas Service
Stainless Steel 316L Back Pressure Control Valves for High Flow, Liquid or Gas Service
Stainless Steel 316L Back Pressure Control Valves for High Flow, Liquid or Gas Service
Stainless Steel 316L Back Pressure Control Valves for High Flow, Liquid or Gas Service
Specifications
Place of Origin :
Guangdong, China (Mainland)
Brand Name :
AFK
Model Number :
R72
Supply Ability :
10000 Set/Sets per Week
Packaging Details :
Export packing
MOQ :
>=1 Sets
Price :
Negotiable
Certification :
CE
Structure :
Piston-sensed Configuraton
Maximum inlet pressure :
6000 psig
Proof pressure :
1.5 times of maximum rated presure
Working temperature :
-40° F ~+165° F(-40°C+74°C)
Leakage rate :
2*10-8 atm cc/sec He
Cv :
0.15
Body material :
316L
Seat :
Vespel
Port :
SHENZHEN
Description

Main Features

Name: RW72 Back pressure regulator
Brand: AFK
Original: China
RW72 Series Back pressure Regulator is Piston-sensed configuration, applicable to high pressure gas or liquid applications.

Features

*Body: 316L

*Seat: Vespel

*Piston: 316L

*O-ring: Viton

Typical applications

*Chromatography

*Laboratories

*Petrochemical industry

*Power plant equipments

Features

* Piston-sensed Configuration
* Maximum inlet pressure: 6000psi
* Proof pressure: 1.5 times maximum inlet pressure
* Temperature Range: -40℉ to 160℉ (-40℃ to 74℃)
* Leak Rate: 2 X 10-8 atm. cc/sec He
* CV: 0.15

Stainless Steel 316L Back Pressure Control Valves for High Flow, Liquid or Gas Service
Stainless Steel 316L Back Pressure Control Valves for High Flow, Liquid or Gas Service
ORDERING INFORMATION
SERIES
BODY MATERIAL
BODY PORTS
INLET PRESSURE
GAUGES
INLET CONNECTION
OUTLET CONNECTION
RW72
L
A
D
G
02
02
L: 316L
B: brass
A
B
L: 0-500Psi
K: 0-800Psi
I: 10-1500Psi
H:15-2500Psi
G: 25-4000Psi
Q: 50-6000Psi
W: None
P: psi/bar
G: Mpa
01:1/4"NPT(F)
02:3/8"NPT(F)
04:1/2"NPT(F)
05:1/2"NPT(M)
12:3/8"LOK
13:1/2"LOK
01:1/4"NPT(F)
02:3/8"NPT(F)
04:1/2"NPT(F)
05:1/2"NPT(M)
12:3/8"LOK
13:1/2"LOK
