Thread Ends Back Pressure Regulating Valve For Ultra High Purity Gas 250 Psi
Thread Ends Back Pressure Regulating Valve For Ultra High Purity Gas 250 Psi
Specifications
Place of Origin :
Guangdong, China (Mainland)
Brand Name :
AFK
Model Number :
RW74
Supply Ability :
10000 Set/Sets per Week
Packaging Details :
Export packing
MOQ :
>=1 Sets
Price :
Negotiable
Certification :
CE
Structure :
Piston-sensed Configuraton
Maximum inlet pressure :
250 psi
Proof pressure :
1.5 times of maximum rated presure
Working temperature :
-40° F ~+165° F(-40°C+74°C)
Leakage rate :
2*10-8 atm cc/sec He
Cv :
5.2
Body material :
316L
Seat :
Neoprene
Port :
SHENZHEN
Description

Main Features

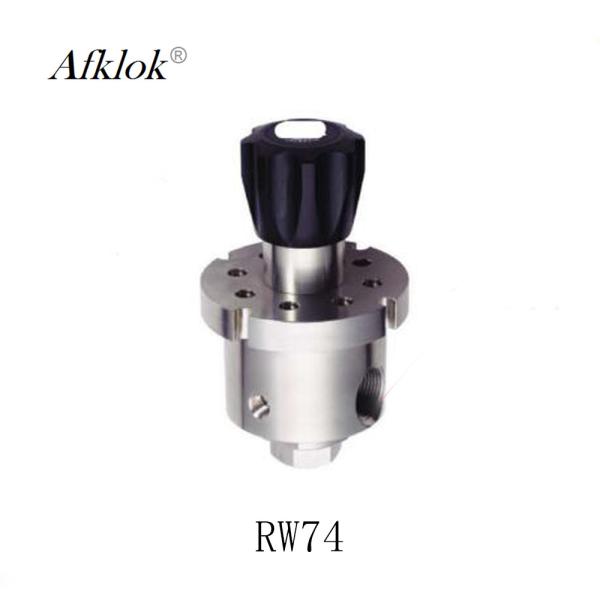

Name: RW74 Back pressure regulator
Brand: AFK
Original: China
RW74 Series Back pressure Regulator is a diaphragm-sensed single-stage "Industrial-style" regulator, designed for gas or liquid application where ultra high flow is desired. Available in nickel-plated brass and stainless steel.

Material

*Body: Brass, 316L

*Seat: Neoprene

*Diaphragm: Neoprene

Typical applications

*Chromatography

*Laboratories

*Petrochemical industry

*Power plant equipments

Features

*Single stage Configuration

*Pressure gauge/Safety valve port size: 1/4" NPT (F)

*Inlet/outlet port size: 1" NPT (F)

*2" Pressure gauge

*Proof pressure: 1.5 times maximum inlet pressure

*Temperature Range: -40℉ to 160℉ (-40℃ to 74℃)

*Leak Rate: 2 X 10-8 atm. cc/sec He

*Maximum CV: 5.2

Thread Ends Back Pressure Regulating Valve For Ultra High Purity Gas 250 Psi

ORDERING INFORMATION
SERIES
BODY MATERIAL
BODY PORTS
INLET PRESSURE
GAUGES
INLET CONNECTION
OUTLET CONNECTION
RW72
L
A
F
G
06
06
L: 316L
B: brass
A
B
L: 0-20Psi
K: 0-50Psi
I: 10-125Psi
H:0-200Psi
G: 0-250Psi
Q: 0-250Psi
W: None
P: psi/bar
G: Mpa
04: 1/2" NPT(F)
06: 3/4" NPT(F)
08: 1" NPT(F)
09: 1" NPT(F)
04: 1/2" NPT(F)
06: 3/4" NPT(F)
08: 1" NPT(F)
09: 1" NPT(F)
