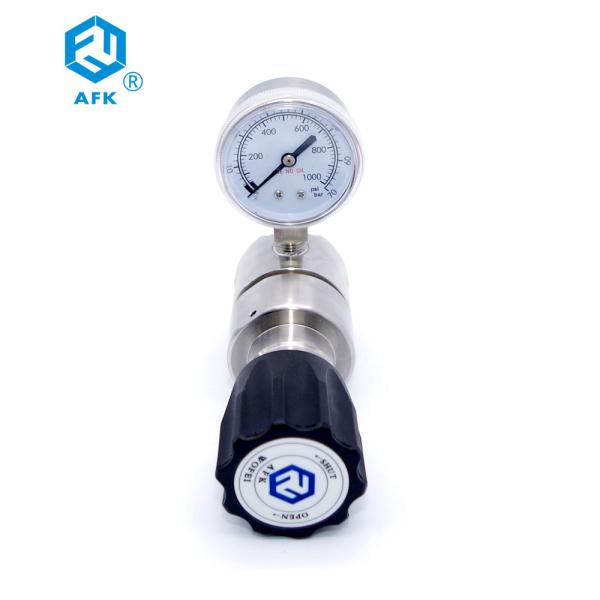

RW71 Stainless Steel Back Pressure Valve , Petrochemical Backflow Pressure Regulator
RW71 Stainless Steel Back Pressure Valve , Petrochemical Backflow Pressure Regulator
RW71 Stainless Steel Back Pressure Valve , Petrochemical Backflow Pressure Regulator
RW71 Stainless Steel Back Pressure Valve , Petrochemical Backflow Pressure Regulator
RW71 Stainless Steel Back Pressure Valve , Petrochemical Backflow Pressure Regulator
RW71 Stainless Steel Back Pressure Valve , Petrochemical Backflow Pressure Regulator
RW71 Stainless Steel Back Pressure Valve , Petrochemical Backflow Pressure Regulator
RW71 Stainless Steel Back Pressure Valve , Petrochemical Backflow Pressure Regulator
RW71 Stainless Steel Back Pressure Valve , Petrochemical Backflow Pressure Regulator
RW71 Stainless Steel Back Pressure Valve , Petrochemical Backflow Pressure Regulator
RW71 Stainless Steel Back Pressure Valve , Petrochemical Backflow Pressure Regulator
RW71 Stainless Steel Back Pressure Valve , Petrochemical Backflow Pressure Regulator
Specifications
Place of Origin :
Guangdong, China (Mainland)
Brand Name :
AR
Model Number :
BS-HH
Supply Ability :
2000 Set/Sets per Month
Packaging Details :
Each part is in PP bag first, then put in a small box, outside is in carton. Plastic pallet is availble upon request.
MOQ :
1 Set/Sets
Price :
Negotiable
Application :
General, high purity gas, standard gas, corrosive gas, liquid etc
Material :
Stainless Steel
Temperature of Media :
Normal Temperature
Pressure :
High Pressure
Power :
Manual
Media :
Gas
Port Size :
Optional
Structure :
Pressure Reducing
Max.adjust pressure :
300PSI
adjust pressure :
0-25, 0-50, 0-100, 0-250psi
Safety Test Pressure :
1.5times max. inlet pressure
Cv :
0.08
Body material :
ss316L, brass
mount :
panel mount or wall mount
warranty :
1 year
Standard or Nonstandard :
Standard
Port :
Shenzhen
Description

R71 Low Pressure Back Pressure valve.

1) Stainless Steel diaphragm, accuracy pressure control, applied to adjust upstream pressure.

2) Applicable to high purity gas, standard gas, corrosive gas, liquid and so on.

Operating Parameters
Max. adjust pressure
300PSI
adjustment pressure
0-25, 0-50, 0-100, 0-250psi
Safety test pressure
1.5times max. inlet pressure
Applicable temperature
-40℉to 466 ℉, -40℃ to 230℃
Leakage rate
2X10-8 atm cc/sec/he
Cv value
0.08
Materials
Body
ss316L, brass
Bonnet
ss316L, brass
Diaphragm
ss316L, C276
Seat
PCTFE, PTFE, Vespel
Spring
ss316L
Stem
ss316

Ordering Information
Series
Body material
Ports
Adjustment pressure
Inlet connection
Outlet connection
Options
RW71
L
A
G
00
00
P
L:316L
A
F:0-300psi
00:1/4"NPT F
00:1/4"NPT F
P:panel mount
B:brass
B
G:0-250psi
01: 1/4"NPT M
01: 1/4"NPT M
I:0-100psi
02:3/8"NPT F
02:3/8"NPT F
K:0-50psi
10:1/8"OD
10:1/8"OD
L:0-25psi
11:1/4"OD
11:1/4"OD
12:3/8"OD
12:3/8"OD
For inle and outlet connection, it can be customized as your request

Pls inform us order code e.g.:R71-L-A-F-00-00, or pls inform us following information:

1.What type of fluid is used?

2. What is inlet pressure?

3. Do you need gauge or not?

4.What type of inlet and outlet connection?

5.What materials do you need?
